Mindray Z6 Service Manual

5-14 Function and Performance Checking Method

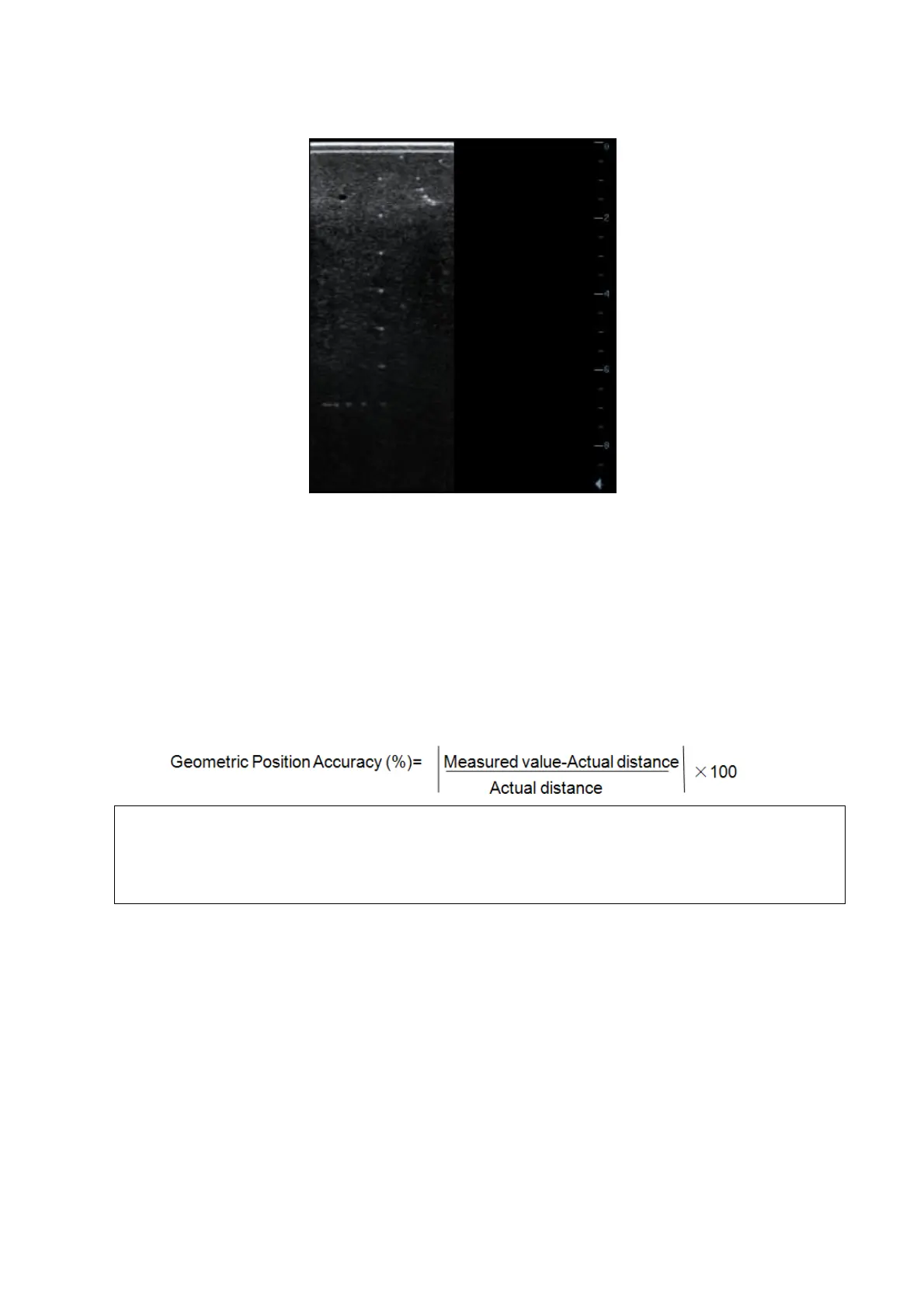

As shown in figure below.
5.5.2.3 Geometric positioning accuracy
 Longitudinal geometric positioning accuracy
Test Step:
1. Do adjustments as the way in testing the maximum depth.
2. Record the distance by 20mm each segment on the longitudinal targets line using the
measurement caliper;
3. Select the value with the greatest error (to 20mm), calculate the accuracy using the formula
below
NOTE:
1.
The measurement caliper should be positioned at the upper edge of the target,
not the middle nor the lower edge.
2.
The scanning plane should be vertical to the target line, that means the
scanning plane is parallel with the cross-section of the phantom
As shown in figure below.
