Minebea CC-Link CSD-892-73 User Manual

6
Installation & Wiring

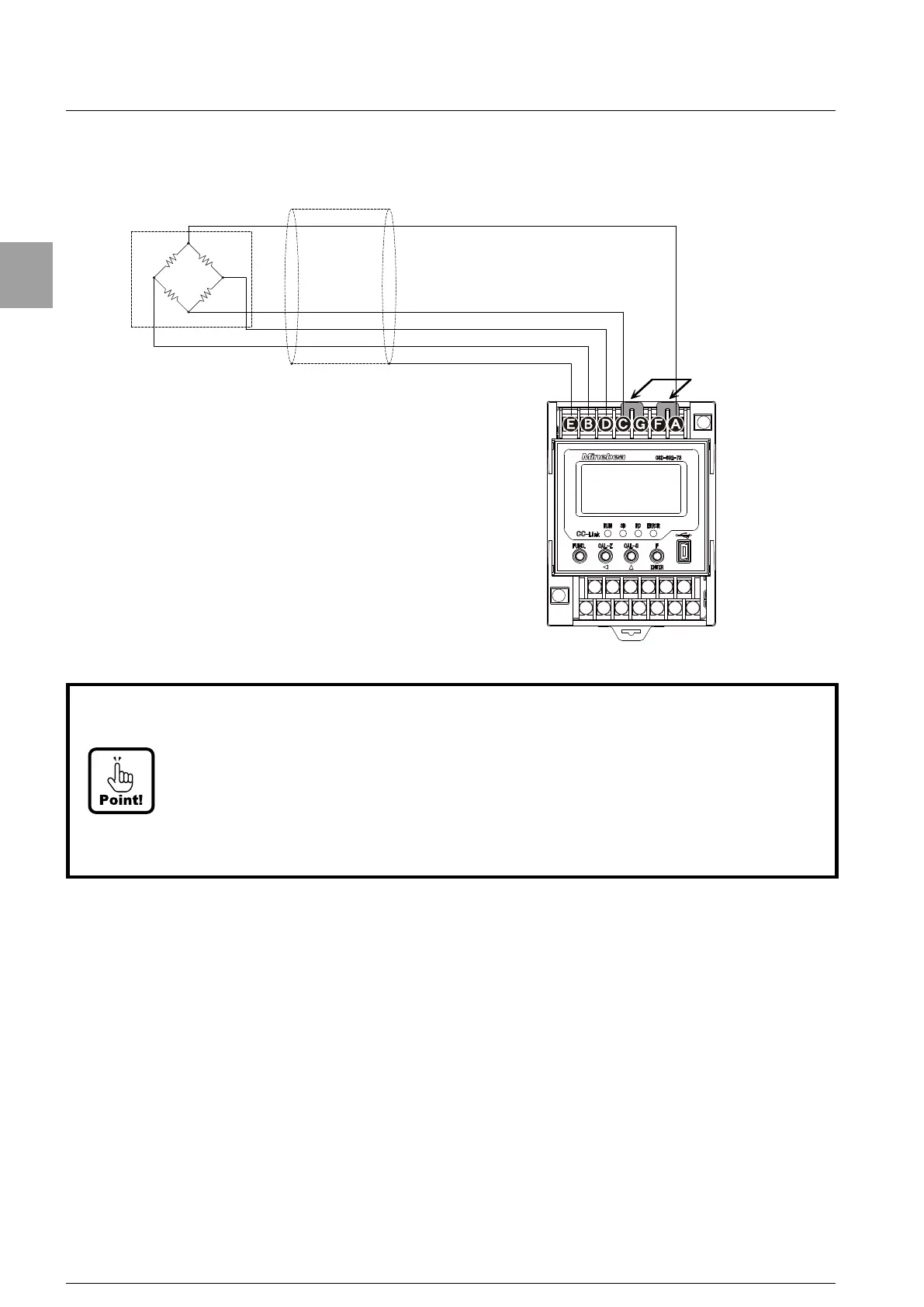

② Case 4-wires type connection cable
Short-bar attached.
-SIG
+SIG
+EXC
-EXC
Load cell
Load cell power supply + (Red)
Load cell power supply - (White)
Load cell input + (Green)
Load cell input - (Blue)
Shield (Yellow)
• When you use the 4-wires cable, shorten the load cell terminals A - F with the
attached short-bar. CSD-892-73 does not work in normal operation when the
terminal F and G is in the open status.
• When the length of CAB-502 (Minebea's standard cable) is more than 30 m totally,
there may have the case that the accuracy is out of warranty due to the resistance
of cable, the input voltage of the instr
ument will be decreased.
• When you use a zener barrier, connect by using above method with 4-wires cable.
