Setting of Function
6-7-3. Time width of ZERO tracking
The time width of ZERO tracking is set by C function CF-14.
Setting range : 00 ～ 99
：00
Unit : 0.1 s OFF：00
Ex. The data width to which the ZERO tracking is executed by C function CF-13 is set.
The data width of ZERO tracking for each set value [n] is obtained in the display
conversion by the following formula
[Data width of ZERO tracking] = [Set value(n) of CF-13] x 0.1 x [Scale interval]
When the set value of C function CF-13 is [10], and the scale interval is [D = 5], that
is
[Data width of ZERO tracking] = 10 x 0.1 x 5 D
= 5 D

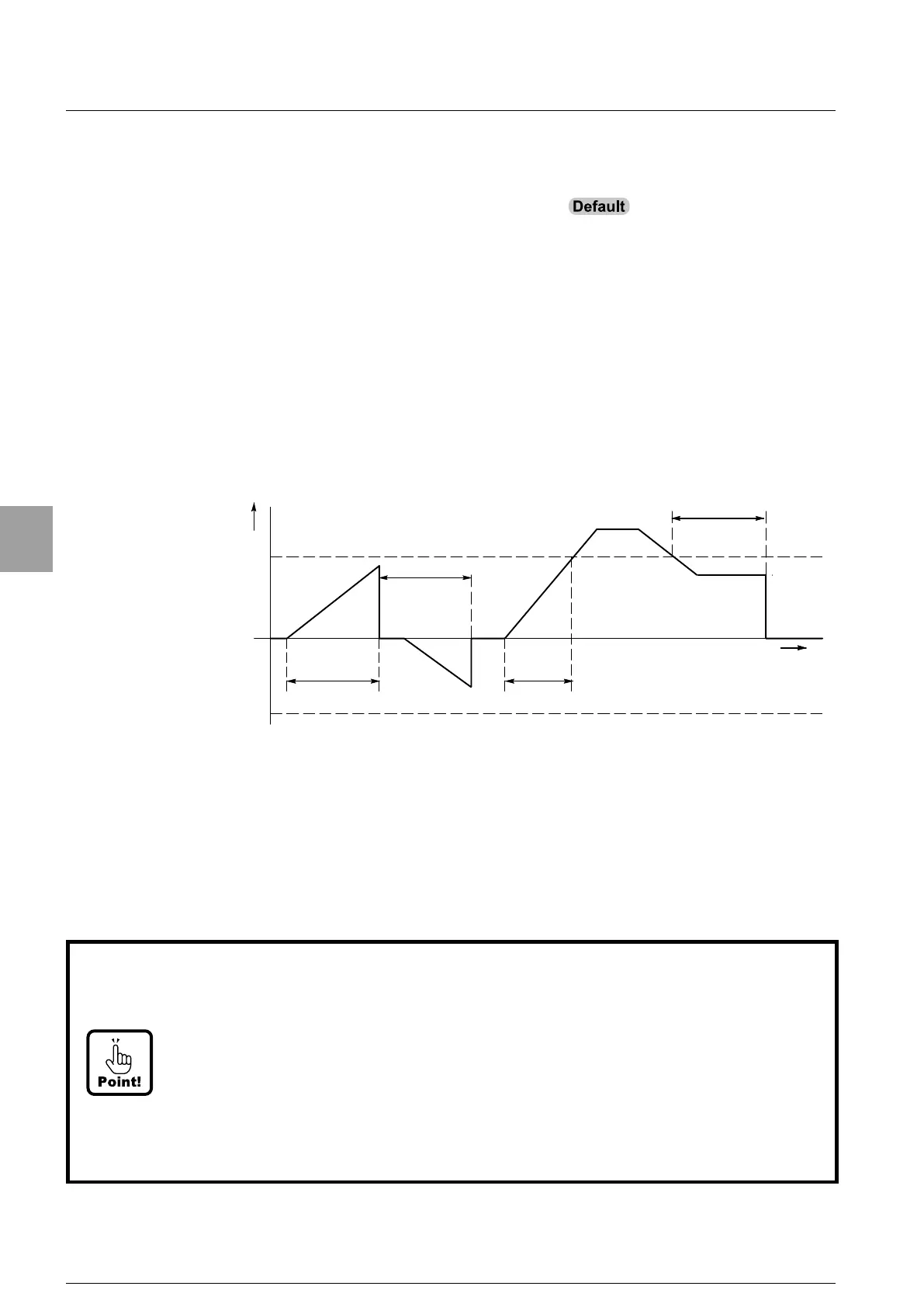

Setting of CF-14
Less than setting of CF-14
Setting of CF-14
Setting of CF-14
+ Data width of
ZERO tracking
- Data width of
ZERO tracking
ZERO
Display
• The ZERO tracking does not operate when either of setting C function CF-13 or
CF-14 is [0].
• Please do not use the ZERO tracking when the load vibrates gradually in the
vicinity of ZERO.
• Please note that the zero tracking might become effective even if an actual load
change is rapid when the load change becomes gradual by strength of the digital
filter and the stabilization filter.
• The ZERO trac
king will not be operated when the ZERO compensation is executed
for the effective range of portion by the ZERO tracking and ZERO set.
