Mitel MiVoice Business SMB Controller User Manual

Deployment Steps for the MiVoice Business Solution on SMB Controller
Installation Steps
1.
Log in to the Server Manager.
2.

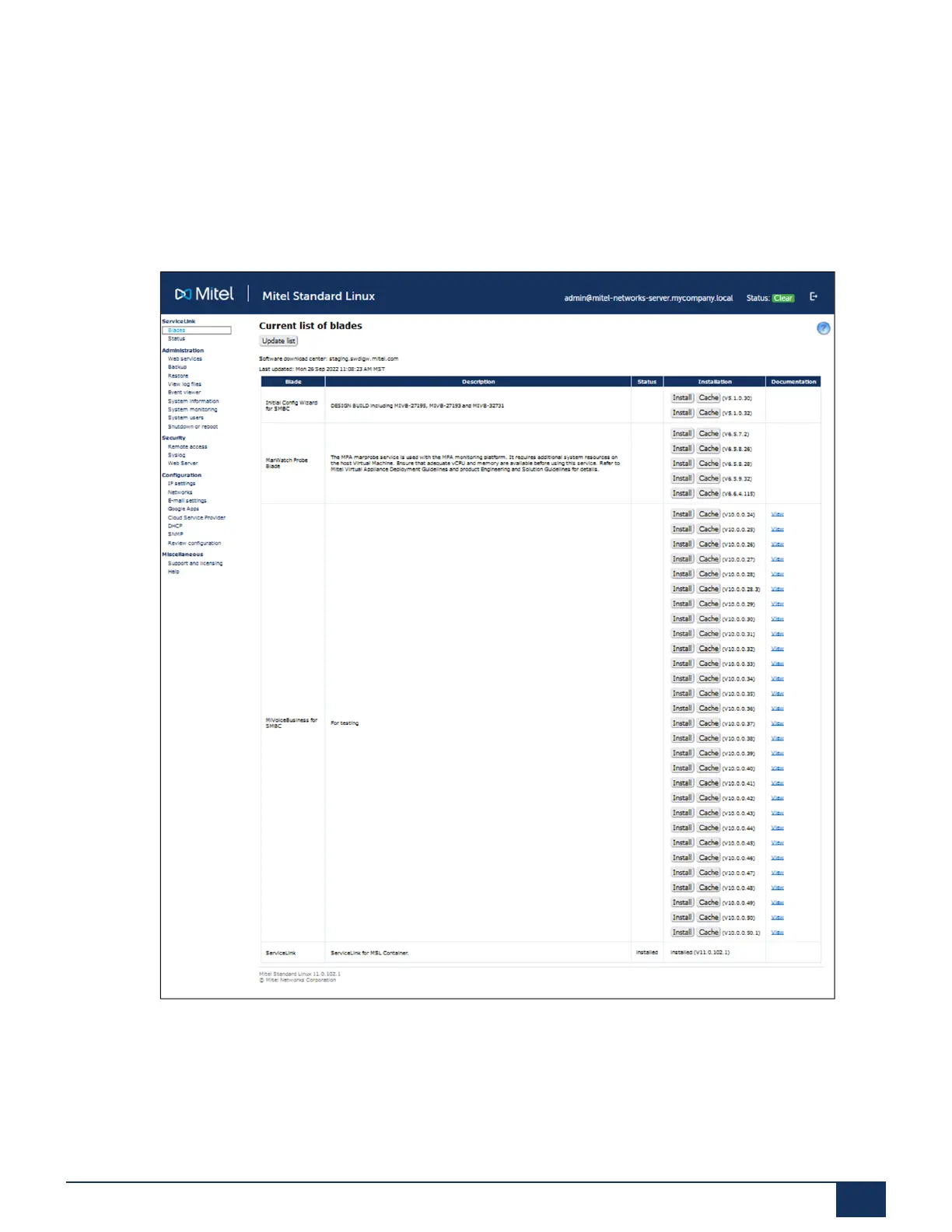

Select the Blades Panel.
3.
Click on the Update list button.
4.
Find the MiVoice Business Blade row and select Install.
5.
Once the blade is installed, login to ESM using https://<MSL IP Address>.
Document Version 1.0
System Manual for Mitel SMB Controller 118

Mitel MiVoice Business SMB Controller Specifications

General

Model	Mitel MiVoice Business SMB Controller
VoIP Support	Yes
Deployment	On-premises
Network Interfaces	Gigabit Ethernet
Humidity	10% to 90% non-condensing
Integration	Mitel applications and third-party applications
VoIP Protocols	SIP, H.323
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	0°C to 40°C
Supported Users	Up to 250 users
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
