6.5 For Use in Remote I/O Network (Q66AD-DG)
6.5.2 Programming example without using the utility package
6
PROGRAMMING

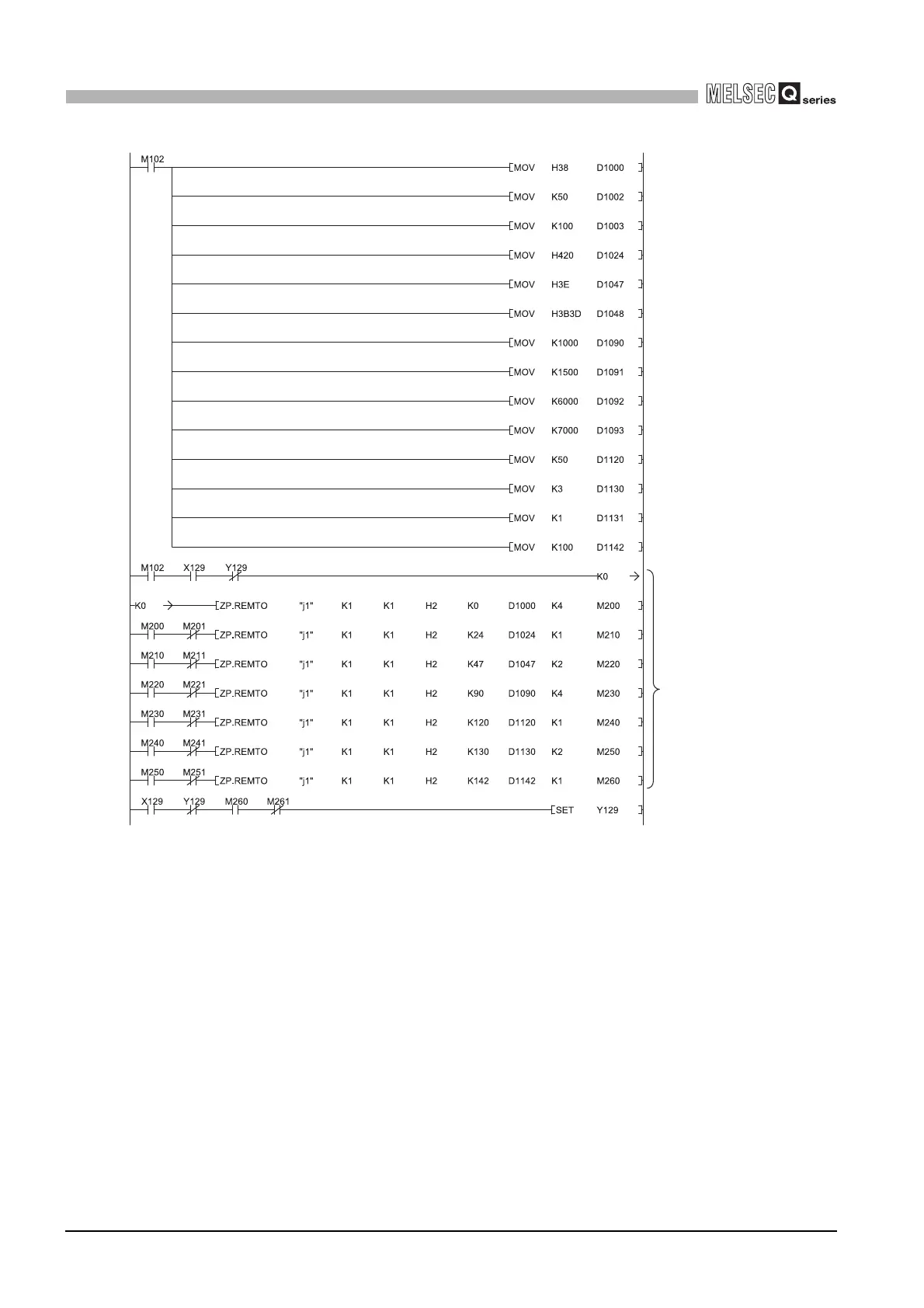

Turn ON operation condition setting
request (Y9).
A/D conversion enable/disable setting
CH2 Average time/Average number of times/
Move average/Time constant settings
Averaging process specification
Input signal error detection settings
Warning output settings
CH2 process alarm lower lower limit value
CH2 process alarm lower upper limit value
CH3 rate alarm warning detection period
CH3 rate alarm upper limit value
CH1 input signal error detection setting value
CH3 Average time/Average number of times/
Move average/Time constant settings
CH2 process alarm upper lower limit value
CH2 process alarm upper upper limit value
CH3 rate alarm lower limit value
Write to buffer memory
