App - 11
APPENDIX
(1) Functions
(a) Restores the offset/gain values of the user range setting stored in the CPU to the
A/D converter module.
(b) There are two types of interlock signals for the G(P).OGSTOR instruction: the
completion device (D) and the status display device at completion (D) + 1.
1) Completion device
Turns ON in the END processing of the scan where the G(P).OGSTOR instruc-
tion is completed, and turns OFF in the next END processing.
2) Status display device at completion
Turns ON and OFF depending on the completion status of the G(P).OGSTOR
instruction.
Normal completion : Stays OFF and does not change.
Abnormal completion: Turns ON in the END processing of the scan where the
G(P).OGSTOR instruction is completed, and turns OFF in the next END
processing.
*1 When the G(P).OGSTOR instruction is executed, A/D conversion is not performed. After the com-
pletion device (D) turns ON, A/D conversion starts, the A/D conversion value is stored into the buffer
memory, and the A/D conversion completed flag (XE) then turns ON.
(c) When the offset/gain values are restored, the reference accuracy falls to about
less than three times of the accuracy before that.
(2) Operation error
In any of the following cases, an error occurs and the corresponding error code is
stored into the completion status area (S)+1.
Error code Case resulting in operation error
161
The G(P).OGSTOR instruction was executed in the offset/gain setting
mode.
162 The G(P).OGSTOR instruction was executed consecutively.
163
The G(P).OGSTOR instruction was executed for the model that differs
from the model for which the G(P).OGLOAD instruction had been exe-
cuted.

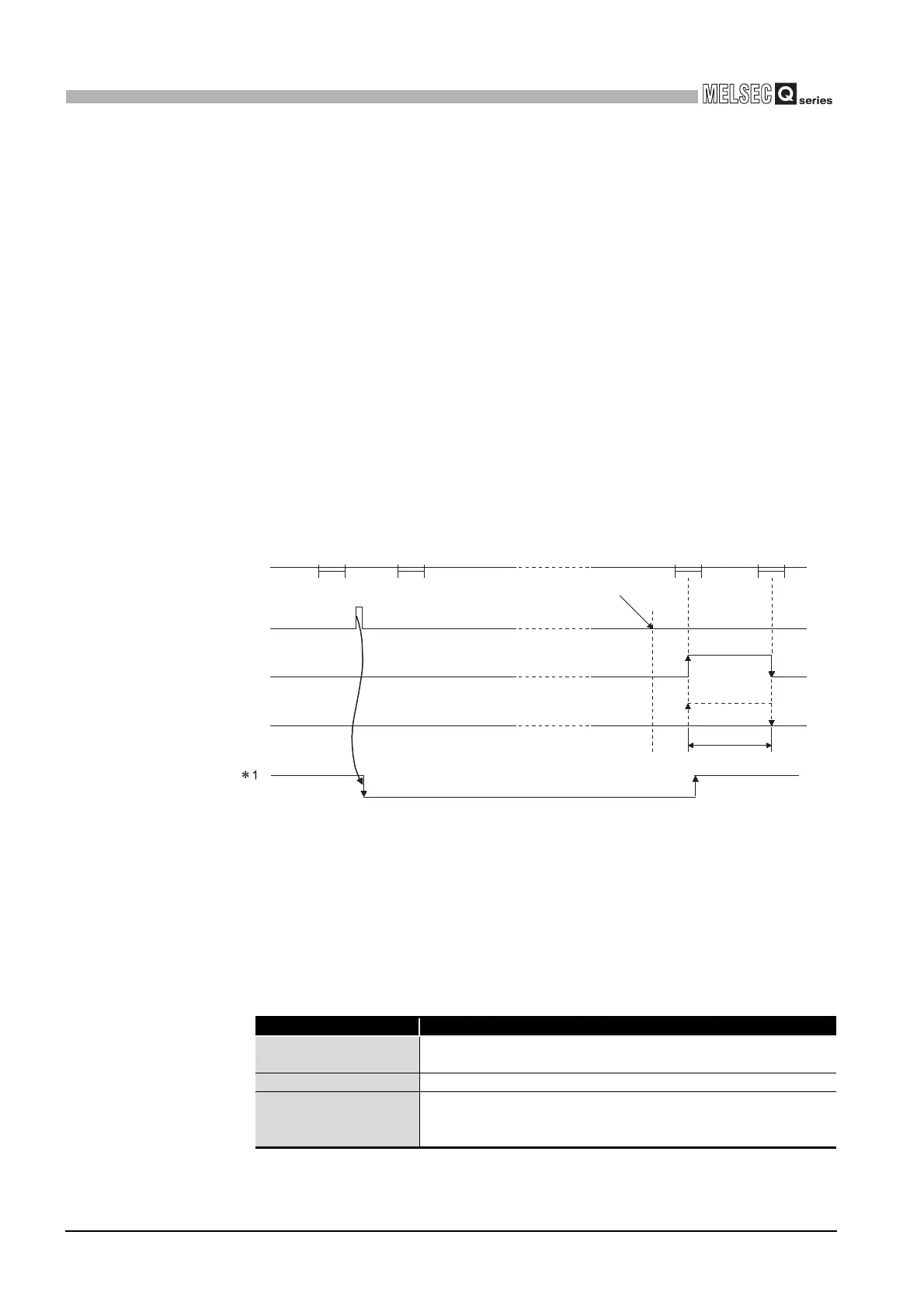

A/D conversion ON
completed flag (XE)
ON
OFF
ON
G.OGSTOR instruction
ON
OFF
OFF
OFF
ON
Sequence program
END processing
END processing
Completion device (D)
Status display device
at completion (D)+1
ON Abnormal
completion
Normal completion
1 scan
END processing
END processing
Execution completion of
the G.OGSTOR instruction
To Next Page
