143
WT07627X03

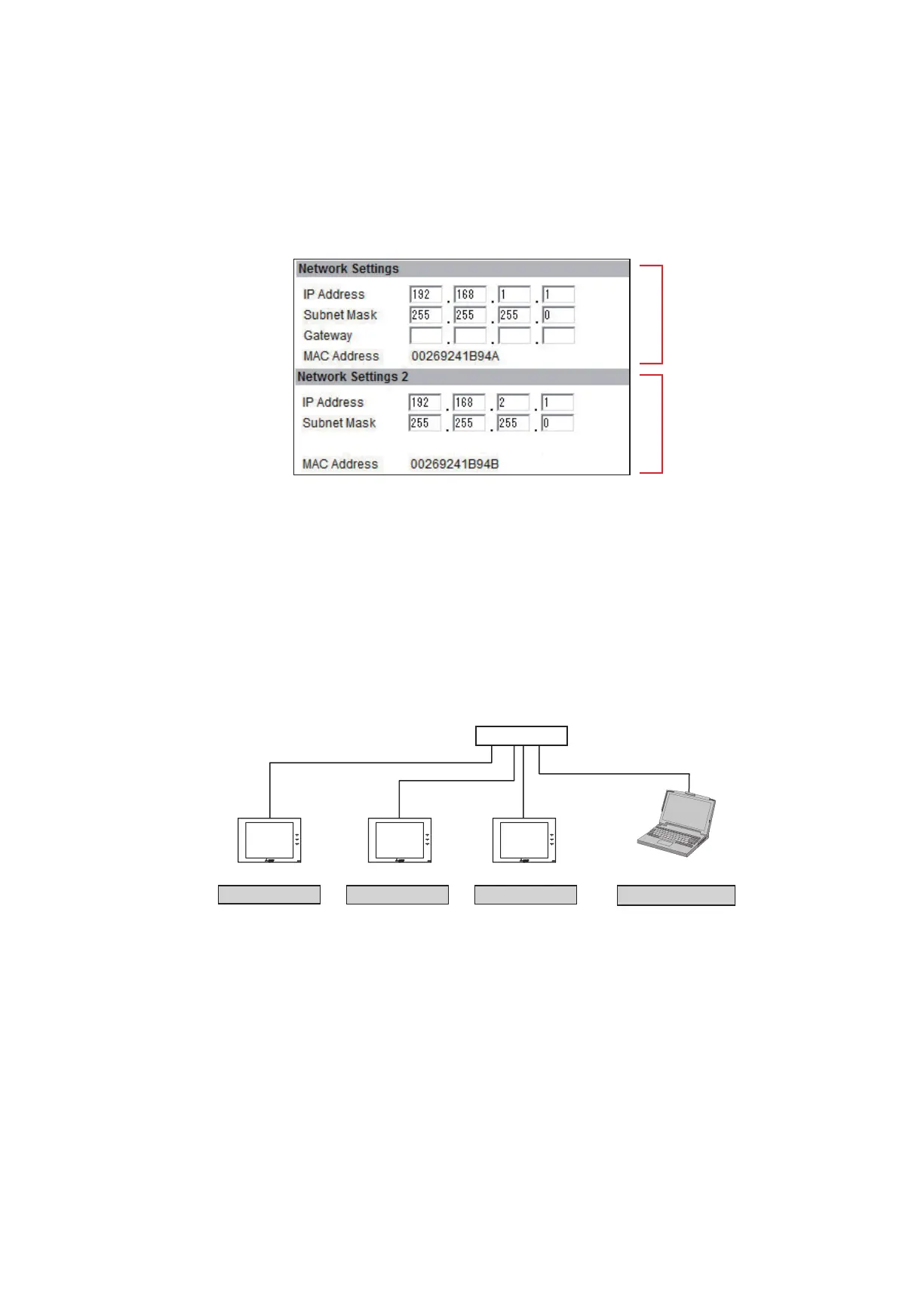

7-1-2-5. Network Settings
Network settings vary depending on whether the AE-200/AE-50/EW-50 is connected to a dedicated LAN or an
existing LAN. See the sections below for how to set the AE-200/AE-50/EW-50 IP, subnet mask, and gateway
addresses in the [Network Settings] section.
Note: LAN2 (Network Settings 2) is exclusively used for BACnet
®
function. For BACnet
®
function settings, refer to the Instruction
Book (BACnet
®
function).
Note: Although the settings for LAN1 (Network Settings) and LAN2 (Network Settings 2) will appear on the screen, only the
settings for LAN1 is required. However, only when the LAN1 IP address is required to be set to [192.168.2.1], change the
default LAN2 IP address to avoid address overlap.
Note: After the AE-200 IP address is changed, the AE-50/EW-50 power will be reset.
[1] Settings for connecting the AE-200/AE-50/EW-50 to a dedicated LAN
(1) Enter the AE-200, AE-50, or EW-50’s IP address in the [IP Address] field. If the LAN has been newly set up,
allocate IP addresses to the AE-200 units in a sequential order starting with [192.168.1.1]. For example, the
first AE-200 unit will have an IP address of [192.168.1.1], the second AE-200 unit will have an IP address of
[192.168.1.2] and so on.
Allocate IP addresses to the AE-50/EW-50 units in a sequential order starting with [192.168.1.211].
Note: The recommended IP address ranges are as follows.
AE-200: Between [192.168.1.1] and [192.168.1.40]
AE-50/EW-50: Between [192.168.1.211] and [192.168.1.249]
PC: Between [192.168.1.101] and [192.168.1.150]
[IP address setting example]
192.168.1.101 192.168.1.1 192.168.1.211 192.168.1.212
AE-200 AE-50 AE-50
Note: Some hubs have dedicated ports for connection with another hub.
Connect the AE-200/AE-50/EW-50 and PC to the normal ports.
(2) Enter [255.255.255.0] in the [Subnet Mask] field (unless otherwise specified).
LAN1
LAN2
100 BASE-TX LAN straight cable
Hub
PC
To Next Page
