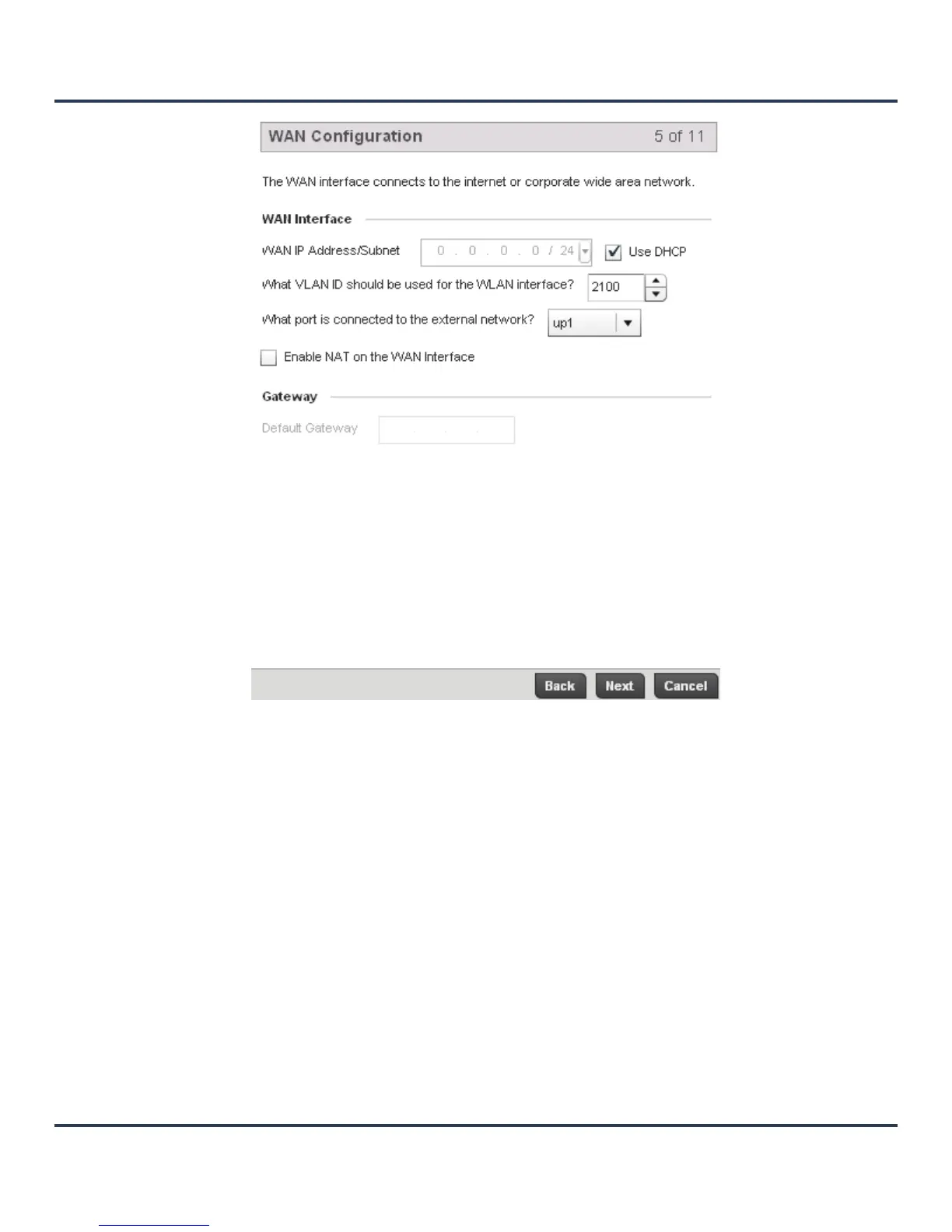

Figure 3-7 Initial Setup Wizard - WAN Configuration
14. Select the Next button when completed to advance to the WAN Configuration screen.
The WAN Configuration screen is partitioned into WAN Interface, and Gateway fields.
The WAN Interface field contains configuration parameters for the WAN IP Address, Subnet and VLAN.
WAN IP Address/
Subnet
Enter an IP Address and a subnet for the controller’s WAN interface. If the Use
DHCP checkbox is enabled this field is not configurable.
Use DHCP To enable automatic network configuration using a DHCP Server, select the
Use DHCP checkbox. If this option is enabled the WAN IP Address/Subnet
and Gateway fields are populated by the DHCP server.
What VLAN ID should
be used for the WLAN
interface
Use the spinner to select the VLAN ID to associate with the WLAN Interface.
The default setting is VLAN 2100.
For more information on VLAN configuration options, see Virtual Interface
Configuration on page 7-11.
To Next Page
