Accessories 5 - 13

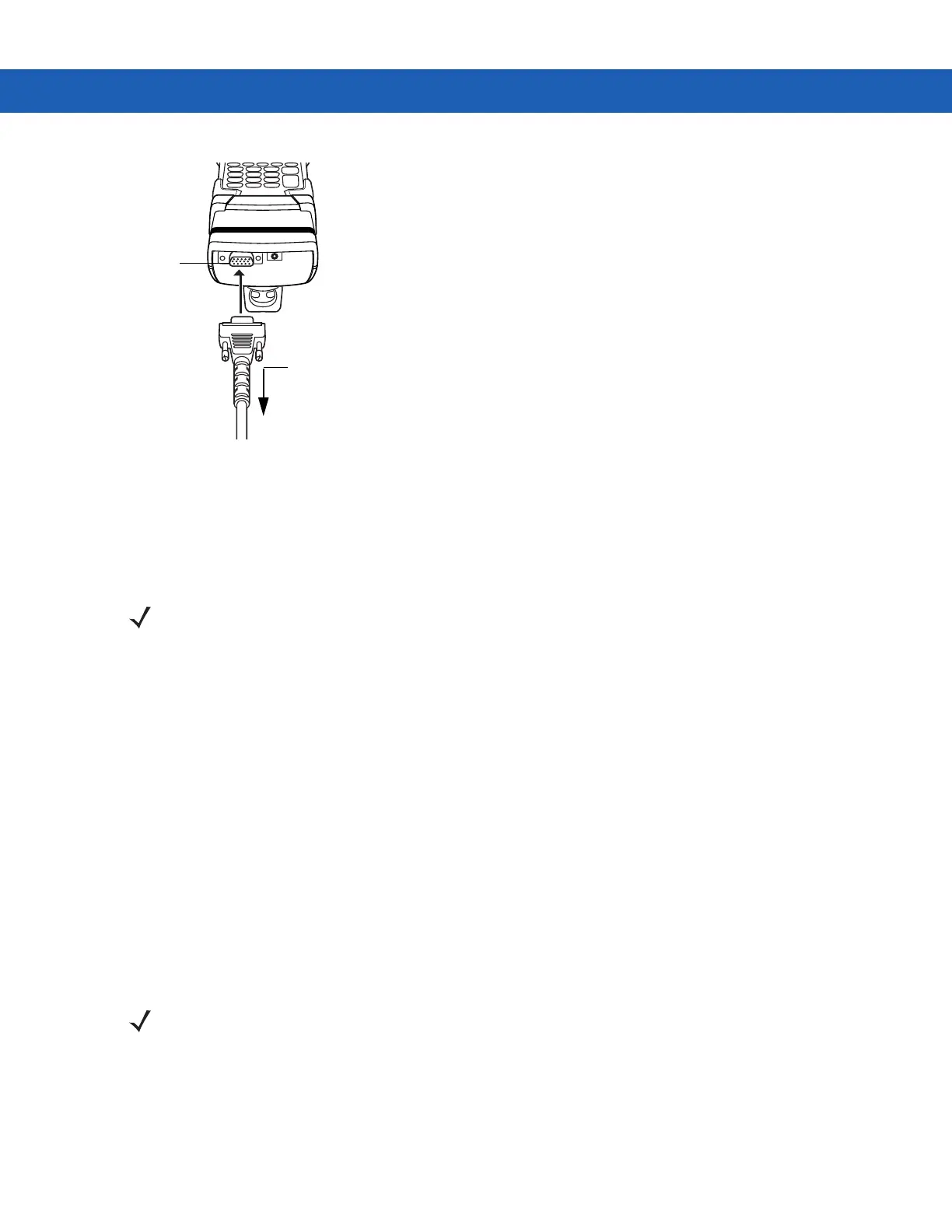

Figure 5-9
MSR Serial/USB Connection
Battery Charging Indicators
To charge the MC9190-G’s battery through the MSR, connect the power supply to the MSR (see Figure 5-8 on
page 5-12), then attach the MSR to the MC9190-G. The MC9190-G begins charging automatically.
The MC9190-G’s amber charge LED, located in the Indicator LED Bar, shows the status of the battery charging in
the MC9190-G. See Table 1-1 on page 1-4 for charging status indications.
The battery usually charges in less than four hours, if the MC9190-G is not in use.
Serial/USB Connection
The MSR can connect to and communicate with a serial/USB device, such as a printer or host computer, through
its serial port.
To connect the MSR to a serial/USB device, connect one end of the serial device cable into the serial port on the
MSR and the other end into the serial/USB port on the device.
Using the MSR
The MSR9000 sample application is designed to work with the MSR. This sample application illustrates how an
application should handle MSR inputs.
To use the MSR:
1. Attach the MSR to the MC9190-G (see Attaching and Removing on page 5-11).
2. Power on the MC9190-G.
3. Launch an MSR enabled application.
To Device
Serial/USB Port
Serial Port
NOTE Batteries must be charged within the 32° to 104° F (0° to +40° C) ambient temperature range.
NOTE The MSR does not need to be attached to the power supply to read magnetic stripes.
To Next Page
