5 - 6 MC9190-G User Guide
Single Slot Serial/USB Cradle
This section describes how to use a single Single Slot Serial/USB cradle (Figure 5-2) with the MC9190-G. For
serial and USB communication setup procedures refer to the MC9190-G Integrator Guide.

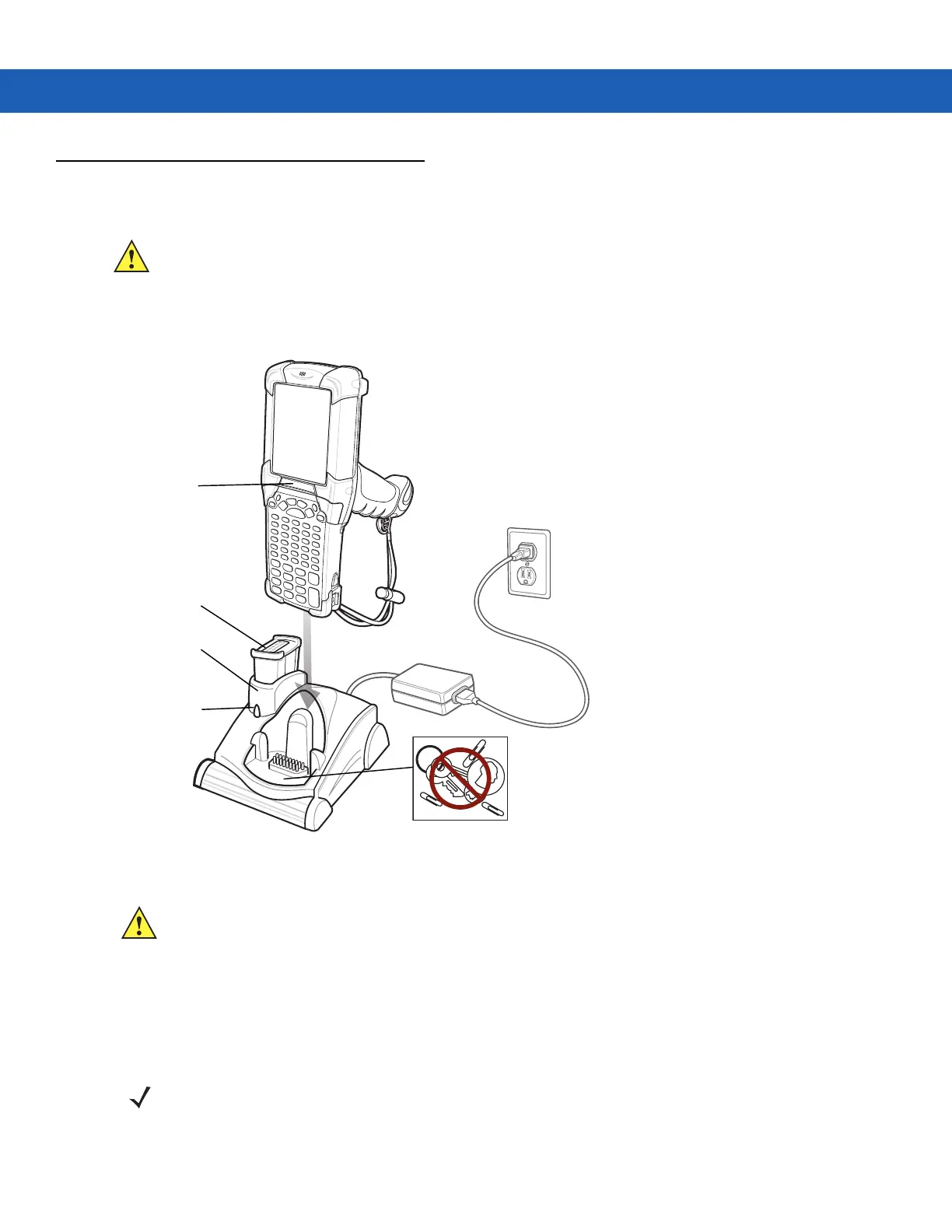

Figure 5-2
Single Slot Serial/USB Cradle
The Single Slot Serial/USB Cradle has the following attributes:
•
Provides 12 VDC power for operating the MC9190-G.
•
Provides serial and USB ports for data communication between the MC9190-G and a host computer or other
serial devices (e.g., a printer).
CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 6-1.
Spare Battery
Spare Battery
Charging Well
Spare Battery
Charging LED
Indicator
LED Bar
CAUTION Do not place coins, keys or paper clips in cradle well.
NOTE When a MC9190-G with Microsoft Mobile 6.5 is placed in the cradle and an ActiveSync connection is made,
the WLAN radio (if applicable) is disabled. This is a Microsoft security feature to prevent connection to two
networks at the same time.
