Accessories 5 - 5
Secure Device (SD) Card
The SD card provides secondary non-volatile storage. The SD card is located under the keypad.
To insert the SD card:
1. Suspend the MC9190-G.
2. Remove the two keypad screws and slide the keypad down and lift off.
3. Lift the SD card retaining door.
4. Position the SD card, with the contacts down, into the SD card holder. The SD card corner notch fits into the
holder only one way. Snap the retaining door closed.

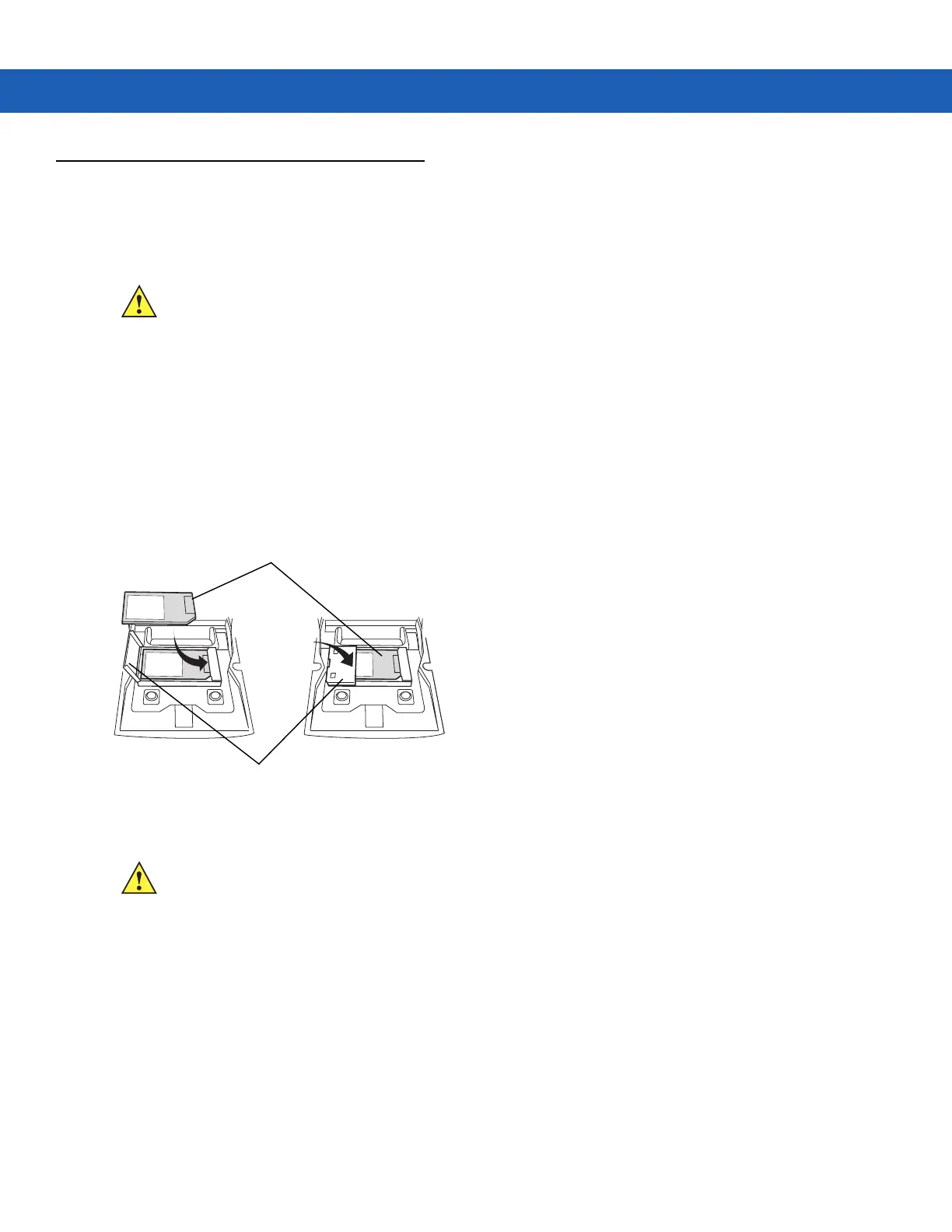

Figure 5-1
Inserting the SD Card
5. Replace the keypad and re-attach using the two screws.
6. Perform a warm boot.
CAUTION Do not remove the keypad while the MC9190-G is on and do not operate the MC9190-G with the keypad
detached. Follow proper ESD precautions to avoid damaging the SD card. Proper ESD precautions
include, but are not limited to, working on an ESD mat and ensuring that the operator is properly
grounded.
SD Card
SD Card Retaining Door
CAUTION Do not apply more than 4 in-lbs of torque when tightening the keypad screws.
To Next Page
