Keypads C - 5
43-Key Keypad
The 43-key keypad contains a Power button, application keys, scroll keys and a function key. The keypad is
color-coded to indicate the alternate function key (blue) values and the alternate ALPHA key (orange) values. Note
that keypad functions can be changed by an application so the MC9190-G’s keypad may not function exactly as
described. See Table C-2 on page C-6 for key and button descriptions and Table C-7 on page C-20 for the
keypad’s special functions.

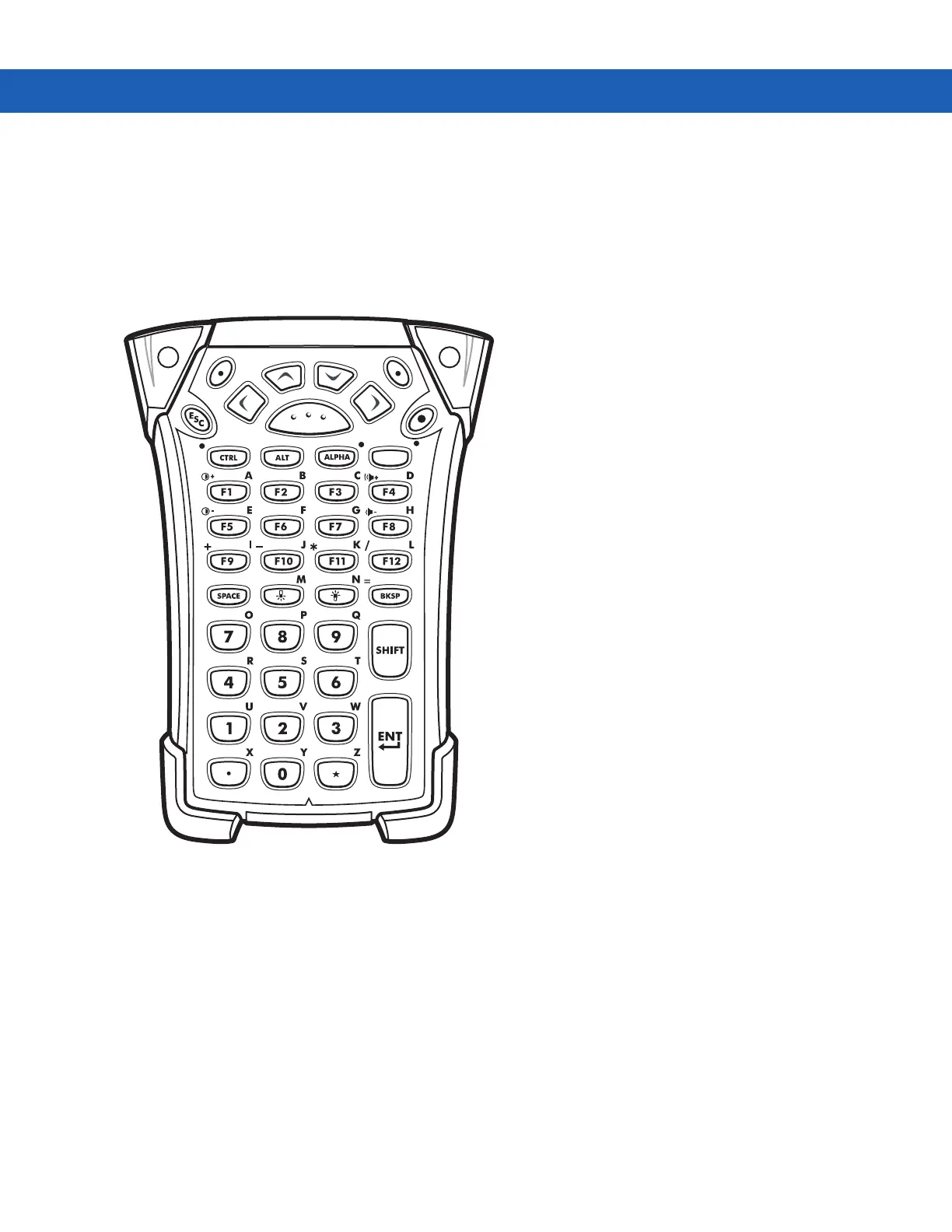

Figure C-2
43-Key Keypad
