C - 8 MC9190-G User Guide
53-Key Keypad
There are two physical configurations of the 53-key keypad, however both of the keypads are functionally identical.
The 53-key keypad contains a Power button, application keys, scroll keys and function keys. The keypad is
color-coded to indicate the alternate function key (blue) values. Note that keypad functions can be changed by an
application so the MC9190-G’s keypad may not function exactly as described. See Table C-3 on page C-9 for key
and button descriptions and Table C-7 on page C-20 for the keypad’s special functions.

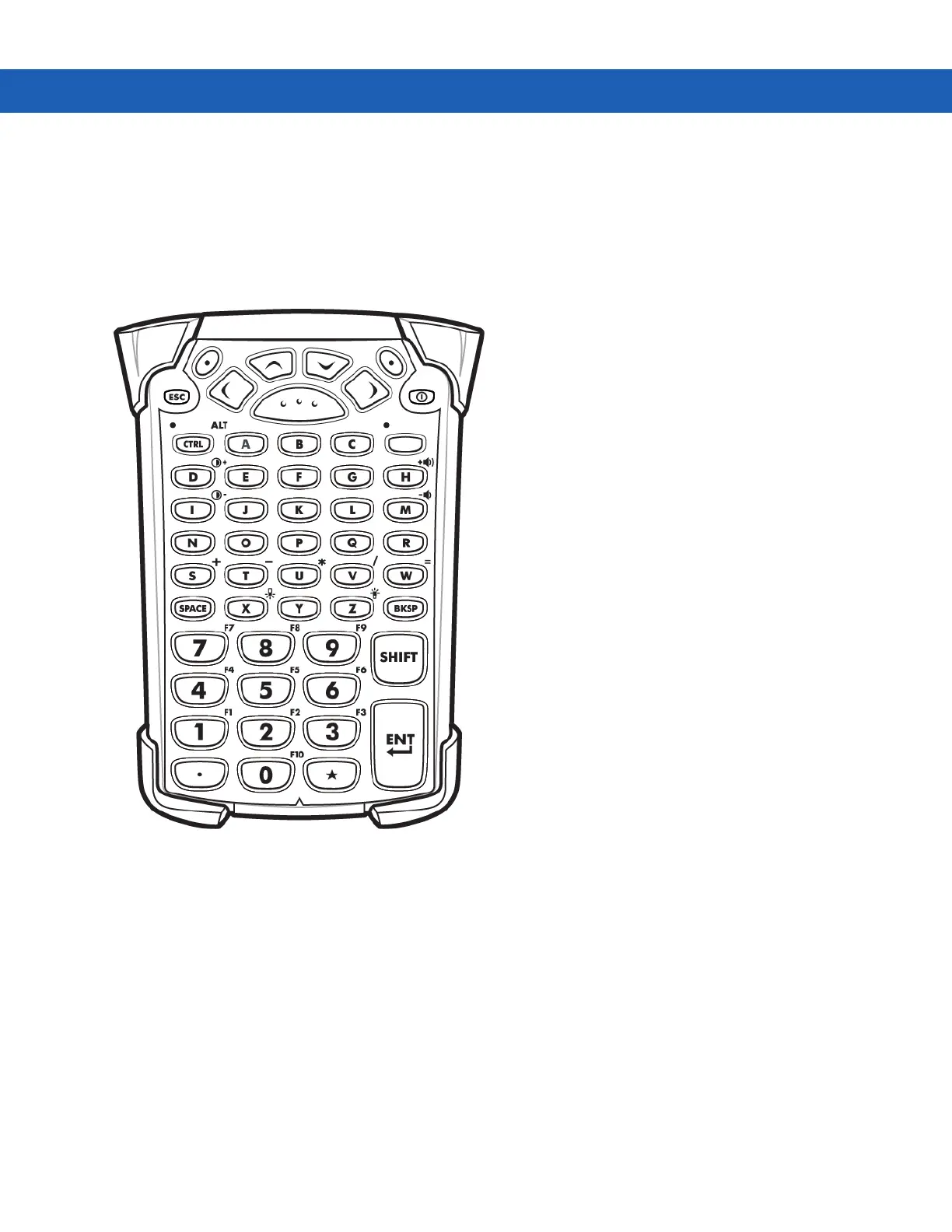

Figure C-3
53-Key Keypad
