9.8.1 Configuring IEC 61850 (optional)
If you want to use the IEC 61850 control system protocol, you must set the
following parameters. Also refer to the section Configuring the network
[►Section 9.3, Page 111].
Settings
Parameters
IEC 61850
Name Value
IED name TAPCON
Device ID TAPCON
Access point MRTCAP
Edition Edition 1
Home
Events
Information
Recorder
Settings
EN
CHANGE
REBOOT
admin 04.02.2020 11:14

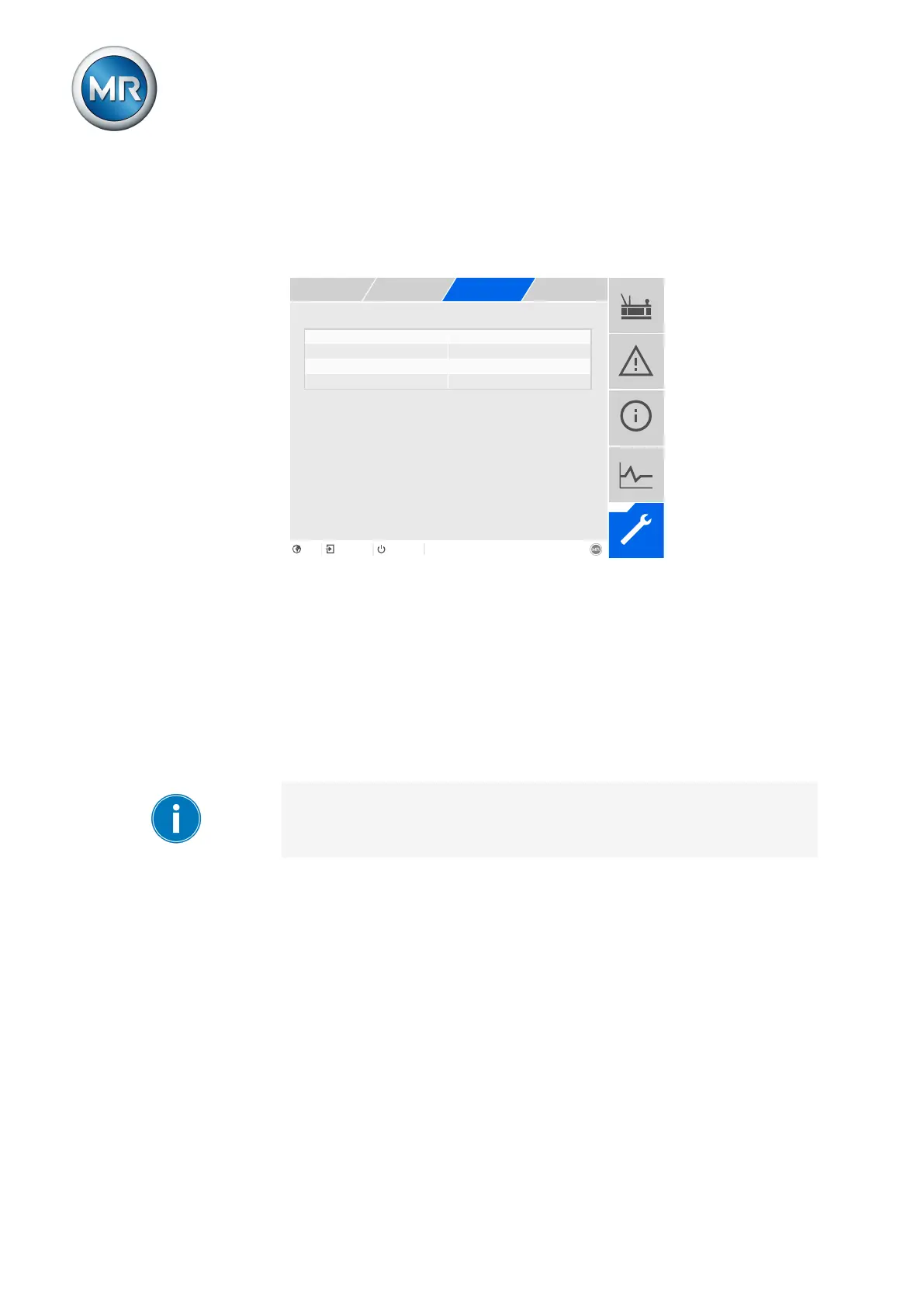

Figure90: IEC61850
1. Go to Settings > Parameters > System > IEC61850.
2. Select the desired parameter.
3. Set the parameter.
4. Press the Accept button to save the modified parameter.
IED name
You can use this parameter to assign the device an IED name in order for it
to be identified in the IEC61850 network.
The IED name must start with a letter and may contain no more than 11
characters.
Device ID
You can use this parameter to assign a device ID to the device in order that
it can be identified in the IEC 61850 network.
Access point
You can use this parameter to assign a name to the access point in the IEC
61850 network.
Edition
You can use this parameter to switch between edition 1 and edition 2 of the
IEC 61850 control system protocol.
