4 Product description
Maschinenfabrik Reinhausen GmbH 2020 356385142/08 EN ETOS
®
ED
4.5.7 ISM assemblies
Depending on the order, the device is either designed as a 19-inch plug-in
housing or supplied as individual components for assembly on a cap rail.
The individual device assemblies are described in the following section.

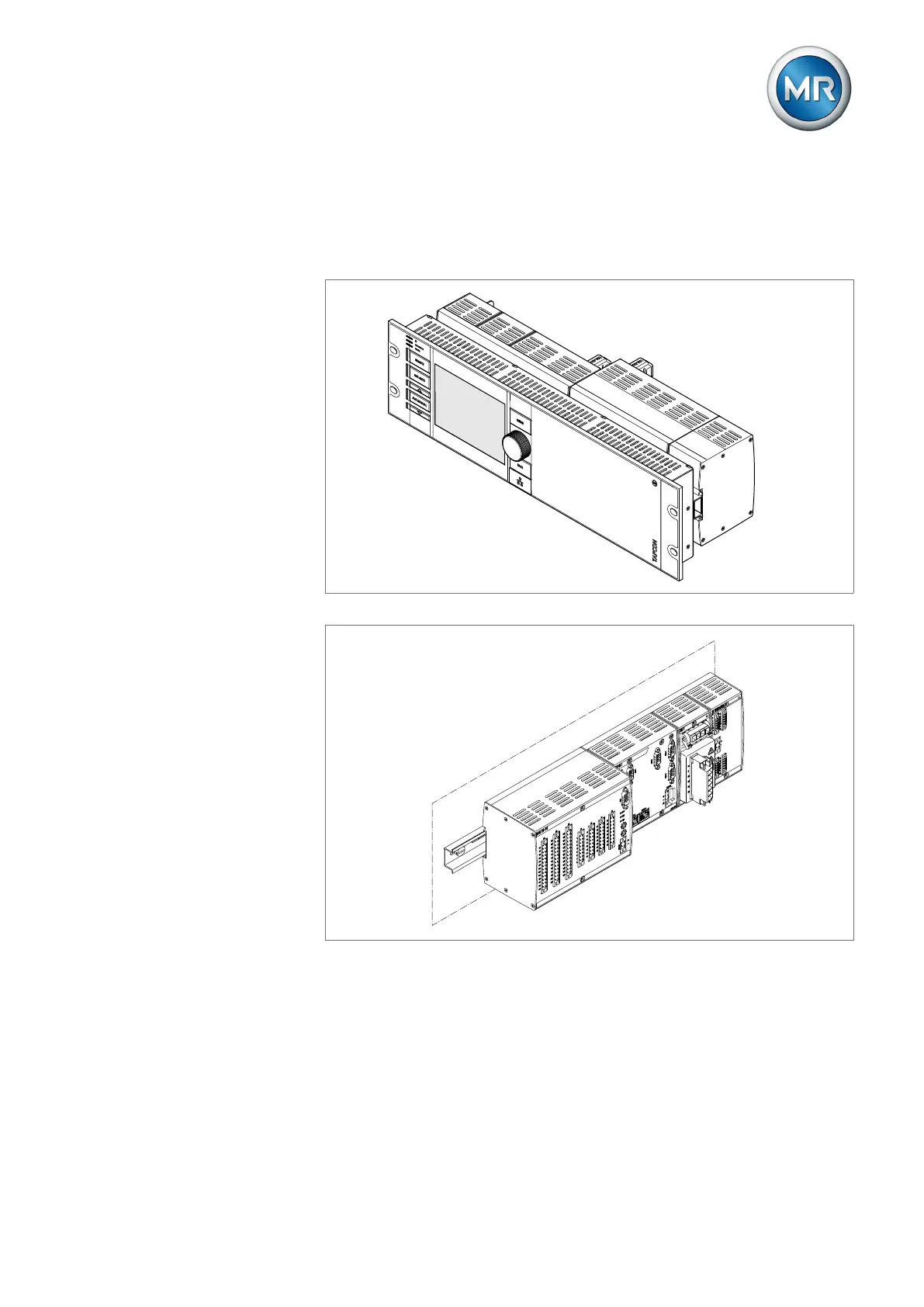

Figure10: 19-inch plug-in housing (OT1205)
Figure11: Individual components for assembly on a cap rail
4.5.7.1 Power supply
The OT1205 assembly contains the power supply unit for powering the de-
vice. Depending on configuration, the device is equipped with one of the fol-
lowing power supply unit variants:
▪ Multi-voltage mains unit 85...265 VAC/VDC
▪ DC voltage power supply unit 20...70 VDC
