MR ETOS ED - On-load tap-changer monitoring

9 Visualization
Maschinenfabrik Reinhausen GmbH 2020256 6385142/08 ENETOS
®
ED
9.24.8 Displaying the measured value trend of the oil level and
dehydrating breather (optional)
You can display the temporal progression of the oil level and the measured
values of the dehydrating breather over the last 10days. To do so, proceed
as follows:

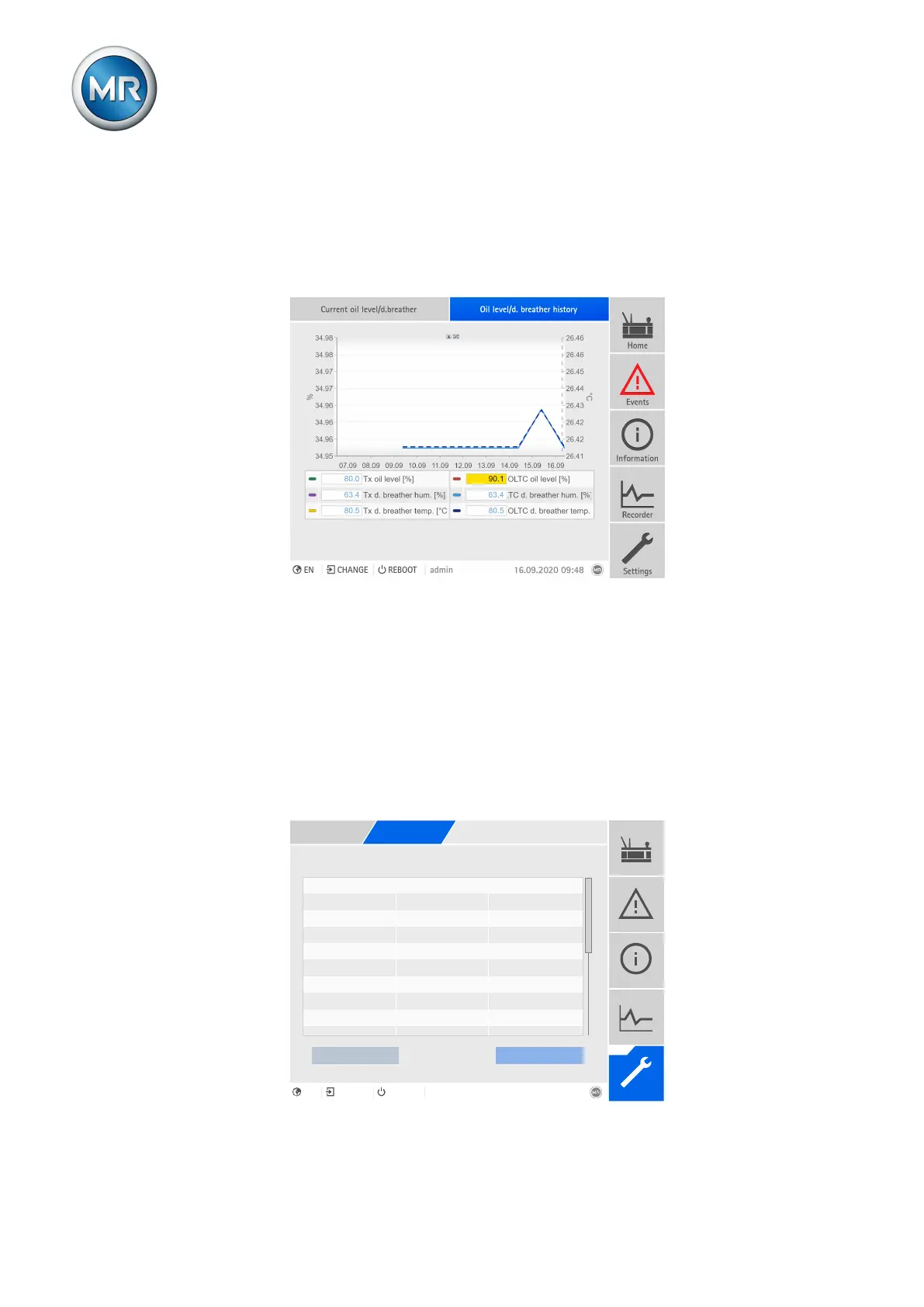

Figure181: Measured value trend of the oil level and the dehydrating breather measured values
► Go to Information > Insulating fluids > Historic oil level/dehydrating
breather.
9.25 On-load tap-changer monitoring
9.25.1 Changing tap position designation (optional)
This function allows you edit the designation of the tap position. The desig-
nations are displayed on the main screen when each of the tap positions is
active and are used for the control system.
Settings Tap position table
Raw value
Tap position
Control system
1
1
1
2
2
2
3
3
3
4
4
1
5
5
2
6
6
1
7
7
3
8
8
4
9
9
5
10
10
6
Accept
Cancel
Home
Events
Information
Recorder
Settings
EN CHANGE REBOOT admin 23.03.2020 08:08
Figure182: Tap position table
