3. Select the text field with the name of the function group and enter the
name you want.

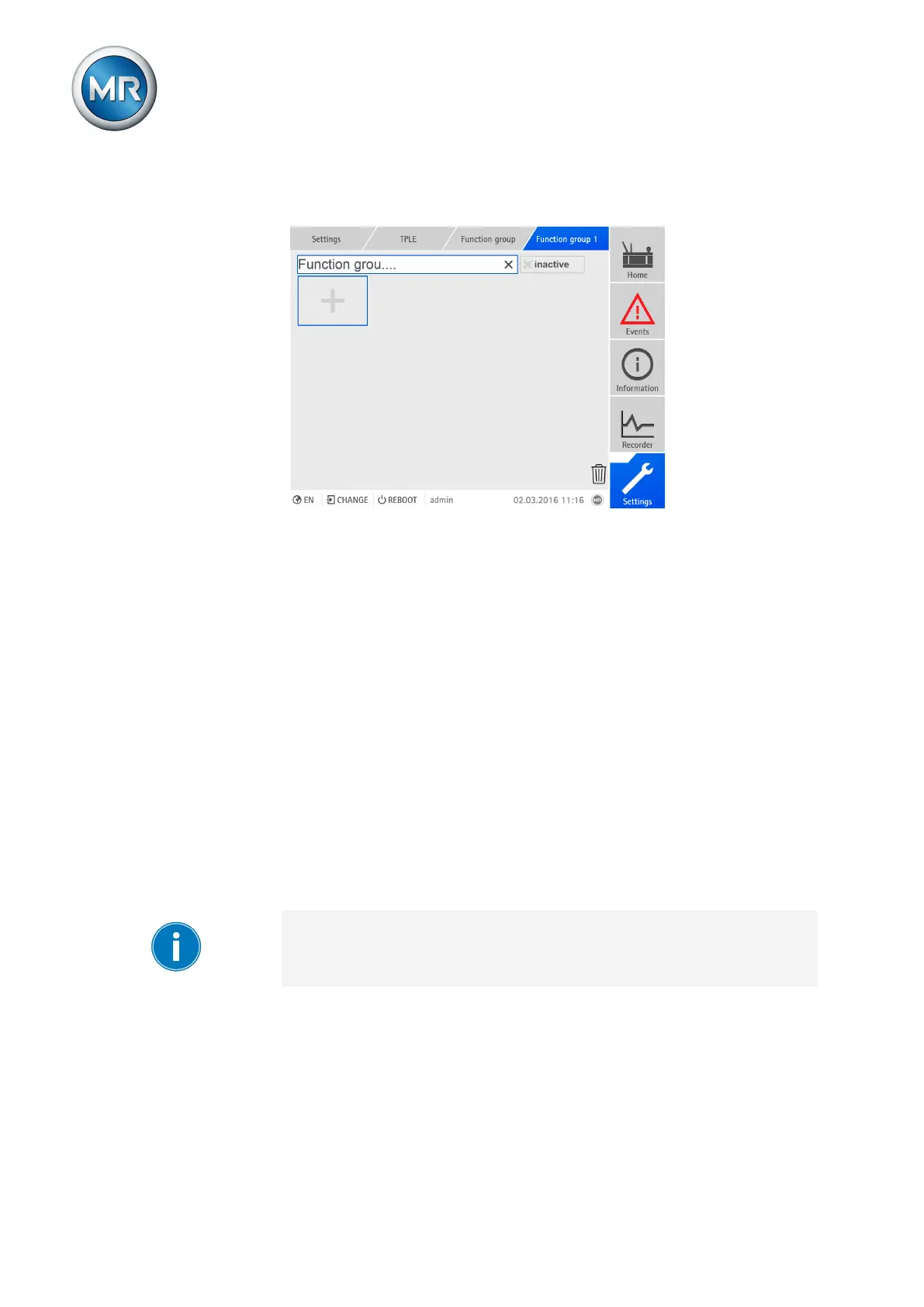

Figure258: Renaming function group
4. Press [Enter] to accept the change.
9.38.2.4 Activating/deactivating function group
You can fully activate or deactivate a function group. When you deactivate a
function group, none of the function group's function modules are processed.
To activate/deactivate a function group, proceed as follows:
1. Go to Settings > TPLE > Function group.
2. Select the function group you want.
3. Press the Inactive button.
ð Red X: Function group is inactive; gray X: Function group is active.
9.39 Calibrating the position sensor
This function is used to calibrate the position sensor if the position sensor of
the motor-drive unit has been replaced or is incorrectly calibrated. Follow the
notes in the service instructions.
Only calibrate the position sensor if the position sensor has been replaced
and after consultation with Maschinenfabrik Reinhausen GmbH. If incor-
rectly calibrated, the motor-drive unit might no longer function correctly.
