MR ETOS ED - Mounting; Attaching the control cabinet to the transformer

6 Mounting
Maschinenfabrik Reinhausen GmbH 202060 6385142/08 ENETOS
®
ED
6 Mounting
This chapter describes how to correctly install and connect the device.
WARNING
Danger of death or severe injury!
An energized transformer and energized on-load tap-changer components
can cause death or serious injuries during installation of the drive!
► Ensure the de-energized state of the transformer and on-load tap-
changer components during installation of the drive.
6.1 Attaching the control cabinet to the transformer
The control cabinet has four fixing attachments on the rear to secure it.
1. Attach four stud bolts (not supplied by MR) to the transformer tank.

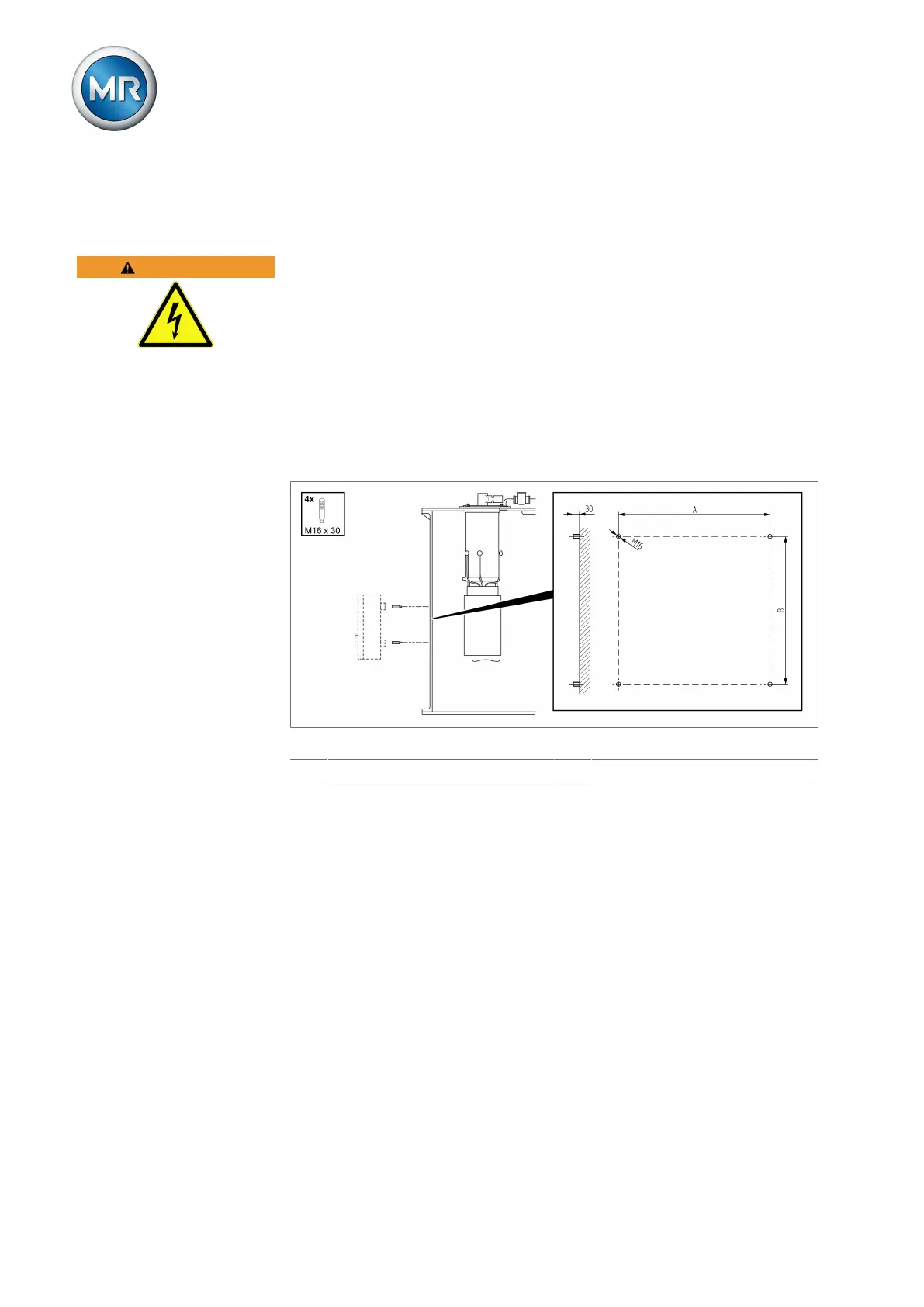

Figure38: Fastening the stud bolts
A 675±2 B 500±2
