9.28.5 Displaying information on the connected sensors
You can display information on the status and the current values of all sen-
sors that you have added to the sensor management function. The overview
screen displays the following information:
▪ Sensor status
– Red: Error
– Blue: OK
▪ Name
▪ Version
▪ Manufacturer
▪ Modbus address

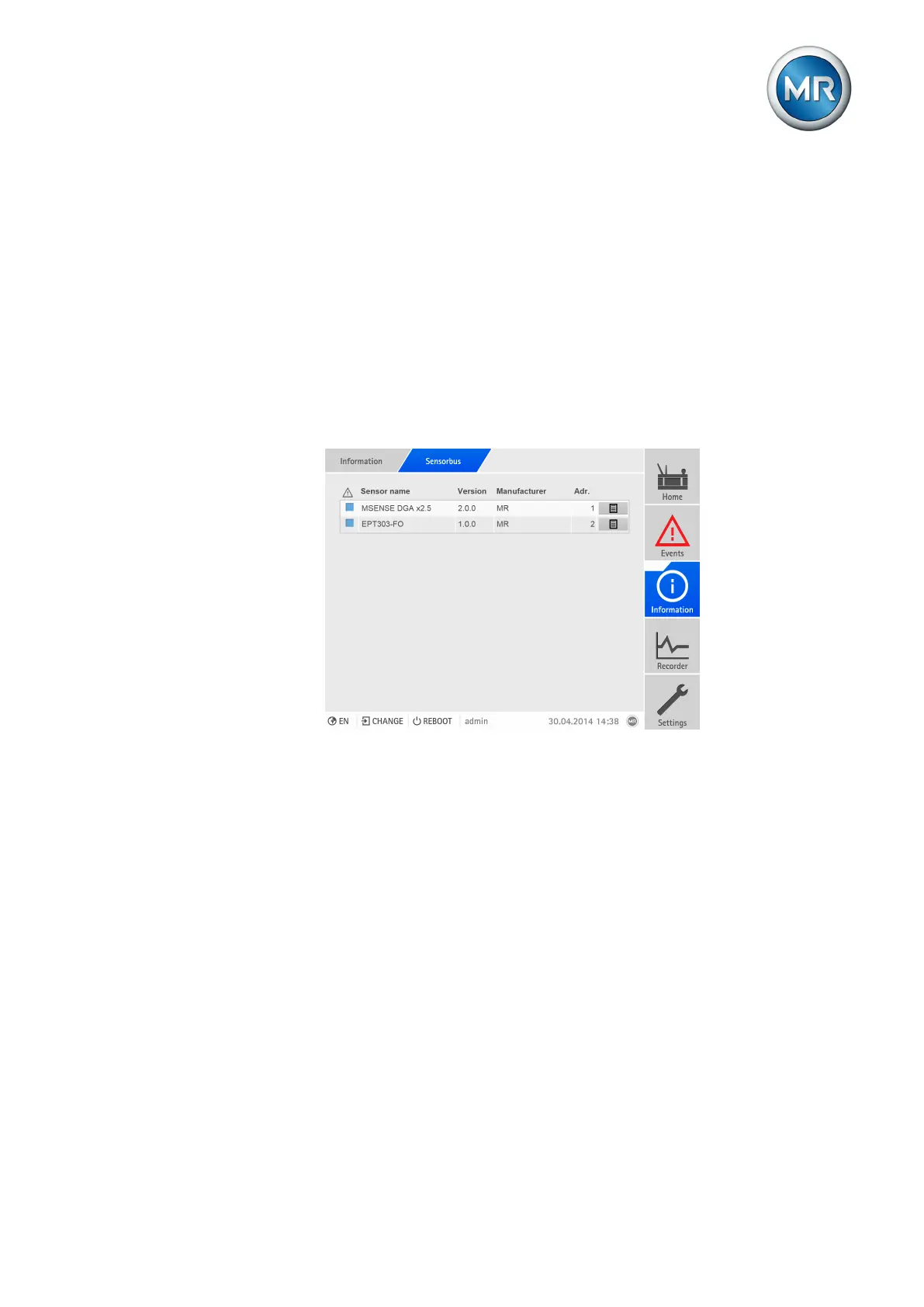

Figure218: Overview screen
► Go to Information > System > Sensor bus.
Detailed information on the sensor
You can display the current transmitted data point for each sensor on the
overview screen. The following information is displayed:
▪ Register (Reg.)
▪ Description
▪ Raw value
▪ Function value
▪ Function
