MR ETOS ED - Page 181

9 Visualization
Maschinenfabrik Reinhausen GmbH 2020 1816385142/08 EN ETOS
®
ED
Parameter Function Settings (see diagram
below)
U
0
: Desired value at 0 active
power
Set desired value is activated when measured active
power is 0MW.
100.00V
P
max
: Active power at max. de-
sired value
Set maximum active power value above which the
power-dependent desired value is to attain the maxi-
mum value U
max
.
20.0MW
P
min
: Active power at min. desired
value
Set minimum active power value below which the
power-dependent desired value is to attain the mini-
mum value U
min
.
-20.0MW
Table44: Parameters to be set for active power-dependent adjustment of desired voltage value

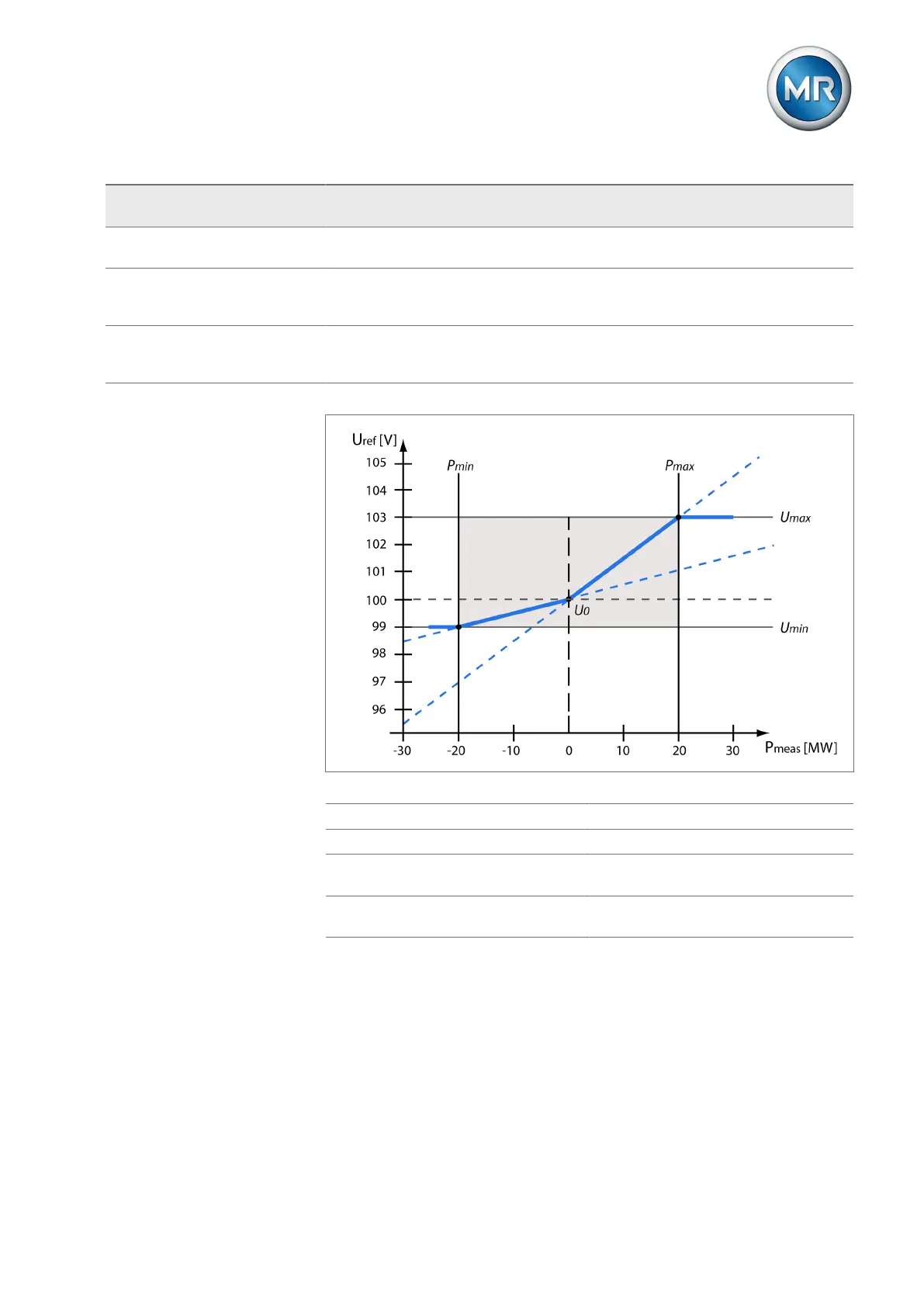

Figure133: Active power-dependent adjustment of desired voltage value
U
ref
Desired value U
min
Minimum desired value
P
meas
Measured active power U
max
Maximum desired value
P
min
Active power at minimum de-
sired value
U
0
Set desired value when mea-
sured active power = 0
P
max
Active power at maximum de-
sired value
Response to active power P
max
being exceeded
If the measured active power P
meas
exceeds the set parameter P
max
, the value
U
max
is adopted as the desired value.
U
ref
= U
max
