MR ETOS ED - Page 31

4 Product description
Maschinenfabrik Reinhausen GmbH 2020 316385142/08 EN ETOS
®
ED
Components not described here in detail are described in the motor-drive
unit's technical data.

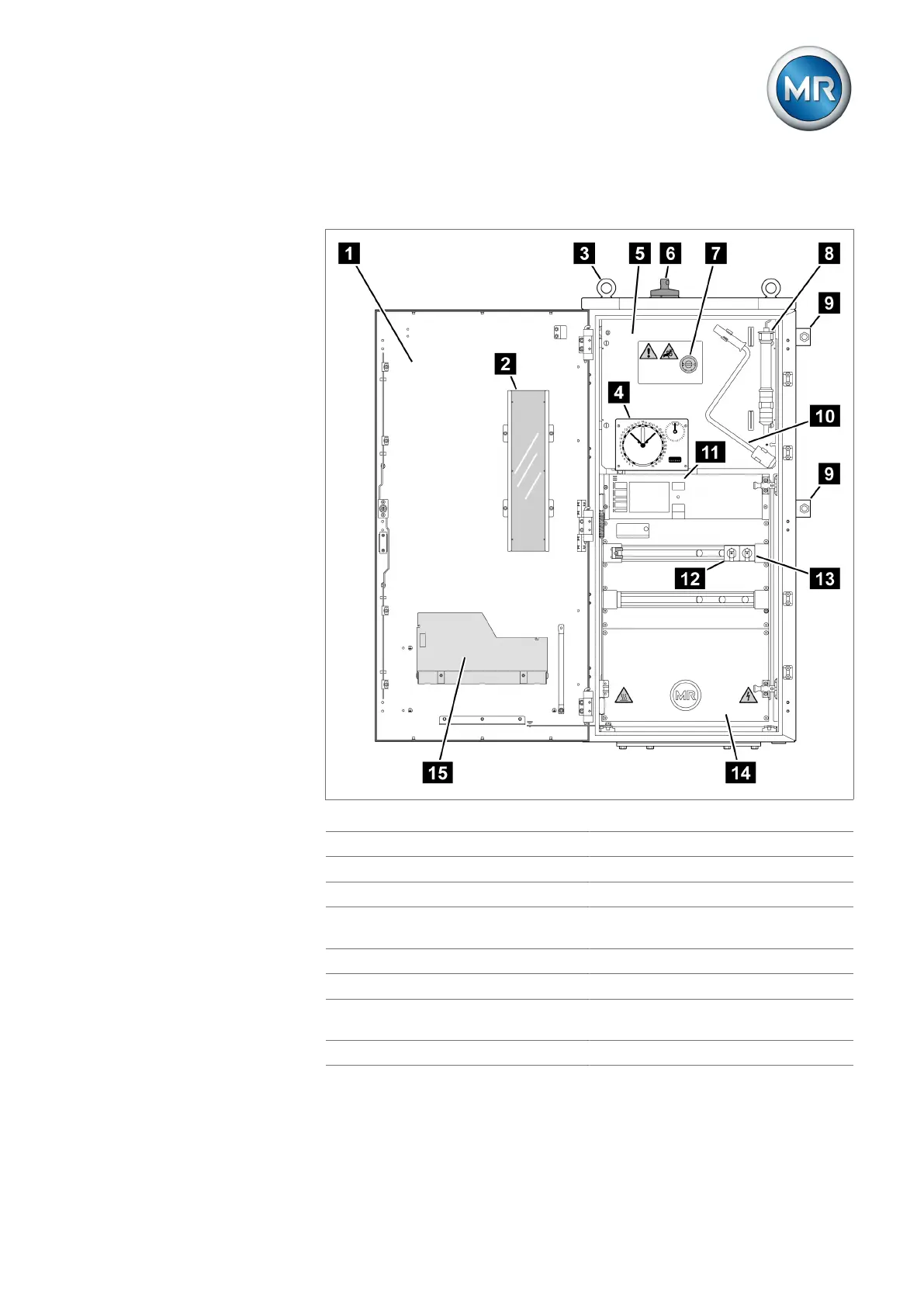

Figure7: Design
1 Door of the control cabinet 2 Viewing window for indication field
3 Eyebolt 4 Indication field
5 Transmission-gear cover plate 6 Output shaft
7 Hand crank aperture with hand
crank interlock switch
8 Hand lamp
9 Fixing lug 10 Hand crank
11 19-inch plug-in housing 12 Motor protective switch Q1
13 S3 control switch 14 Swing frame / anti-condensation
heater
15 Briefcase
