14 Technical data
Maschinenfabrik Reinhausen GmbH 2020 3916385142/08 EN ETOS
®
ED

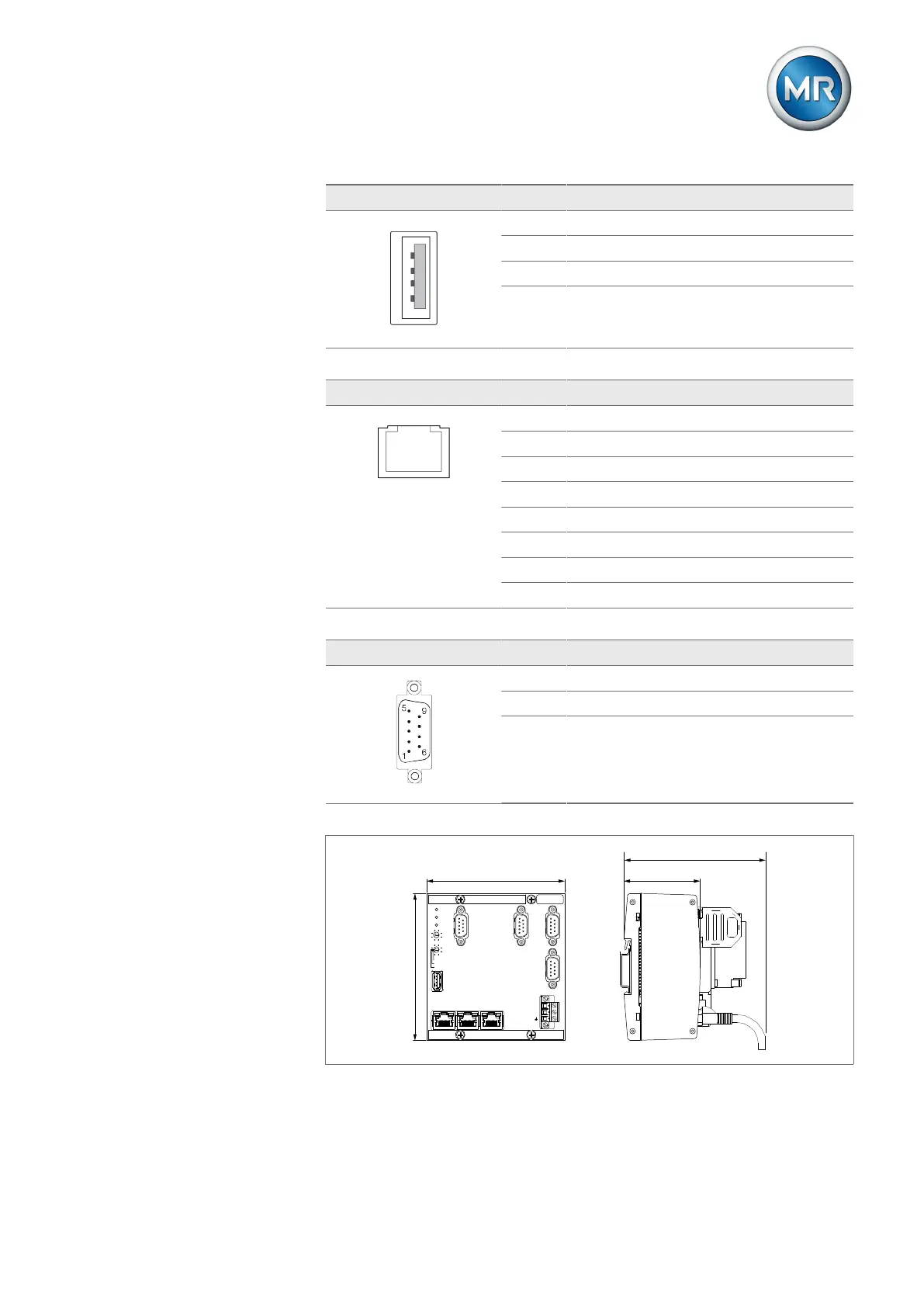

Interface Pin Description
1 VCC
2 D-
3 D+
4 GND
Table158: USB 2.0
Interface Pin Description
1 TxD+
2 TxD-
3 RxD+
4 NC
5 NC
6 RxD-
7 NC
8 NC-
Table159: ETH1, ETH 2.1, ETH 2.2 (RJ45)
Interface Pin Description
2 CAN-L
3 CAN-GND
7 CAN-H
Table160: CAN1, CAN2
CPU
CAN 1
1
9
CAN 2
1
9
COM 1
1
9
COM 2
1
9
-
+
24V DC
RUN
INIT
ERR
USB2.0
4
62
A
8
C
H
TEST
PROG
RUN
4
62
AE
0 8
C
L
ETH 1 ETH 2.1 ETH 2.2
55 mm (2.17 in)
ca. 120 mm (4.72 in)
119 mm (4.69 in)
109 mm (4.29 in)
Figure272: CPU dimensions
