6.4.3.1 MSENSE® DGA
If you would like to use an MSENSE® DGA sensor, you must connect the
sensor to the MR sensor bus in accordance with the following connection ex-
amples. If the MSENSE® DGA sensor is the only bus device or the last bus
device, you must use a terminating resistor (120Ω, 0.5W).
CPU-COM2
MSENSE DGA 2/3
D0 (A)
D1 (B)
Com. (C)
1
2
3
4
5
6
7
8
9
D0 (A)
D1 (B)
Com. (C)
1
4
2
3
5
1
2
3
4
5
D1 (B)
D0 (A)

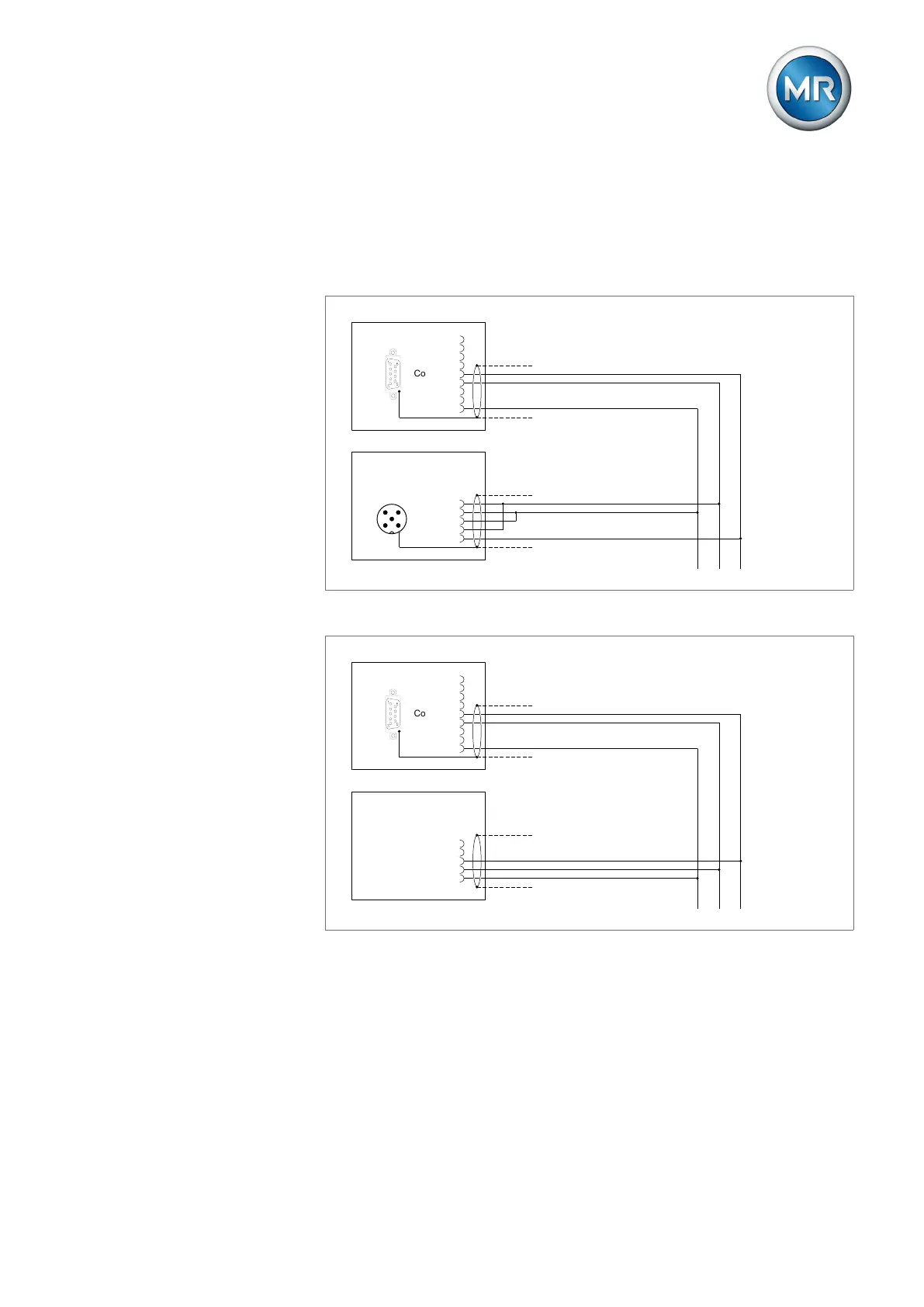

Figure56: Connection example MSENSE® DGA 2/3 (connector M12, type A, 5-pole in accor-
dance with IEC61076-2-101)
CPU-COM2
MSENSE DGA 5
D0 (A)
D1 (B)
Com. (C)
1
2
3
4
5
6
7
8
9
(PhoneB)
(GND)
X302:5
X302:4
X302:3
X302:2
X302:1
(OUTA)
(OUTB)
(PhoneA)
Figure57: Connection example MSENSE® DGA 5 (terminal X302)
