Kerf Overlap
The Kerf Overlap function is used to adjust the edge quality of the cut. A higher percentage of overlap yields a
better cut; however, the effectiveness of this setting is determined by the material being cut and how that material
responds to heat.
1. Press Menu
to access the menu system.
2. Press X-axis Jog Arrows
until Params_2D is highlighted in blue.
3. Press Enter
to access the Params_2D sub-menu.
4. Press X-axis Jog Arrows
until Kerf Overlap is highlighted in blue.
5. Press Enter
to adjust the kerf overlap percentage value.

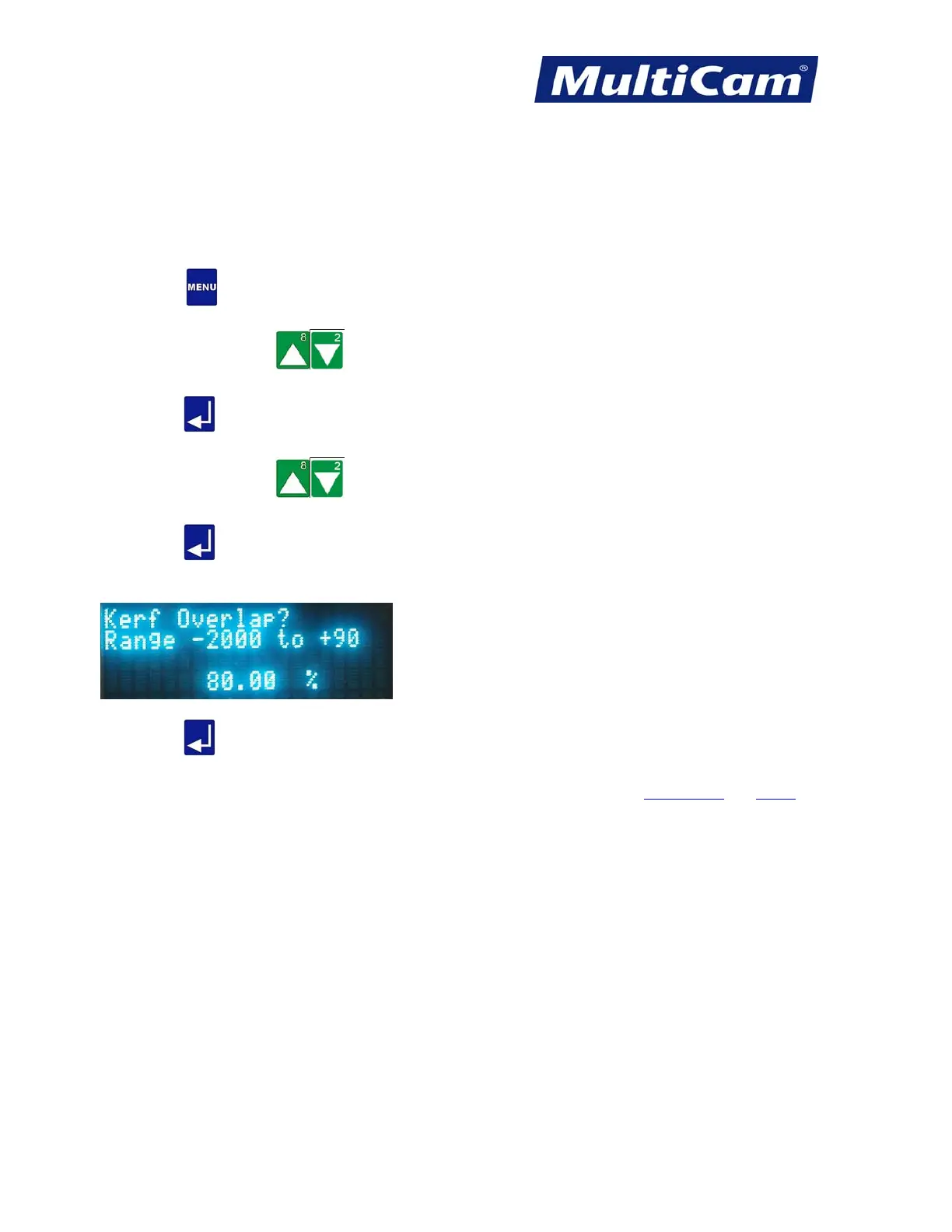

6. Enter the kerf overlap percentage value using the number keypad (e.g., 80).
7. Press Enter
to record the Kerf Overlap and return to the Params_2D sub-menu.
Params_2D
Menu
