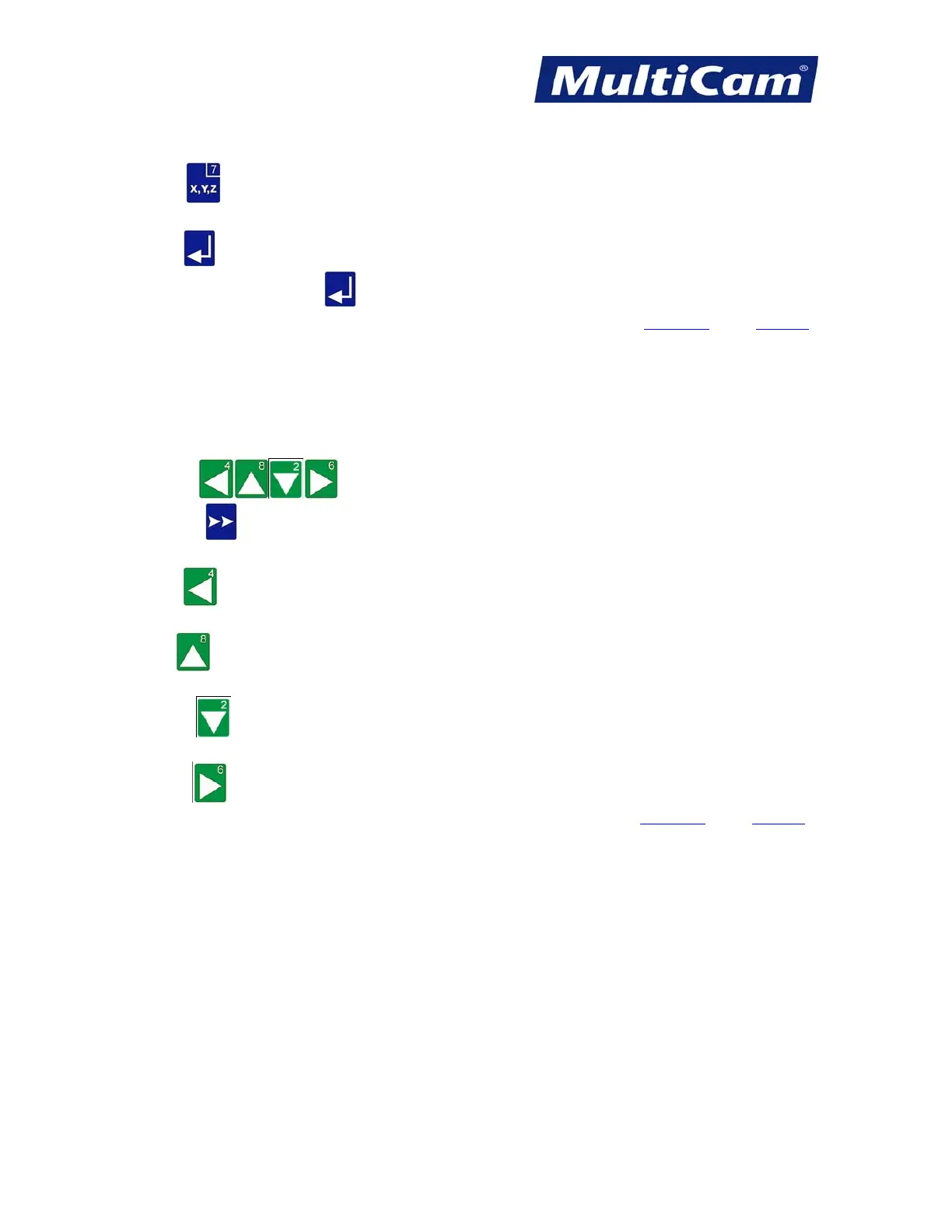

The Move function can also be used to verify a specific location.
1. Press Move
.
2. Press Enter
3 times to verify the current location of the X-, Y-, and Z-axes.
The operator should press Enter
to keep the axis value from changing when that value is shown on the
screen. Hot Keys
Keypad
Jog X- and Y-axes
The Jog Arrows are used to Jog the location of the head assembly and to move through the
menu. Jog Speed
can be pressed to change the Jogging speed of the machine.
1. Left Arrow
is the Y-axis Positive Jog Key and Left Scroll Key in the menu.
2. Up Arrow
is the X-axis Positive Jog Key and Line Up Key in the menu.
3. Down Arrow
is the X-axis Negative Jog Key and Line Down Key in the menu.
4. Right Arrow
is the Y-axis Negative Jog Key and the Right Scroll Key in the menu.
Hot Keys
Keypad
