Square
The Square function is used to run a Square Shape sample file to test the output of the system using the present
Set Home, Cut Height, Lift Height, Pierce Height, and X & Y Feedrate.

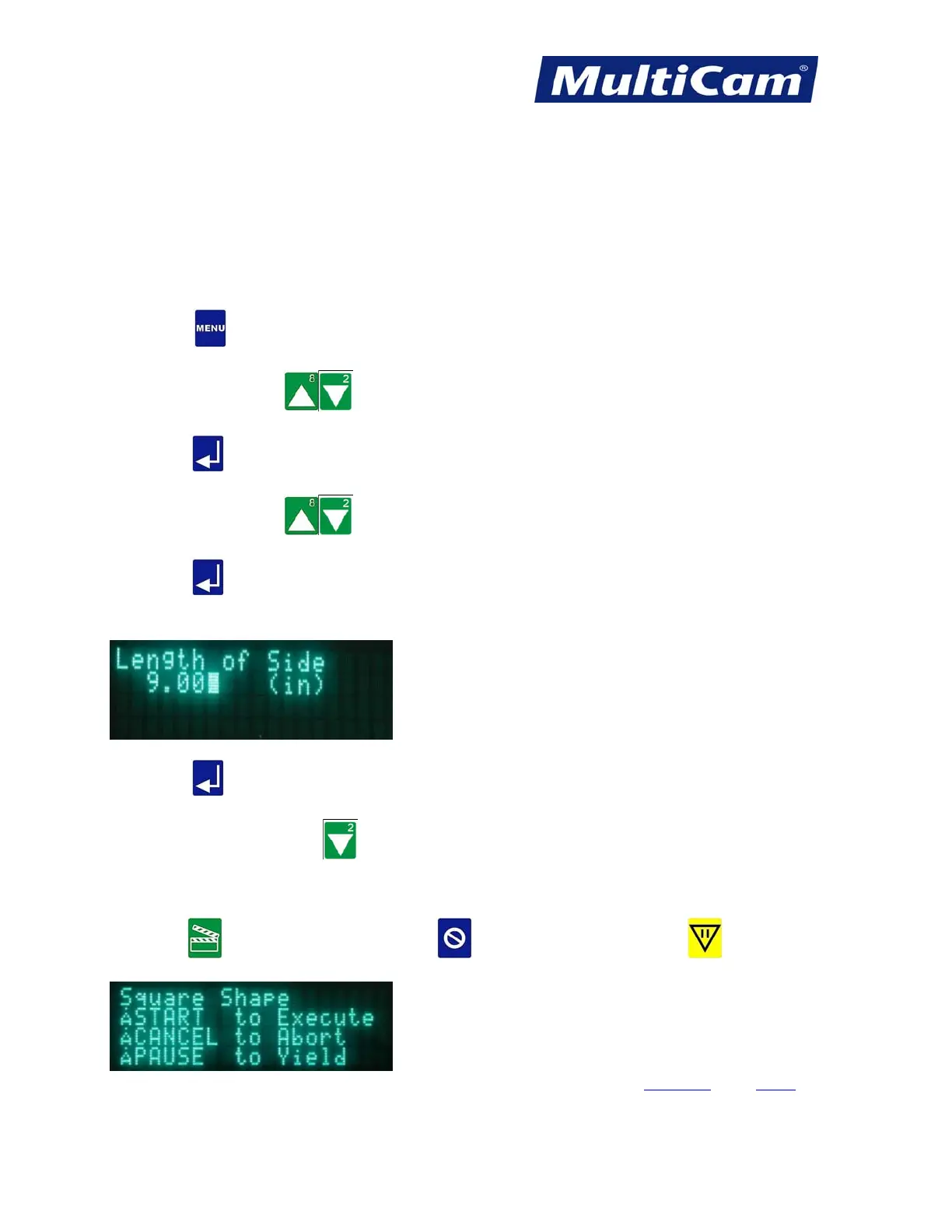

1. Set up the system as if a normal file is to be executed (e.g., Material Library, Set Home, Cut Height,
Lift Height, Pierce Height, and X & Y Feedrate).
2. Press Menu
to access the menu system.
3. Press X-axis Jog Arrows
until Cut_Utils is highlighted in blue.
4. Press Enter
to access the Cut Utilities sub-menu.
5. Press X-axis Jog Arrows
until Square is highlighted in blue.
6. Press Enter
to access the Square function.
7. Enter the length of the side for the Square using the number keypad (e.g., 9.000).
8. Press Enter
to accept the value.
9. Press X-axis Down Jog Arrow
to access the Dry Run function if needed. This step is optional and
can be skipped.
10. Press Start
to execute Square Cut, Cancel to abort the function, or Pause to reposition
the start point.
Cut_Utils Menu
