Z Safe Lift
The Z Safe Lift function is used to set the distance of the lift between each probe. The default value is 0.2”
(5.08mm).
1. Press Menu
to access the menu system.
2. Press X-axis Jog Arrows
until SurfMap is highlighted in blue.
3. Press Enter
to access the SurfMap sub-menu.
4. Press X-axis Jog Arrows
until Z Safe Lift is highlighted in blue.
5. Press Enter
to access the Z Safe Limit.

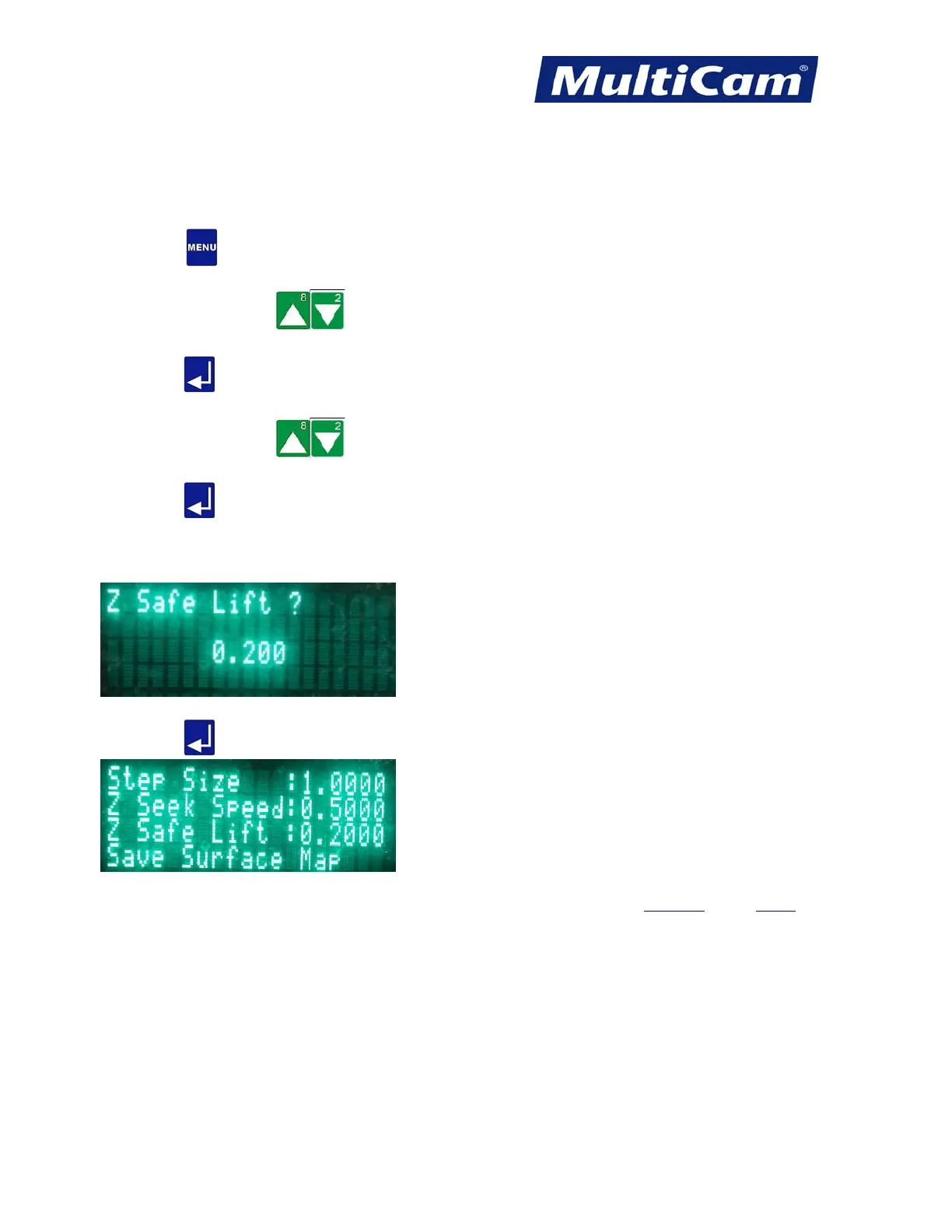

6. Enter the value for the Z Safe Limit using the number keypad (e.g., 0.200).
7. Press Enter
to accept the value entered and return to the SurfMap sub-menu.
SurfMap
Menu
