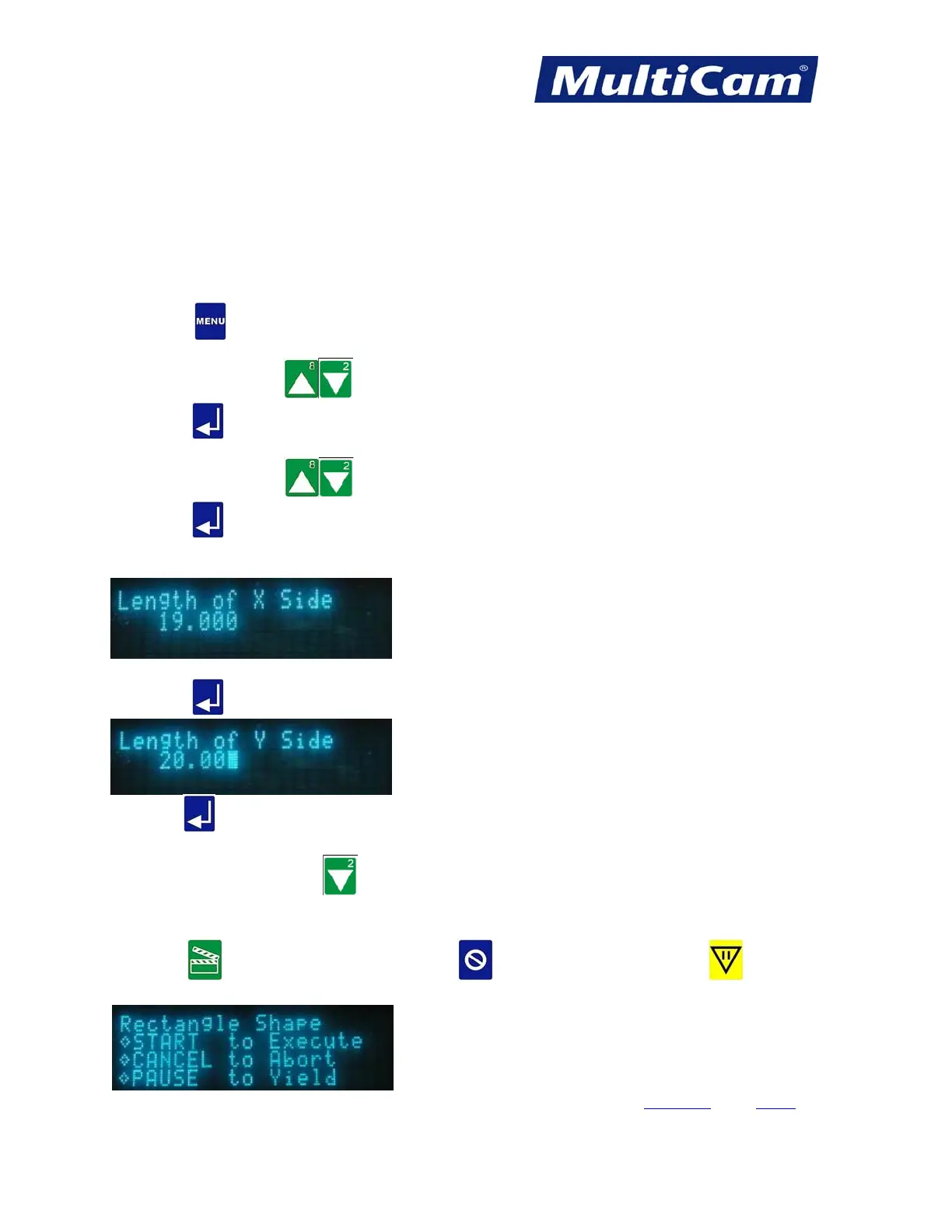

The Rectangle function is used to run a Rectangle Shape sample file to test the output of the system using the
present Set Home, Cut Height, Lift Height, Pierce Height, and X & Y Feedrate.
1. Set up the system as if a normal file is to be executed (e.g., Material Library, Set Home, Cut Height,
Lift Height, Pierce Height, and X & Y Feedrate).
2. Press Menu
to acces the menu system.
3. Press X-axis Jog Arrows until Cut_Utils is highlighted in blue.
4. Press Enter
to access the Cut Utilities sub-menu.
5. Press X-axis Jog Arrows until Rectangle is highlighted in blue.
6. Press Enter
to access the Rectangle function.
7. Enter the length of the X and Y sides for the Rectangle using the number keypad (e.g., X=19, Y=20).
8. Press Enter
to accept the X value.
9. Press Enter
to accept the Y value.
10. Press X-axis Down Jog Arrow
to access the Dry Run function if needed. This step is optional and
can be skipped.
11. Press Start
to execute Rectangle Cut, Cancel to abort the function, or Pause to reposition
the start point.
