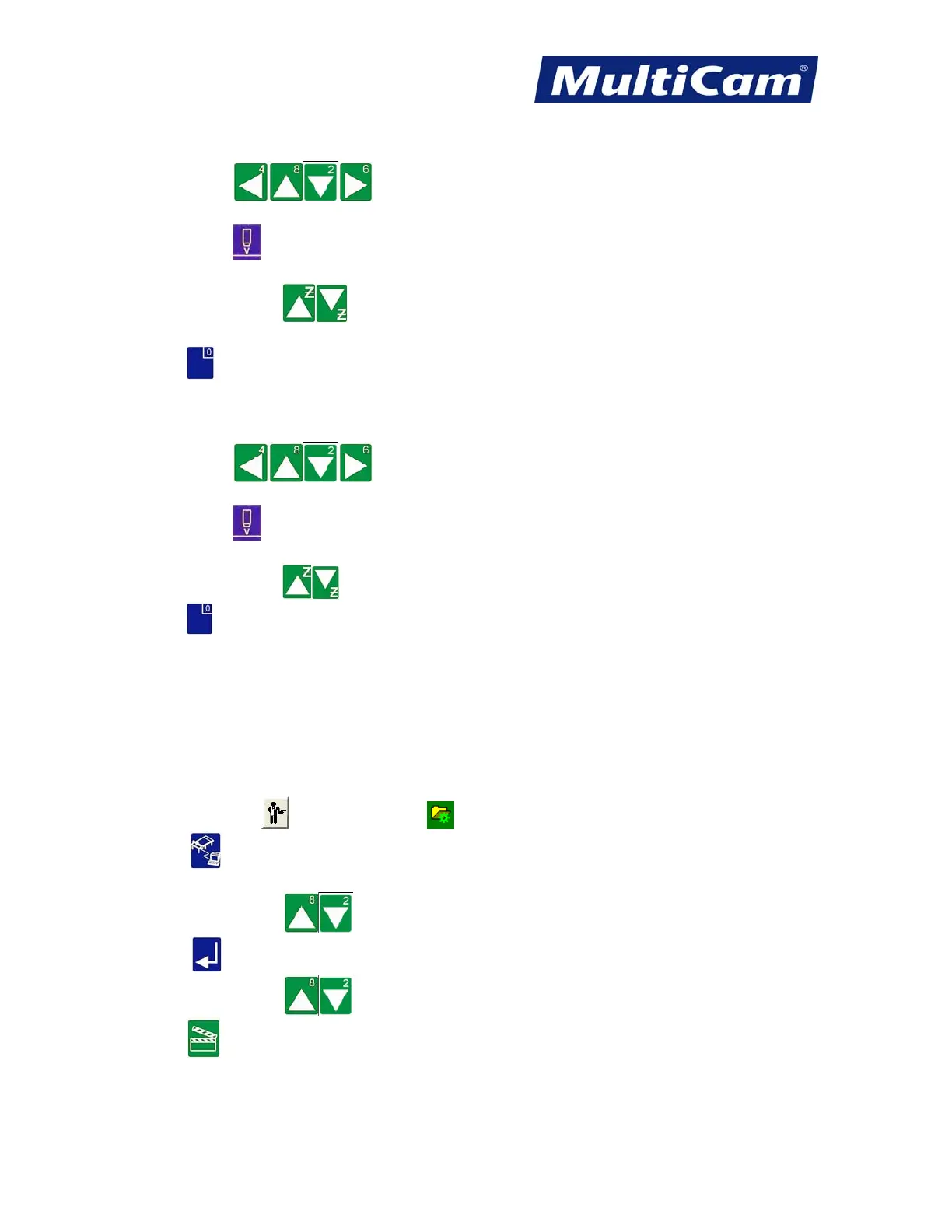

7. Set Surface for ferrous metals or machines with capacitive height sensors
Press Jog Arrows
to position the center of the head assembly over the material to be
cut.
Press Set Surface
.
Enter the material thickness.
Press Z-axis Jog Arrows
to lower the Z-axis until the head assembly is approximately 1/4” above
the material.
Press Zero
to begin the surfacing routine. This will cause the Z-axis to move down slowly until the tool
comes in contact with the surface block and then move up above the surface block to the Lift Height.
8. Set Surface for non-ferrous metals or machines without capacitive height sensors
Press Jog Arrows
to position the center of the head assembly over the material to be
cut.
Press Set Surface
.
Enter the material thickness.
Press Z-axis Jog Arrows
to position the surface sensor over the material to be cut.
Press Zero
to begin the surfacing routine. This will cause the Z-axis to move down slowly until the
surface sensor comes in contact with the surface block and then move up above the surface block to the
Lift Height.
9. Turn on Fume Extraction
Turn on fume extraction to prevent creating unsafe conditions. Operators should make sure that the fume
extraction system is turned off when the laser is off.
10. Access DNC
Verify that JobServer
or JobNameServer has been activated on the computer.
Press DNC
. This will display a list of job folders and job files, which are located in the
C:\Dncfiles directory.
Press X-axis Jog Arrows
until the appropriate folder is highlighted in blue.
Press Enter
to display the DNC files that are available in that particular folder.
Press X-axis Jog Arrows
until the appropriate file is highlighted in blue.
Press Start
to begin the file.
