RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL — REV. #0 (04/28/15) — PAGE 19
30 Rammax 1575
1230047 | 21.06.2013

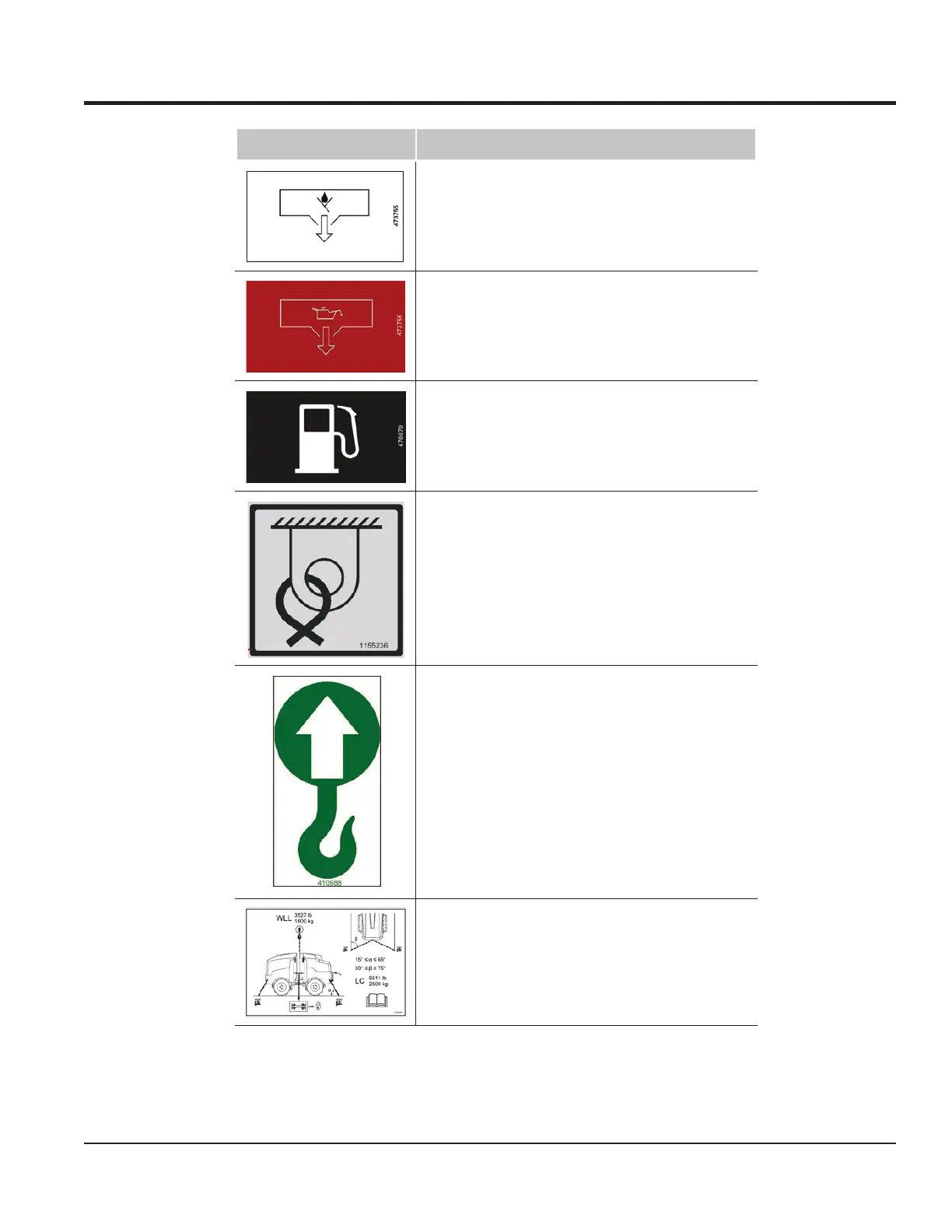

Location on roller: Chassis rear.
Designation: Hydraulic oil drain.
Explanation: Drain hole for the hydraulic oil
Location on roller: Chassis, front right.
Designation: Motor oil drain.
Explanation: Drain hole for the motor oil
Location on roller: Chassis rear.
Designation: Fuel.
Explanation: Filler neck for diesel fuel.
Location on roller: On the middle of the front and rear
chassis.
Designation: Tie-down point.
Explanation: Points on the roller at which lashing means
for securing the roller on the transport vehicle can be atta-
ched.
Location on roller: Roll bar, rear.
Designation: Suspension hooks.
Explanation: Points on the roller at which hoisting tackle
for lifting the roller can be attached.
Location on roller: Rear chassis, front upper left.
Designation: Lifting and tie-down points.
Explanation: Illustrates how the machine is to be loaded
and transported.
Notice stickers Meaning
SAFETY INFORMATION
