RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL — REV. #0 (04/28/15) — PAGE 55
Maintenance 75
1230047 | 21.06.2013
3 Reinstall the screw lid (1).
3.1 Important: Always grease the O-ring before screwing it in place.

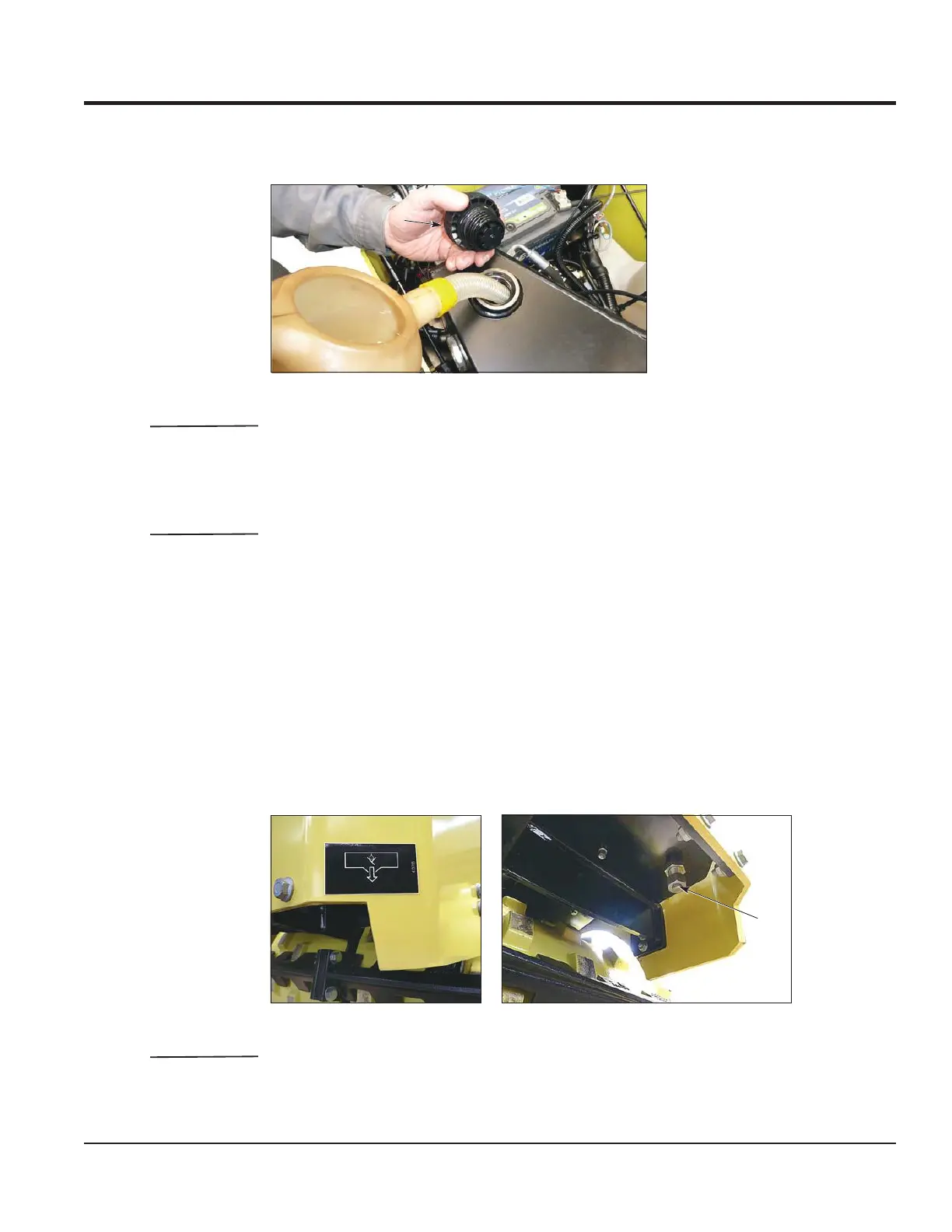

Fig. 9-12 Hydraulic oil filler neck
NOTE Observe the table of lubricants in chapter 9.14.
9.9.3 Draining the hydraulic oil
NOTE Only drain the hydraulic oil at operating temperature.
• The oil flows better.
• Residues in the tank will be flushed out with the oil.
1 Place a container (with at least a 30 liter capacity) under the hydraulic oil drain.
2 Remove the hydraulic oil tank lid.
3 Unscrew the cover screw (1) under the roller (AF size27 wrench).
4 Allow the oil to drain into the container.
5 Install the screw plug (1).
5.1 Tighten the screw connection hand tight.
Fig. 9-13 Hydraulic oil drain
NOTE When you drain the hydraulic oil, please also replace the hydraulic oil filter.
See chapter 9.9.5.
1
1
MAINTENANCE
