7.3 Driving and braking
7.3.1 Position of the operator
Distance to roller:

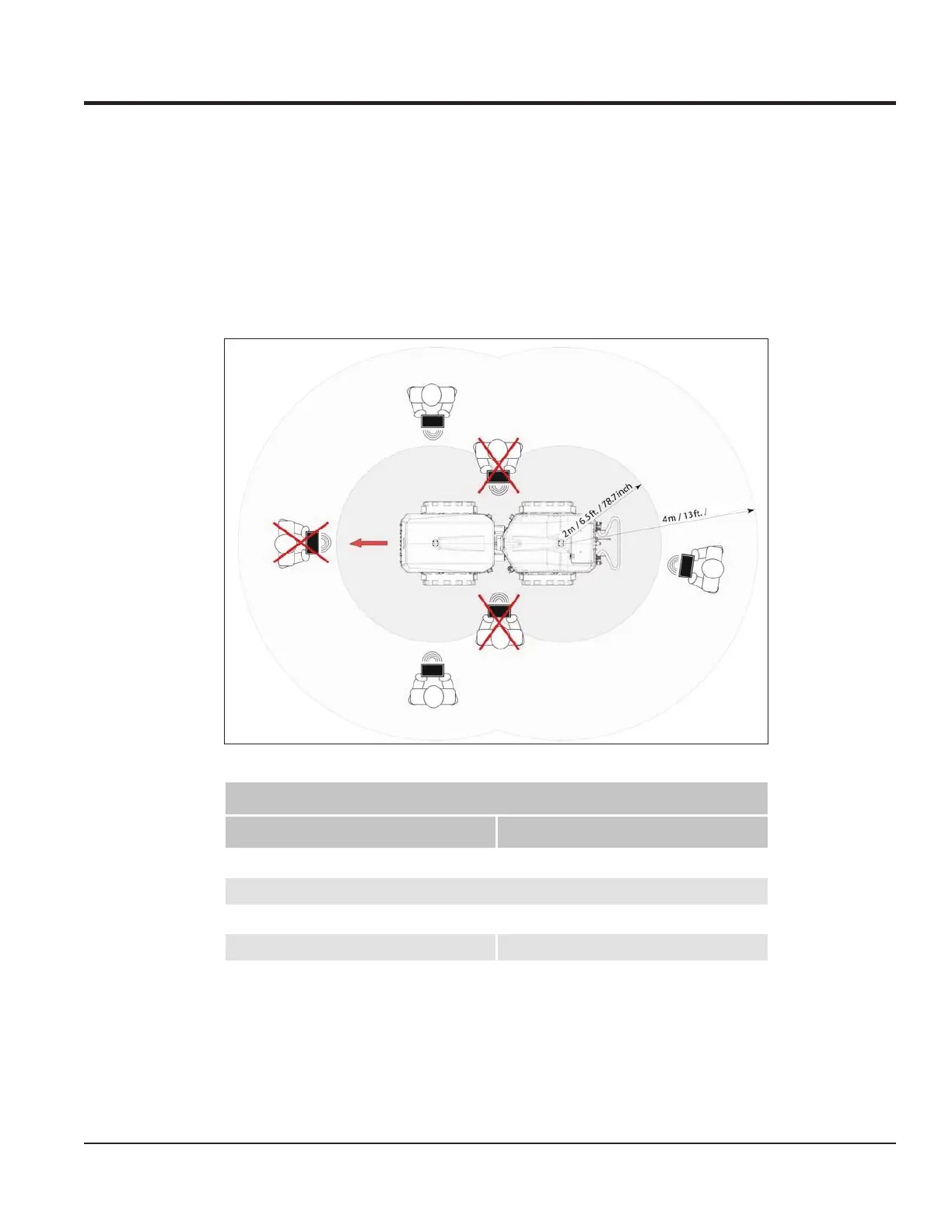

Fig. 7-3 Position of the operator/Distance to roller
< 6.5 ft (2m) Operation is not possible.
> 13 ft (4m) Cable is too short, operation is not possible (do not overstretch the cable).
Overview of functions
Operation with the cable Operation with the infrared sensor
Automatic pairing
Steering functions
Vibration functions
max. range = 13 ft (4 m) max. range = 65 ft (20 m)
Close proximity shutdown, 6.5 ft (2 m)
156 in
