10.4.1 Inspect for damage
1 Open both hoods.
2 Disconnect the ground cable (-).

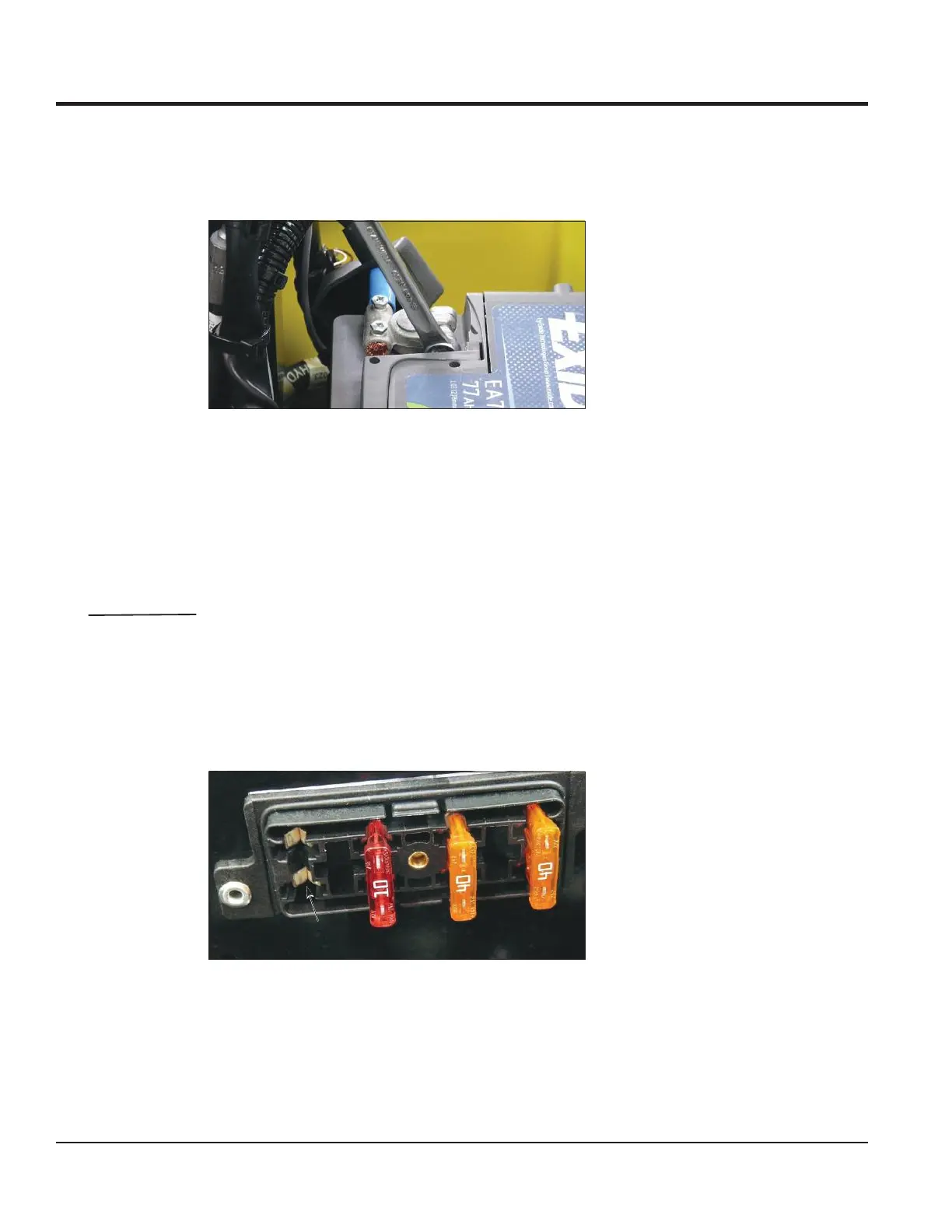

Fig. 10-9 Disconnect the battery
3 Inspect the machine for visible damage.
3.1 Especially for fluids which have leaked out.
4 Empty any containers (tanks) which may be defective.
10.4.2 Prevent an oil shock
NOTE Before you begin the dismantling and disassembly of parts, you must thoro-
ughly clean the area around the valve cover, cylinder head and electrical steel.
If no visible damage is found or it has already been repaired, perform the following
procedure:
Removal of parts 1 Remove fuse F21 in the engine compartment.
Fig. 10-10 Engine compartment fuses
2 Remove the air filter element.
2.1 If it is oily, replace it.
3 Clean the air filter housing.
4 Disassemble the air filter hose at the top.
1
23 4
1
23
4
F21
REPAIR
