RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL — REV. #0 (04/28/15) — PAGE 79
Repair 101
1230047 | 21.06.2013
Turn the engine
over (rotate
crankshaft) with a
wrench
Ensure that the oil which may have collected is displaced by the piston.

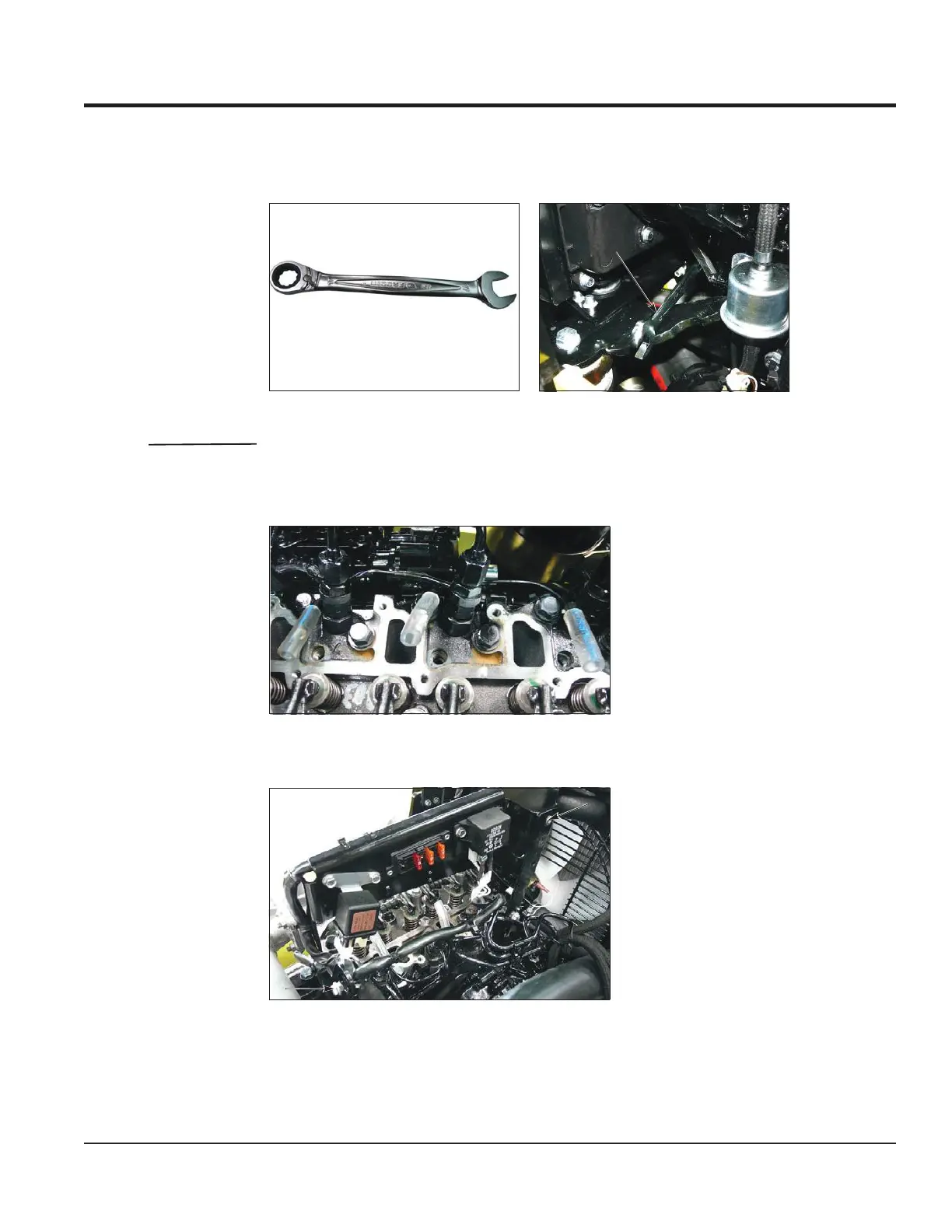

1 Turn the engine over twice clockwise by means of the central bolt (AF size 17)
on the crankshaft using a box-end ratchet wrench (1).
Fig. 10-17 Box-end ratchet wrench/Rotate crankshaft
NOTE Risk of cable fire or short circuit.
Insulate the connection cables for the glow plugs, e.g. using a piece of hose.
Fig. 10-18 Insulate the connection cable
2 Refasten the electrical steel using two screws (1).
Fig. 10-19 Fasten electrical steel
3 Reconnect the battery ground cable (-).
1
1
23 4
1
23 4
1
1
REPAIR
