MULTIQUIP Rammax Series - Pendulum Support; Air Intake; Air Filter Cartridge

RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL — REV. #0 (04/28/15) — PAGE 61
Maintenance 81
1230047 | 21.06.2013
5a Damage: replace the cartridge.
6a Soiling: clean the cartridge.

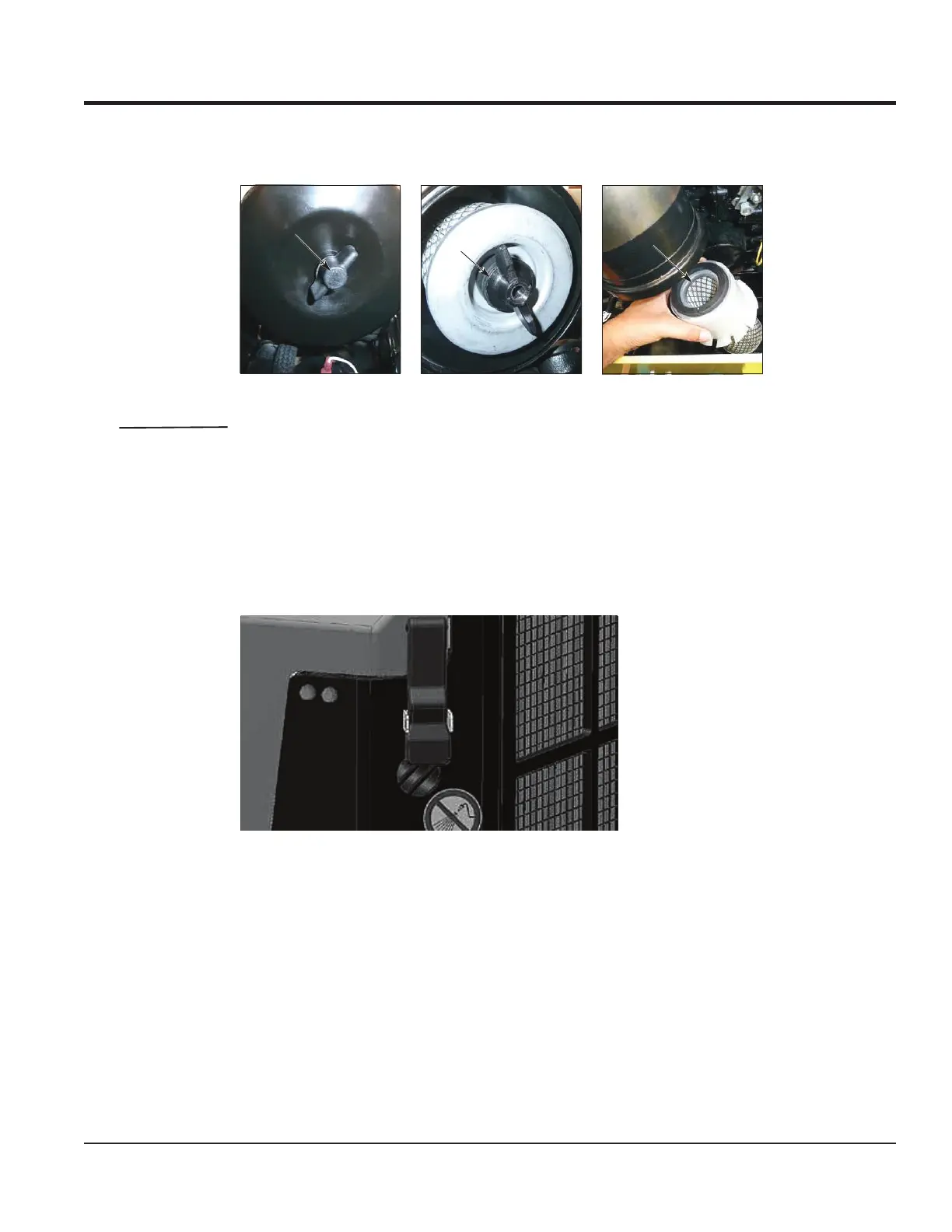

Fig. 9-24 Air filter cartridge
NOTE If the machine is used on very dusty surfaces, the air filter must be checked for
clogging once per week.
• When cleaning/replacing the cartridge, take care that no dirt enters the in-
take hose.
Air intake 1 Check the air intake for:
1a Soiling: clean the intake opening.
Fig. 9-25 Air intake
9.11.3 Pendulum support
Check the pendulum support once a year for excessive play.
1 Attach the roller to a crane (central lifting point).
The play can be checked by alternately applying and releasing upward pressure to
the roller (visual inspection).
1
2
3
MAINTENANCE
