RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL — REV. #0 (04/28/15) — PAGE 57
Maintenance 77
1230047 | 21.06.2013
4.1 Observe the position of the locking cam.
5 Turn the filter element fully clockwise to the stop.

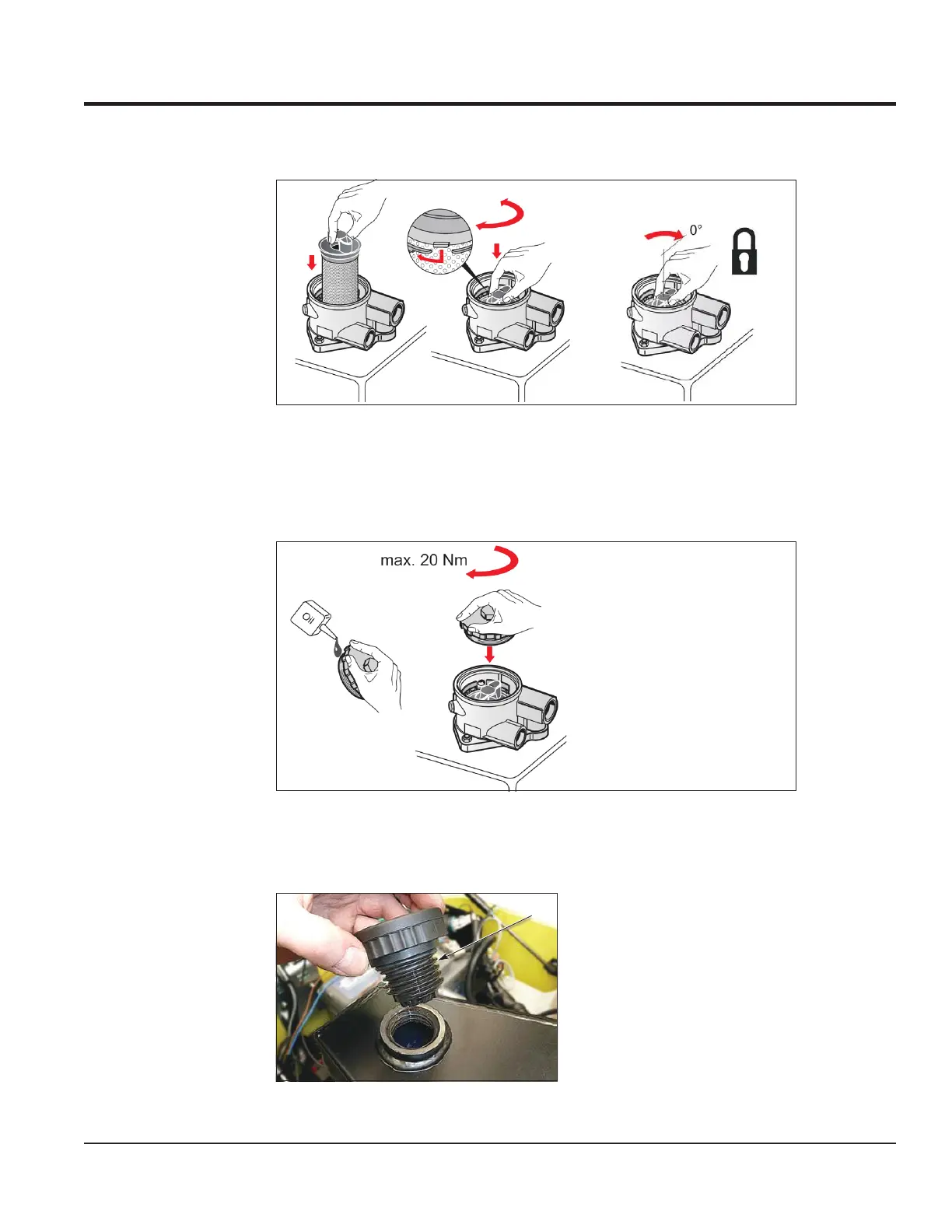

Fig. 9-16 Replacing the hydraulic oil filter, steps 4 to 6
6 Lightly oil the sealing ring on the filter lid.
7 Put the filter lid in place.
7.1 Tighten the lid with a torque wrench (max. torque, 20Nm).
Fig. 9-17 Replacing the hydraulic oil filter, steps 7 to 8
9.9.6 Replacing the ventilation filter
Fig. 9-18 Ventilation filter
4
4.1 5
87
1
MAINTENANCE
