9.8.2 Topping up the engine oil
1 Top up the engine oil at one of the two oil filler necks.
1a Filler neck on the left-hand side of the engine.
1b Filler neck on the engine.

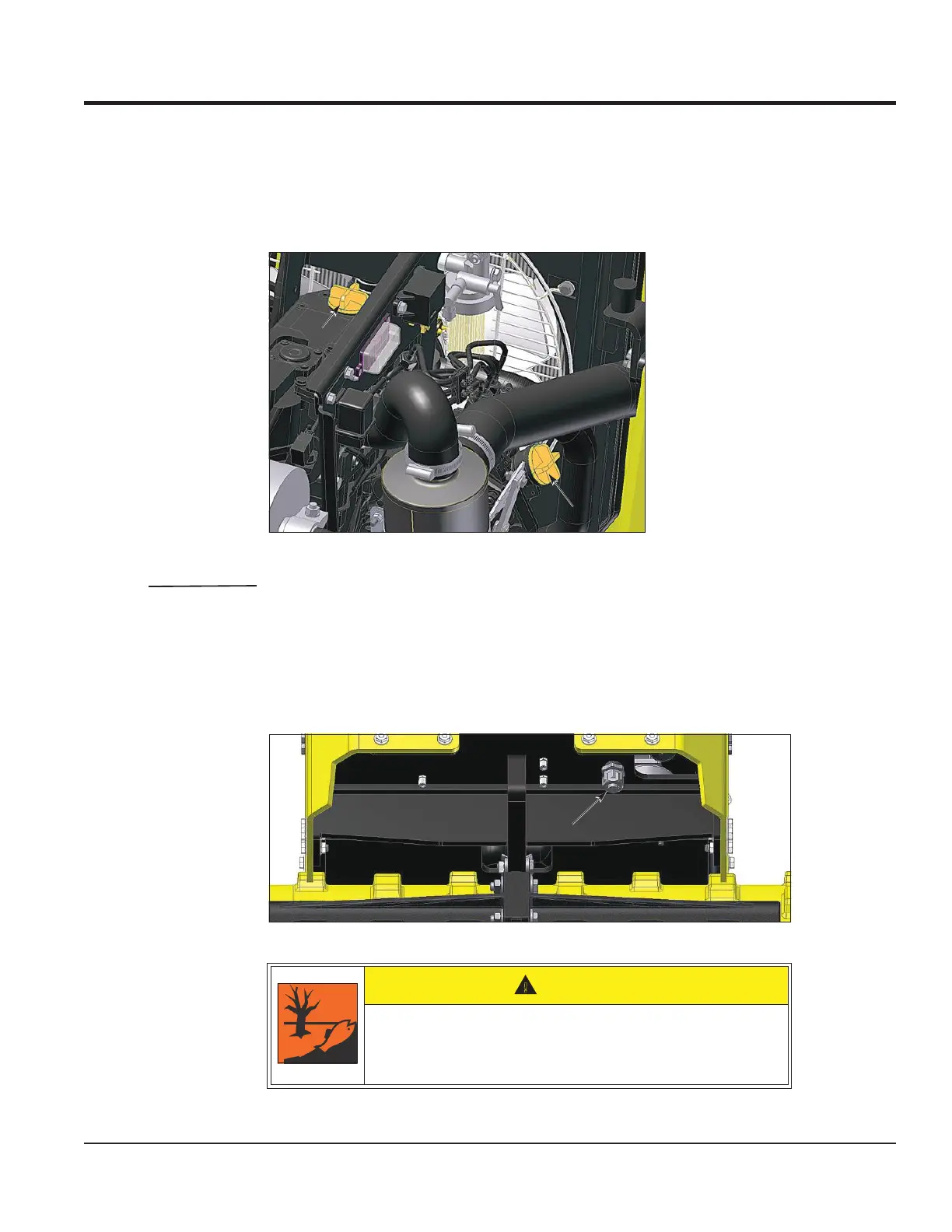

Fig. 9-9 Filler neck to the left and filler neck on top.
NOTE In order to guarantee operating safety of the engine for the long term, you must
not put any additives in the engine oil.
9.8.3 Draining engine oil
The engine oil drain (1) is located under the chassis at the front left.
Fig. 9-10 Roller turned fully /Engine oil drain
a
b
CAUTION
Environmental hazard through operating materials!
• Do not allow any liquids to enter drains, the soil or the environ-
ment.
