5.1 Display unit
5.1.1 Control lamps
The control lamps for engine oil pressure and charging light up when the ignition is
switched on. They extinguish once the engine is running.
5.1.2 Control lamp functions
Error The Error control lamp lights as soon as the controller recognizes an error. Error
codes are shown on the LED display.
1 Check whether the desired function is working. (This also applies when the tilt
sensor is triggered.)
If the battery charging lamp is still lit after carryin
g out these checks, call a specialist.

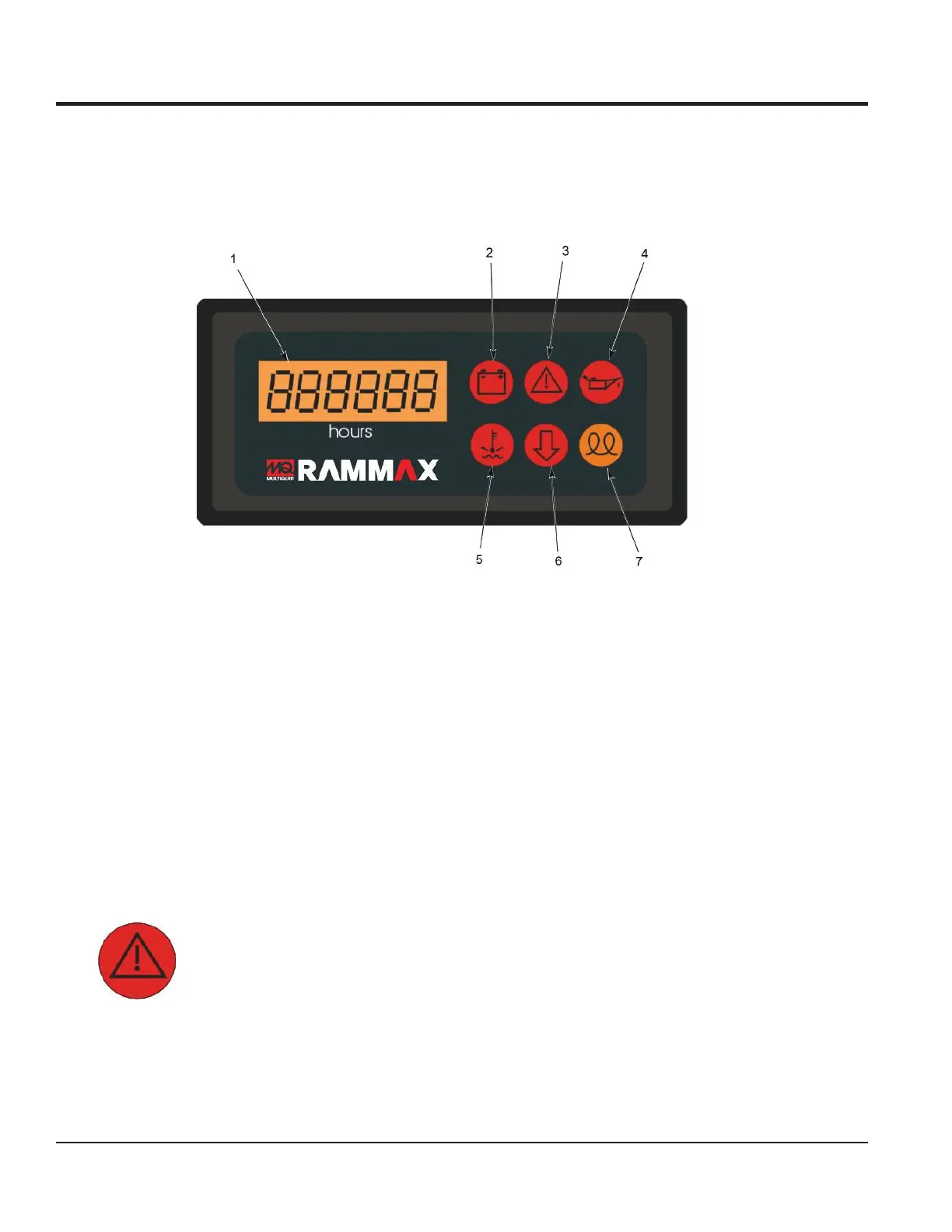

1 Display/operating hours counter
2 Control lamp f
or battery charge level (charge control)
3 Error control lamp
4 Control lamp for engine oil pressure
5 Control lamp for cooling water temperature
6 Control lamp for shutdown bar
7 Control lamp for pre-heating
OPERATING AND DISPLAY ELEMENTS
