RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL — REV. #0 (04/28/15) — PAGE 29
34stnemele yalpsid dna gnitarepO
1230047 | 21.06.2013
Automatic pairing
Tab. 5-6 Automatic pairing display
NOTE This procedure normally only takes a maximum of about 3seconds. If this blin-
king lasts longer or should even become permanent, there is a problem with
pairing:
• A cable break in one of the signal lines
• A short circuit in one of the signal lines
As long as this blinking pattern remains, no control signals will be sent to the
machine controller.
Automatic pairing occurs at the moment the cable is unplugged, or, if the cable
is plugged in, when the infrared transmitter is switched on.
Special cases
● When the infrared transmitter is switched on, both LEDs are switched on briefly.
This feature helps to determine that the LEDs are still functioning.
● As soon as the cable is unplugged from the handheld transmitter or from the rol-
ler, the red LED lights up for about 1 second.
5.2.3 Cable connection

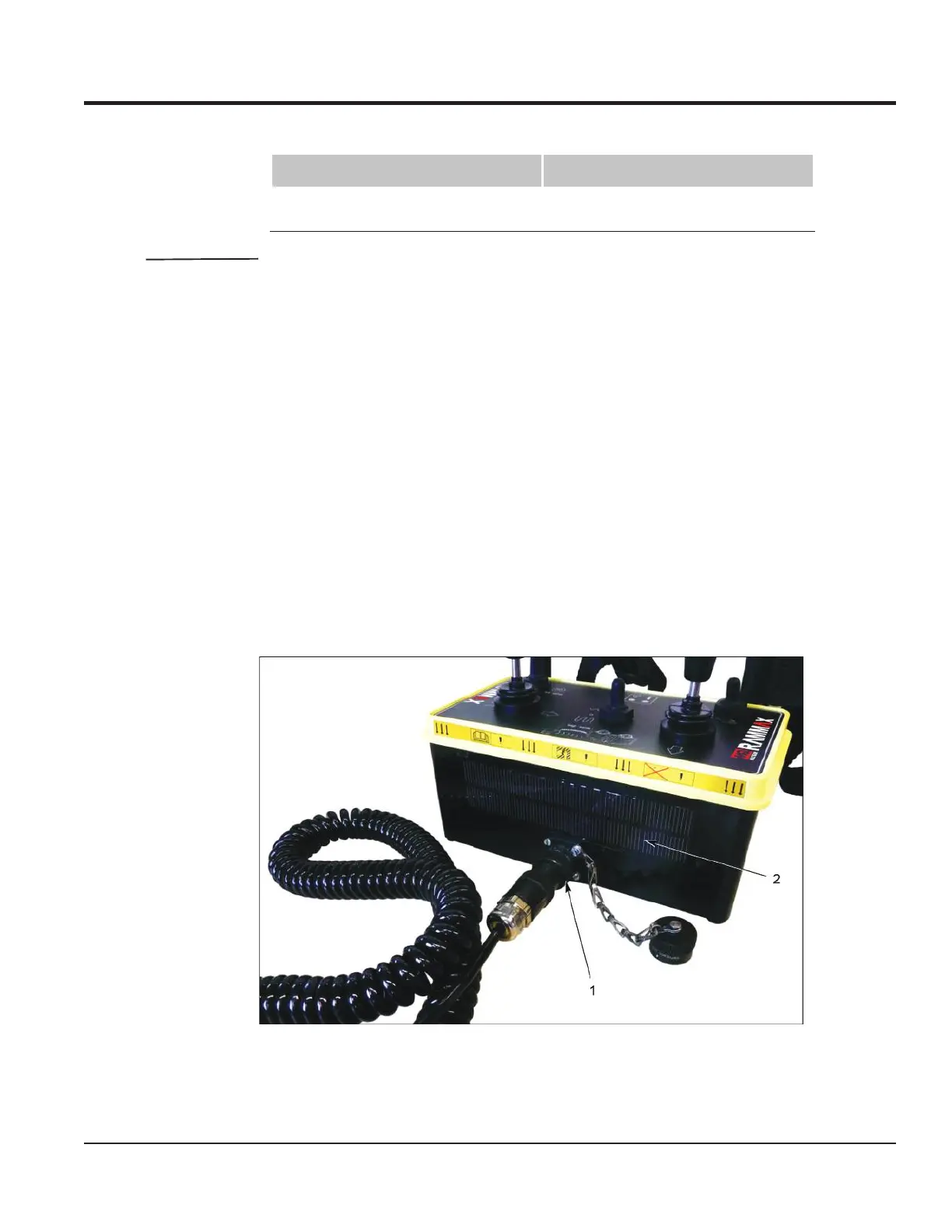

Fig. 5-3 Spiral cable connector
Display Cause
The green and red LEDs are blinking in uni-
son quickly.
The infrared transmitter is coupled with the
machine controller.
1 Spiral cable connector/protective cover fastener
2 Solar cells/Transmission elements
OPERATING AND DISPLAY ELEMENTS
