NOTE Before replacing the fuse, you must identify and remove the cause of the fault.
Always replace a defective fuse (1) with a functioning fuse (2) of the same amperage
(according to the label or color of the fuse).

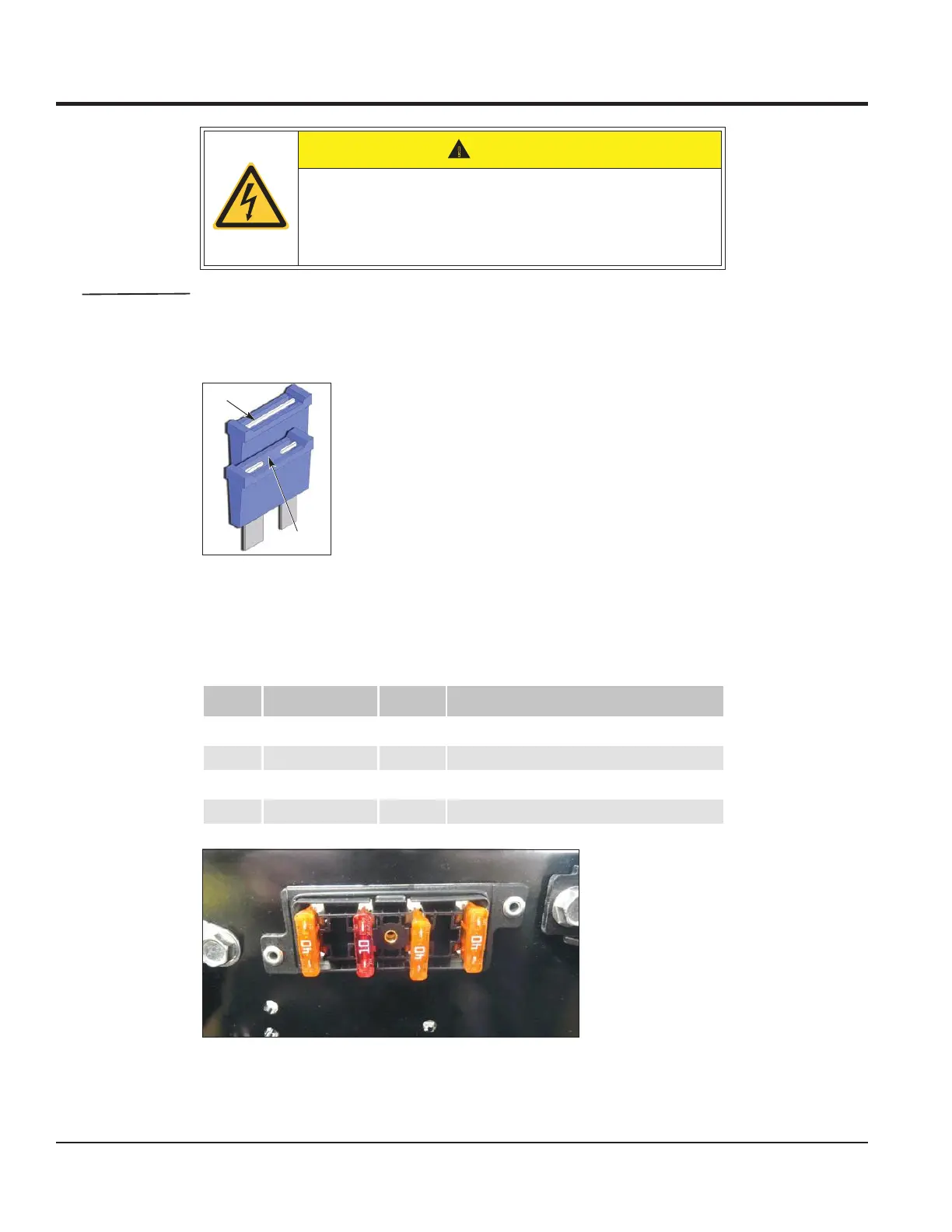

10.2.1 Engine compartment fuses
The fuses are located above the diesel engine.
Tab. 10-1 Engine compartment fuses
Fig. 10-3 Engine compartment fuses
CAUTION
Risk of injury through short circuit and cable fire when hand-
ling electrical parts!
• Always disconnect the power supply when working on the elec-
trical system.
!
1
2
Item Fuse No. Power Fuse-protected circuit
1 F21 40 A Pull-in solenoid
2 F22 10 A Diesel pump, alternator
3 F23 40 A Operating speed
4 F24 40 A Pre-heating coil
1
23
4
