MULTIQUIP Rammax Series - Fuel filter element replacement; Water separator filter draining and cleaning

RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL — REV. #0 (04/28/15) — PAGE 51
Maintenance 71
1230047 | 21.06.2013
9.7.5 Fuel filter element

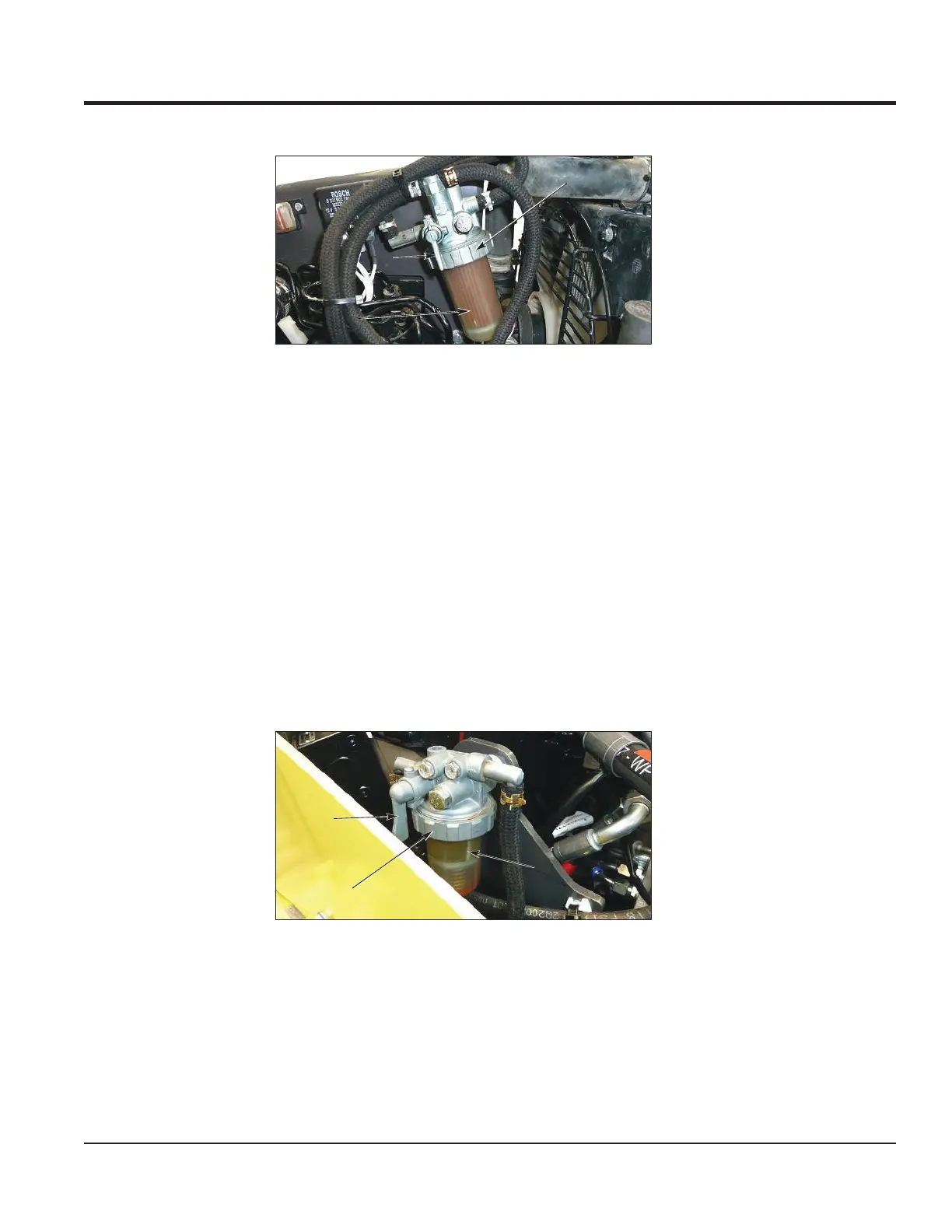

Fig. 9-6 Fuel filter
Replace fuel filter element (1) according to the maintenance plan.
1 Close stop cock (3).
1.1 Move to OFF.
2 Unscrew the filter housing (2).
3 Remove the old filter element (1).
4 Insert new filter element (1).
5 Screw the filter housing (2) on.
6 Open stop cock (3).
6.1 Move to ON.
9.7.6 Water separator filter element
Fig. 9-7 Water separator
Drain filter
housing
If there is water in the filter housing, the housing must be drained at once.
1 Close stop cock (3).
1.1 Move to OFF.
2 Unscrew filter housing and empty.
1
3
2
2
3
1
MAINTENANCE
