9.7.3 Draining fuel
1 Unscrew the cover screw (1) under the roller (AF size27 wrench).
2 Place a container under the drain tap.
3 Drain off the diesel.
4 Install the screw plug (1).
4.1 Tighten the screw connection hand tight.

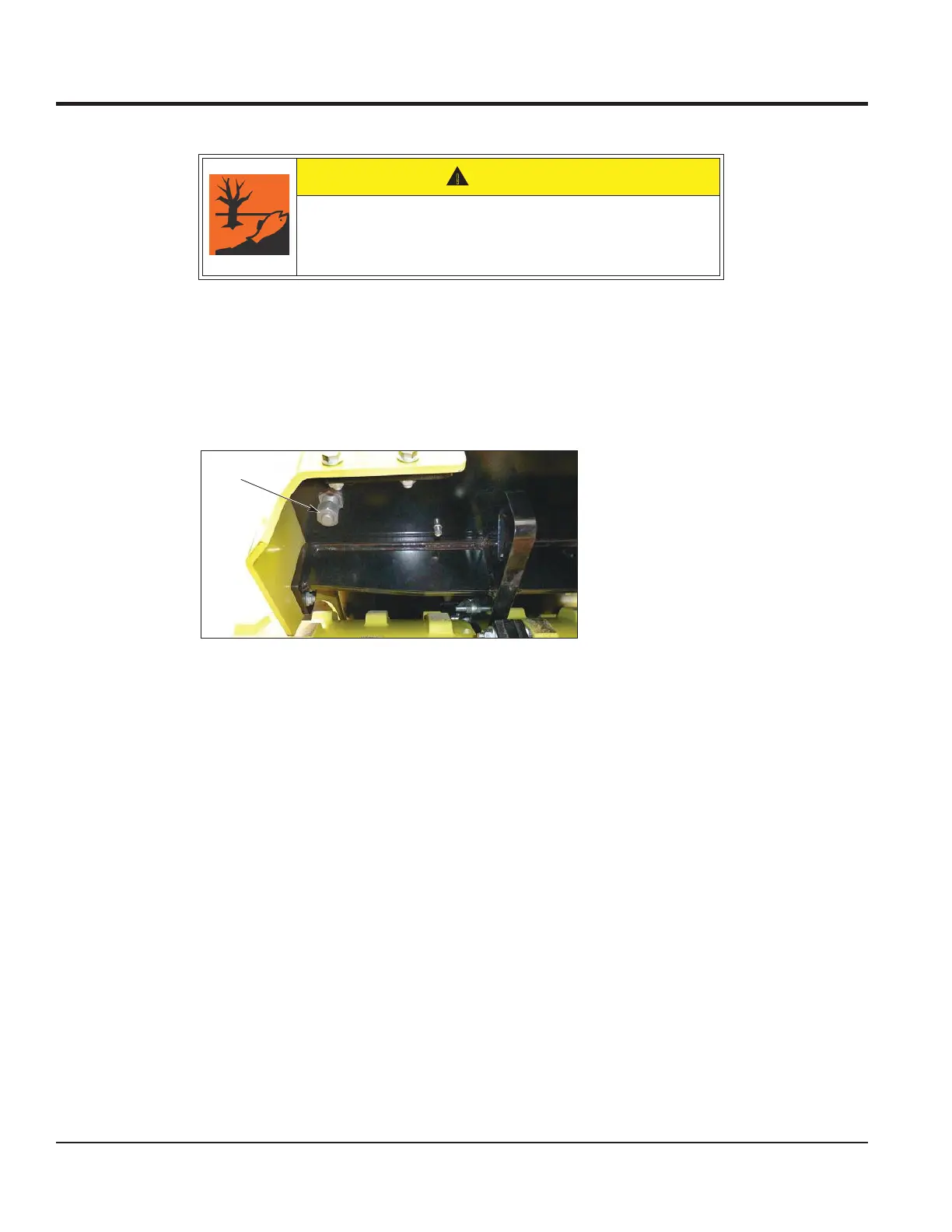

Fig. 9-5 Diesel drain, rear left on chassis
9.7.4 Cleaning the fuel tank
Over time, condensation water gathers in the fuel tank. It must be drained once a
year.
1 Unscrew the cover screw (1) under the roller (AF size27 wrench).
2 Place a container under the drain tap.
3 Allow about 1/2 liter of fluid to drain.
First, the water which has collected on the bottom of the tank will run out.
4 Install the screw plug (1).
4.1 Tighten the screw connection hand tight.
CAUTION
Environmental hazard through operating materials!
• Do not allow any liquids to enter drains, the soil or the environ-
ment.
!
