PAGE 8 — RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL — REV. #0 (04/28/15)

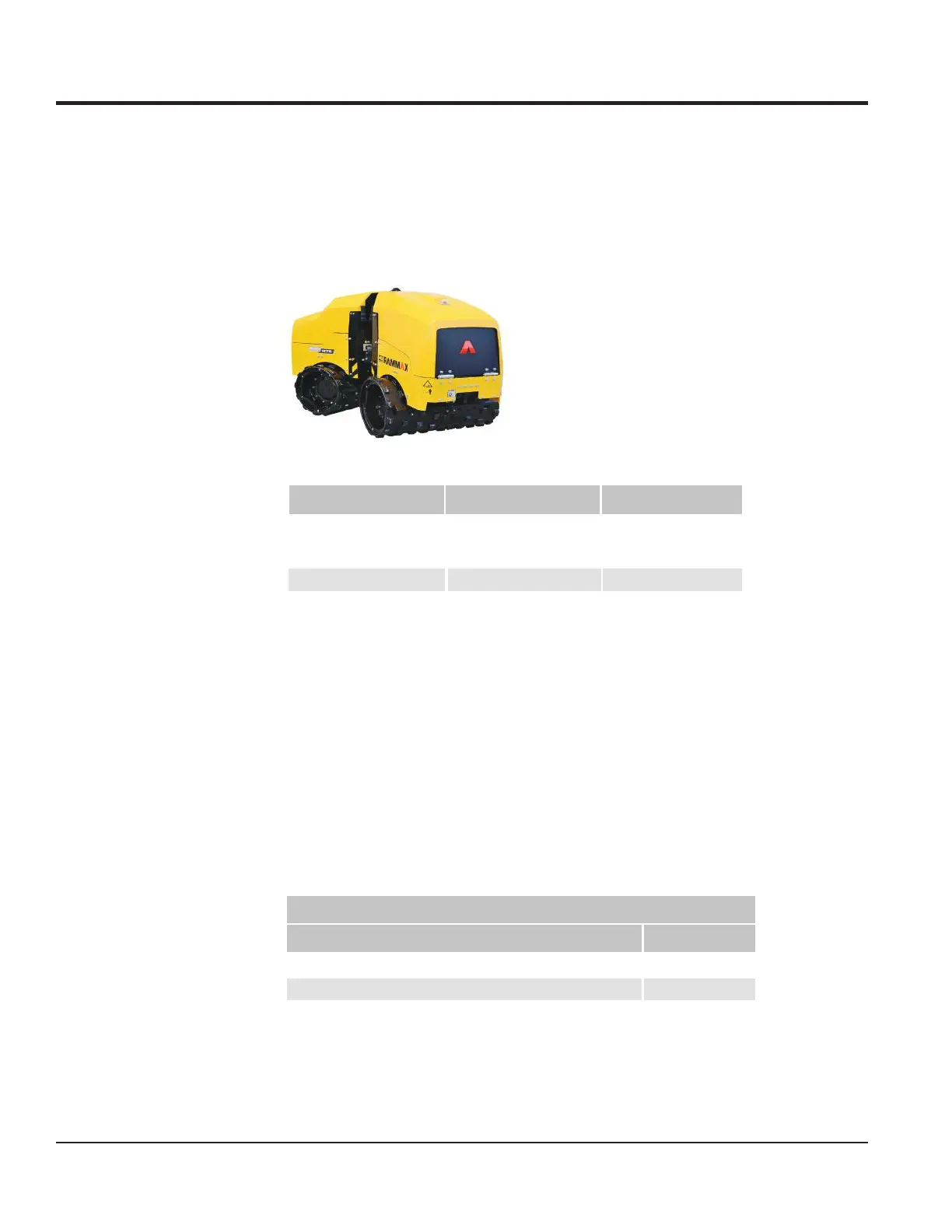

2.1 Identification of the roller
2.1.1 Machine types
The data given below serve to identify the models. The machine models differ only
in terms of weight and the width of the roller drum.
Tab. 2-1 Rammax 1575
2.2 Product data
2.2.1 Dimensions
Fig. 2-1 1575 dimensions
2.2.2 Specifications
Tab. 2-2 Rammax 1575 performance data
Model Roller Drum Width Weight
24 in (640 mm)
5751 xammaR
Rammax 157533
Rammax 1575
Roller drum width in (mm) 24 (640) 33 (850)
Service weight according to CECE lbs (kg)
Static linear load lbs/in (kg/cm)
10.1 (11.6) 7.7 (8.9)
Inside turning radius in (mm) 61 (1541) 57 (1436)
3,087 lbs (1400 kg)
3,197 lbs (1450 kg)
3,197 (1450)
3,087 (1400)
3,197 lbs (1450 kg)
with 24" drums
with drum rings 33 in (850 mm)
33 in (850 mm)
PRODUCT DESCRIPTION
Outside Turning Radius-in (mm) 86.25 (2,191) 90 (2,286)
