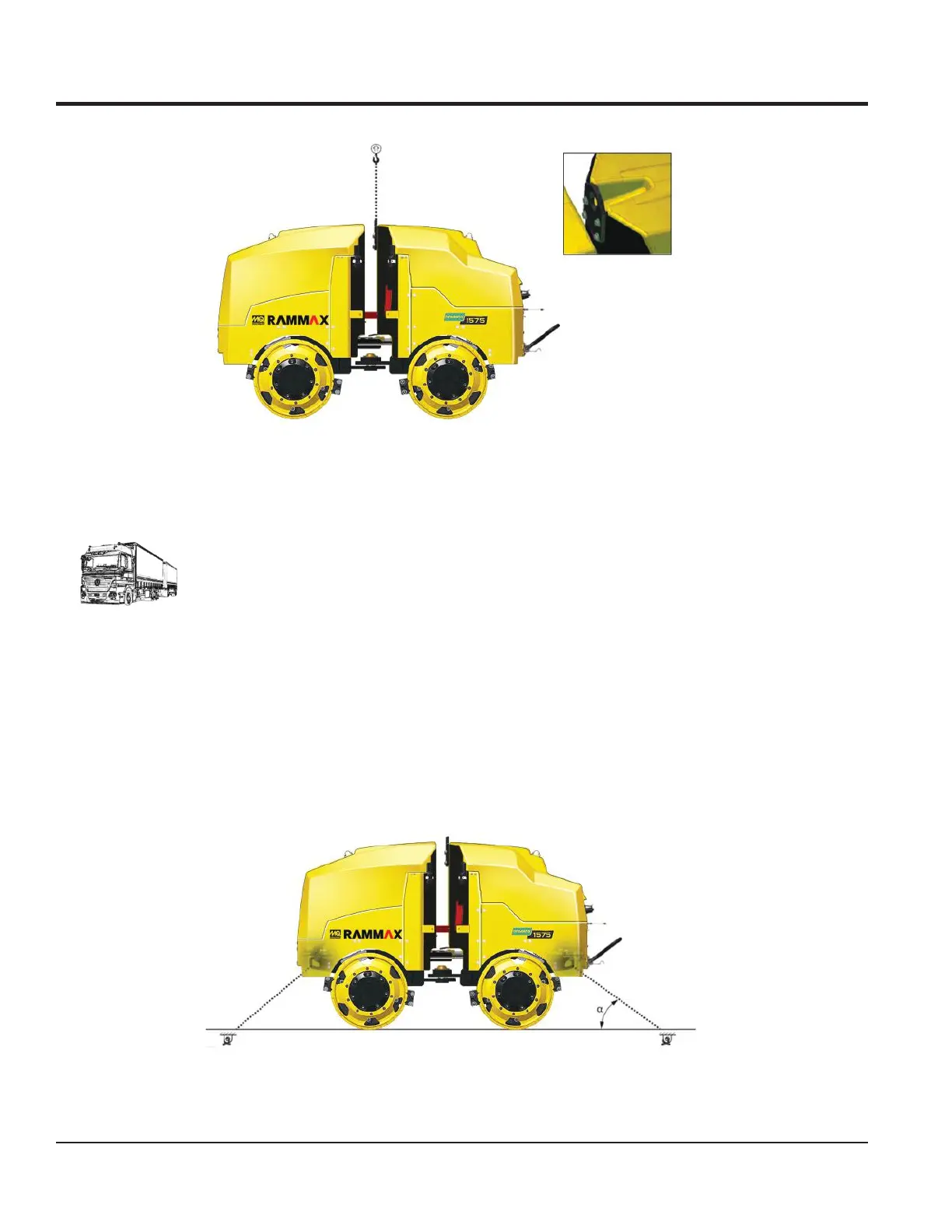

Fig. 12-2 1-point lifting eye
12.2.2 Securing the roller on the transporter
1 Bring the joint protection into place.
2 Attach the lashing straps to the lashing rings on the roller and on the truck
2.1 Lashing method: Direct lashing/diagonal lashing as shown in photo
2.2 Use four lashing straps with a permissible tensile force of LC =
2,500daN
The lashing rings on the roller are designed for a permissible tensile force of
2,500 daN.
Permissible angle ranges for diagonal lashing:
● 15° ≤ α ≤ 65°
● 30° ≤ β ≤ 75°
Fig. 12-3 Lashing the roller/side view
