MULTIQUIP Rammax Series - Forward and backward movement control; Steering control; Gear selection for work and transport

PAGE 36 — RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL — REV. #0 (04/28/15)
Operation 53
1230047 | 21.06.2013
Controller
opening angle

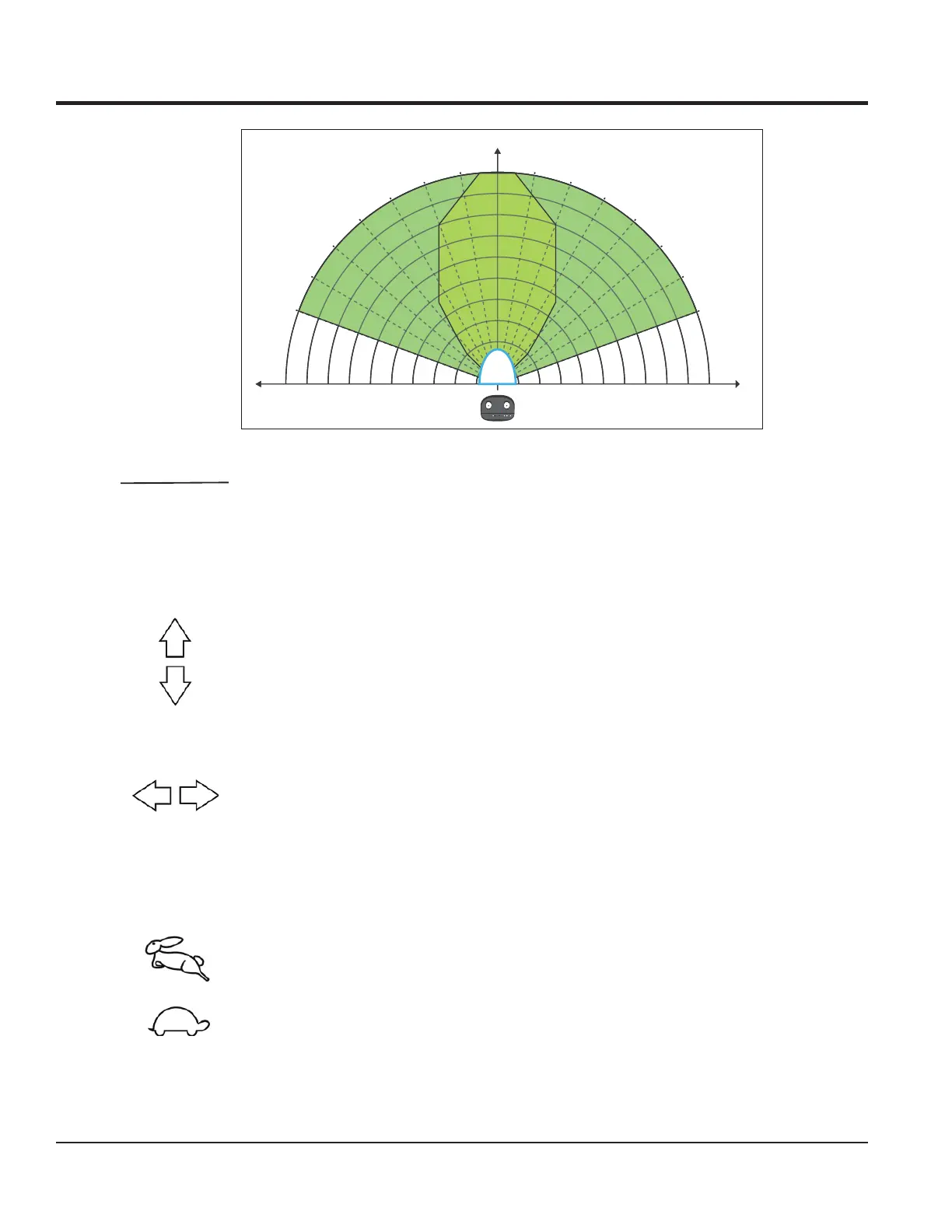

Fig. 7-4 Controller opening angle
NOTE After a function has been executed, the engine speed is automatically increa-
sed to the working speed. If no function is executed for 15seconds, the engine
speed is automatically reduced to idling speed.
7.3.2 Driving forwards/backwards
1 Move the switch:
2a Toward the front: The roller moves forward.
2b Toward the rear: The roller moves backward.
7.3.3 Steering left/right
1 Move the switch:
2a Toward the left: The roller moves left.
2b Toward the right: The roller moves right.
7.3.4 Work gear /Transport gear
The roller is equipped with two gears.
1 Move the switch:
2a Toward the top (rabbit): the hydraulic system switches to the "transport gear"
drive level.
The roller drives at a high speed.
2b Toward the bottom (0): the hydraulic system switches to the “working gear"
drive level. The roller drives at a low speed.
50°
60°
70°
40°
20°
30°
10°
0°
2 4 6 8 10 12 14 16 18 20 m
OPERATION
