9.13 Brake test
The function of the brakes must be checked periodically.
9.13.1 Cable/connector Y9
The cable/connector Y9, which must be disconnected for the brake test, is located
at the front under the hood.

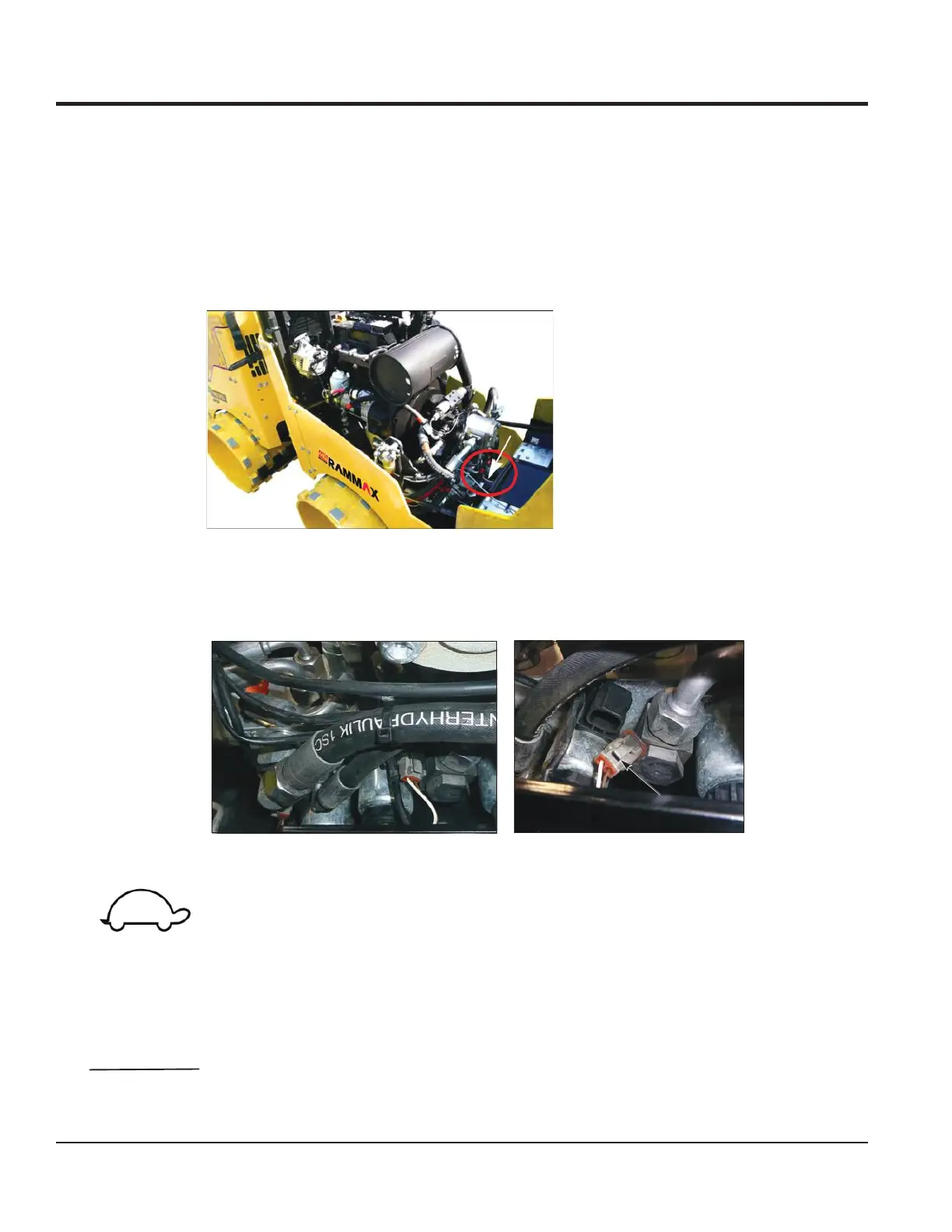

Fig. 9-29 Cable/ connector Y9 under the hood
9.13.2 Brake test
Fig. 9-30 Cable/connector Y9 under the hood
1 Put the machine into the work gear.
2 Disconnect connector Y9 (1) from the connector housing at the magnet.
3 Perform the forwards and backwards driving functions using the infrared sen-
sor.
4 Check all four roller drum
s for rotation (slipping).
If a brake is defective,
the corresponding roller drum will rotate.
NOTE If a brake is defective, the roller is no longer safe for operation. Contact your
authorized dealer and have the roller repaired professionally.
