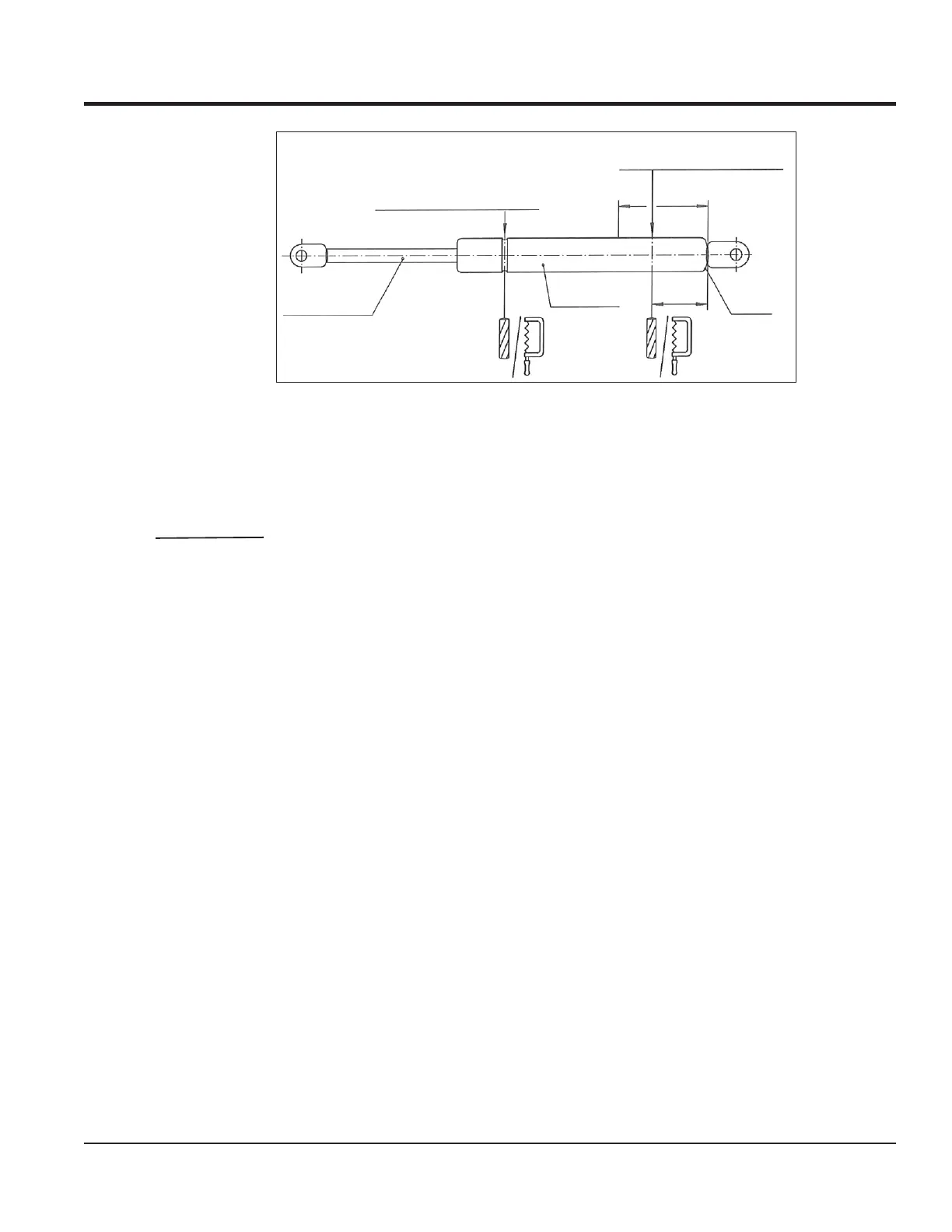

Fig. 13-1 Removal and depressurization of the gas strut
NOTE If disposal according to these regulations is not possible, ask your authorized
dealer.
1. Saw cut/hole position: Cut or drill into the pressurized tube about 20mm from
the bottom.
2. Saw cut/hole position: Cut or drill into the pressurized tube in the bead.
2. Saw cut/drilled hole
1. Saw cut
/drilled hole
Piston rod
Bottom
about
Pressurized
tube
X
DISPOSAL
