GS108T Smart Switch Software Administration Manual
3-16 Managing System Settings
v1.0, May 2007
.

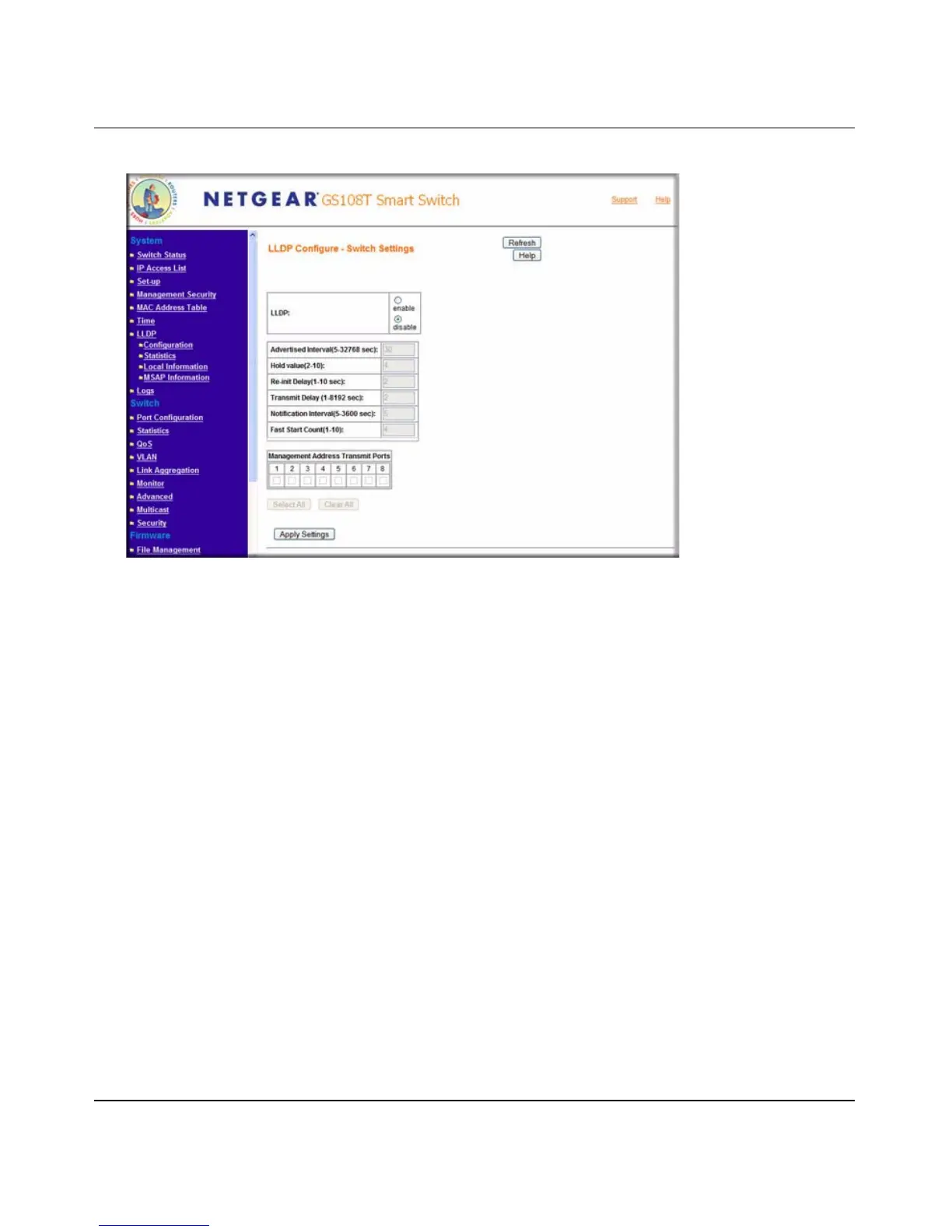

The following LLDP configuration information is displayed:
• Advertised Interval: The interval at which LLDP frames are transmitted on behalf of this
LLDP agent.
• Hold value: A multiplier to Advertised interval. The result would be the TTL value for the
information advertised.
• Re-init Delay: The minimum delay period before from the time a ports becomes disabled until
re-initialization.
• Transmit Delay: The delay between successive LLDP frame transmissions initiated by value/
status changes in the local system.
• Notification Interval: The interval at which notification are generated when remote MSAP
information changes.
• Fast Start Count: Indicates the number of successive LLDP frame transmissions for one
complete Fast Start interval. The default value 4.
• Management Address Transmit Ports: Indicates the ports on which the management address
will be transmitted.
Figure 3-14

NETGEAR ProSafe GS108 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	1 Gbit/s
Full duplex	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Latency	20 μs
Dimensions (WxDxH)	235.5 x 100.8 x 27 mm
Power requirements	5 V @ 2.8 A DC
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Noise level	0 dB
Mean time between failures (MTBF)	91.500 h
Power consumption (typical)	14 W
Safety	UL (UL 1950), CUL, C-Tick
LED indicators	Link, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	760 g
