NETGEAR ProSafe GS108 User Manual

GS108T Smart Switch Software Administration Manual
Managing System Settings 3-29
v1.0, May 2007
.
The following information is available for each server log:
• ID: ID of the server log given by the system.
• Server: IP Address of the remote server.
• UDP Port: UDP port number to connect with the server.
• Facility: Type of facility.
• Description: Description of server log.
• Minimum Severity: All levels of severity above this minimum severity will be included
for logging.
2. Add or remove server logs on the Server Logs list.
Adding a server log to the Server Logs list

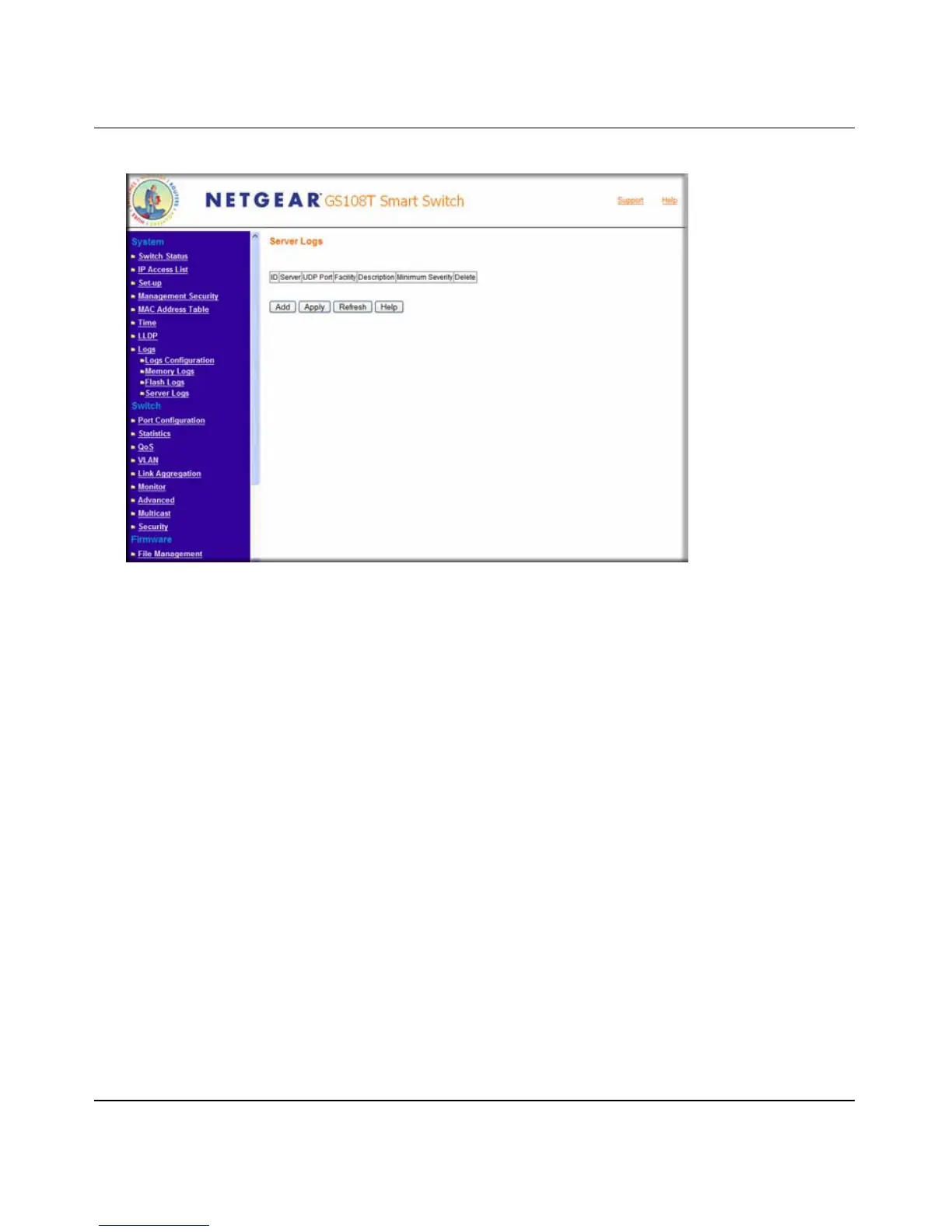

a. Click Add on the Server Logs screen. A screen similar to that shown below appears.
Figure 3-22

NETGEAR ProSafe GS108 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	1 Gbit/s
Full duplex	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Latency	20 μs
Dimensions (WxDxH)	235.5 x 100.8 x 27 mm
Power requirements	5 V @ 2.8 A DC
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Noise level	0 dB
Mean time between failures (MTBF)	91.500 h
Power consumption (typical)	14 W
Safety	UL (UL 1950), CUL, C-Tick
LED indicators	Link, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	760 g
