NETGEAR ProSafe GS108 User Manual

GS108T Smart Switch Software Administration Manual
Configuring the Switch 4-37
v1.0, May 2007
.

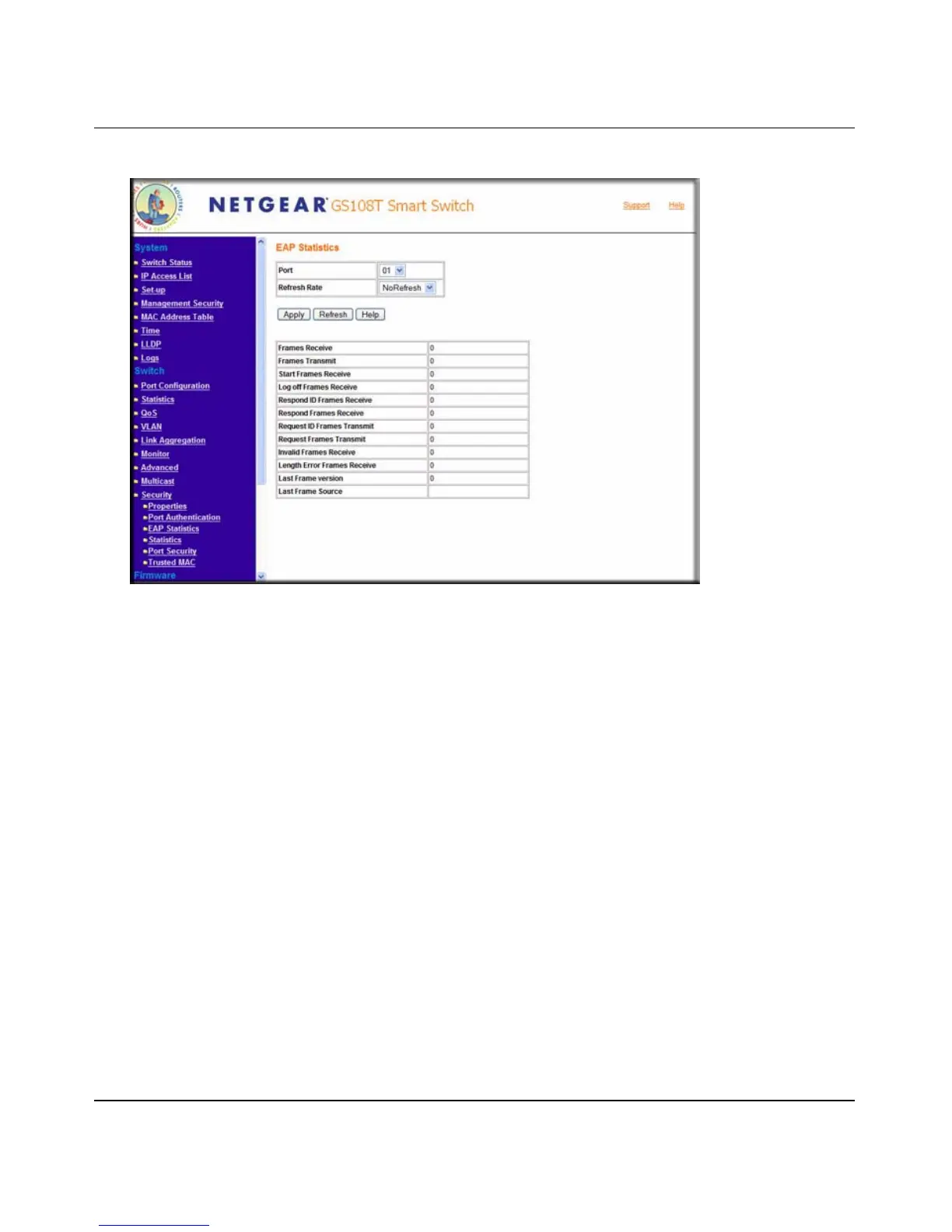

2. The EAP Statistics page contains the following fields:
• Port: Indicates the port, which is polled for statistics.
• Refresh Rate: Indicates the amount of time that passes before the EAP statistics are
refreshed. The possible field values are:
– 15 Sec: Indicates that the EAP statistics are refreshed every 15 seconds.
– 30 Sec: Indicates that the EAP statistics are refreshed every 30 seconds.
– 60 Sec: Indicates that the EAP statistics are refreshed every 60 seconds.
– No Refresh: Indicates that the EAP statistics are not refreshed.
• Frames Receive: Indicates the number of valid EAPOL frames received on the port.
• Frames Transmit: Indicates the number of EAPOL frames transmitted via the port.
• Start Frames Receive: Indicates the number of EAPOL Start frames received on the port.
• Log off Frames Receive: Indicates the number of EAPOL Logoff frames that have been
received on the port.
Figure 4-54

NETGEAR ProSafe GS108 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	1 Gbit/s
Full duplex	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Latency	20 μs
Dimensions (WxDxH)	235.5 x 100.8 x 27 mm
Power requirements	5 V @ 2.8 A DC
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Noise level	0 dB
Mean time between failures (MTBF)	91.500 h
Power consumption (typical)	14 W
Safety	UL (UL 1950), CUL, C-Tick
LED indicators	Link, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	760 g
